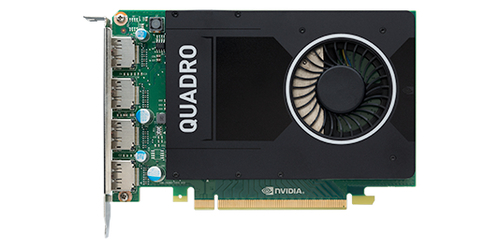

Lenovo M2000 4GB DDR5 NVIDIA Quadro M2000 GDDR5
Part number 4X60M28228
NVIDIA QUADRO M2000
- NVIDIA Quadro M2000 4 GB GDDR5
- 4096 x 2160 pixels 128 bit PCI Express x16 3.0
- DisplayPorts quantity: 4
- DirectX version: 12.0 OpenGL version: 4.5
- 75 W
- Manufacturer
- Lenovo
- Part number
- 4X60M28228
- Condition
- New
- Category
- System Components › Video & Capture Card
- 1GPA category
- Hardware
Overview
Design, iterate and deliver higher quality results in less time with the Quadro 2000 mid-range professional graphics solution. Delivering the industry’s best-in-class performance across leading CAD and DCC applications, Quadro 2000 provides an affordable, high performance experience that can transform how engineers, designers and animators work every day.
The revolutionary Quadro GPU architecture
The breakthrough NVIDIA® Fermi architecture tightly integrates advanced visualization and compute features delivering performance that greatly accelerates professional workflows.
Advanced industry solutions with cutting-edge capabilities, designed for professionals Quadro 2000 delivers advanced capabilities including 3D Vision™ Pro for the highest quality stereoscopic 3D environments, SLI Multi-OS to drive multiple Windows or Linux environments from a single workstation, and Mosaic Technology¹ which enables any application to scale across up to eight displays.
Supercharged professional applications
NVIDIA professional software technologies such as CUDA™ software and NVIDIA Application Acceleration Engines, and optimized drivers enable Quadro GPUs to further accelerate applications including SolidWorks, 3ds Max, AutoCAD, and many more.
Designed, built and engineered by NVIDIA to the highest standards of quality
Quadro solutions are designed, built and backed by NVIDIA to ensure the highest standards of quality, delivering industry leading performance, capabilities and reliability.
Specifications
| CUDA | Yes |
|---|---|
| CUDA cores | 768 |
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro M2000 |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 4 GB |
|---|---|
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory bandwidth (max) | 106 GB/s |
| Interface type | PCI Express x16 3.0 |
|---|---|
| DisplayPorts quantity | 4 |
| PhysX | No |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | 5.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| Dual Link DVI | No |
| Cooling type | Active |
|---|---|
| Number of fans | 1 fan(s) |
| Product colour | Black, Green |
| Power consumption (typical) | 75 W |
|---|
| Windows operating systems supported | Yes |
|---|
| Weight | 239 g |
|---|---|
| Length | 167.6 mm |
| Height | 111.2 mm |
| User guide | Yes |
|---|---|
| Manual | Yes |
| Drivers included | Yes |
| Sustainability certificates | ENERGY STAR |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
