Lenovo
Lenovo 4SG7A08868 network switch Managed L2/L3 Black
Part number 4SG7A08868
NE2552E 25GBE FLEX SWITCH
- Managed L2/L3 SNMP V1, V2, V3
- Quality of Service (QoS) support
- 10G support
- MAC address table: 103000 entries
- Access Control List (ACL)
- Manufacturer
- Lenovo
- Part number
- 4SG7A08868
- Condition
- New
- Category
- Accessories › Storage Accessories
- 1GPA category
- Hardware
Overview

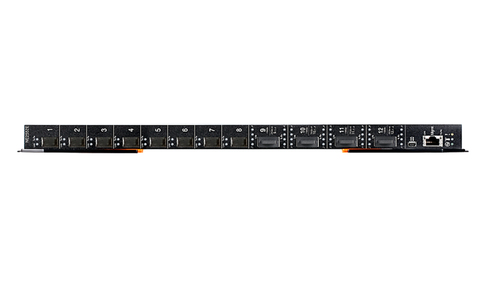

The Lenovo ThinkSystem NE2552E Flex Switch is an embedded switch module for Flex System that is designed for the data center to provide 10 Gb/25 Gb/50 Gb Ethernet server connectivity with 50 Gb/100 Gb Ethernet upstream links. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data center-grade buffers help keep traffic moving, while the numerous high-availability software features help provide high availability for business sensitive traffic.
Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4095 |
| MAC address table | 103000 entries |
|---|---|
| Static route | Yes |
| Number of static routes | 128 |
| DHCP features | DHCP relay |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | SSH |
| Multicast support | Yes |
|---|
| Management protocols | SNMP V1, V2, V3 |
|---|---|
| Routing protocols | BGP, OSPF |
| Product colour | Black |
|---|
| Mean time between failures (MTBF) | 300000 h |
|---|
| Width | 401 mm |
|---|---|
| Depth | 317 mm |
| Height | 30 mm |
| Weight | 3.7 kg |
| Certification | United States FCC Part 15, Class A Canada ICES-003, Class A Australia and New Zealand Class A Statement European Union Council Directive 2004/108/EC European Union Council Directive 2014/30/EU EN55022 Class A EN55024 Japan VCCI Class A Statement Korea KCC Class A Statement Russia Electromagnetic Interference (EMI) Class A Statement People's Republic of China Class A Electronic Emission Statement Taiwan Class A Compliance Statement |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
