Overview

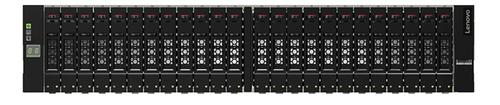

The Lenovo Storage D1212 and D1224 Disk Expansion Enclosures offer 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide simplicity, speed, scalability, security, and high availability for small to large businesses. The D1212 and D1224 deliver enterprise-class storage technology in a cost-effective solution with flexible drive configurations and RAID or JBOD (non-RAID) host connectivity.
Specifications
Storage
| Number of storage drives supported | 24 |
|---|
| Storage drive size | 2.5/3.5" |
|---|
| Supported storage drive interfaces | SAS |
|---|
| Hot-swap | Yes |
|---|
Ports & interfaces
| USB connectivity | No |
|---|
Design
| Product type | HDD/SSD enclosure |
|---|
| Product colour | Black |
|---|
| Rack mounting | Yes |
|---|
| Rack capacity | 2U |
|---|
| Compatible products | Lenovo ThinkSystem |
|---|
Power
| Power source type | AC |
|---|
| Power consumption (max) | 580 W |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 40 °C |
|---|
| Storage temperature (T-T) | -40 - 60 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 5 - 100% |
|---|
Weight & dimensions
| Width | 443 mm |
|---|
| Depth | 630 mm |
|---|
| Height | 88 mm |
|---|
| Weight | 24 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
