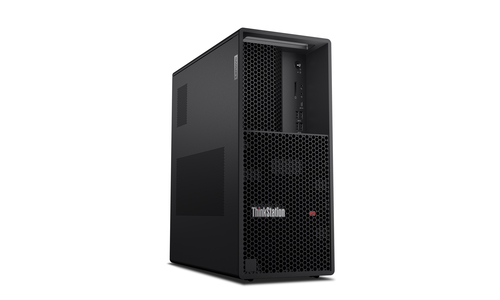

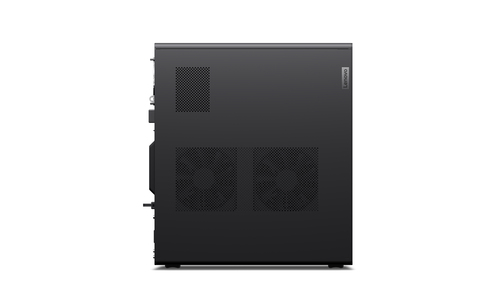

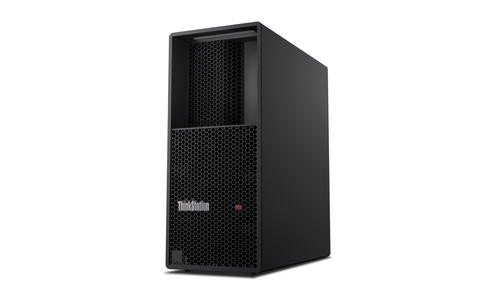

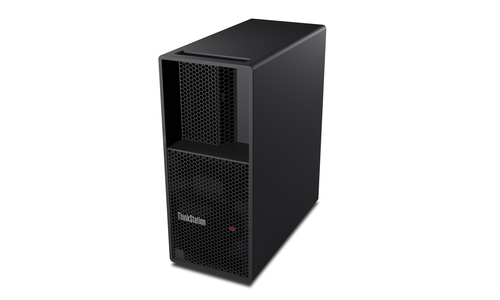

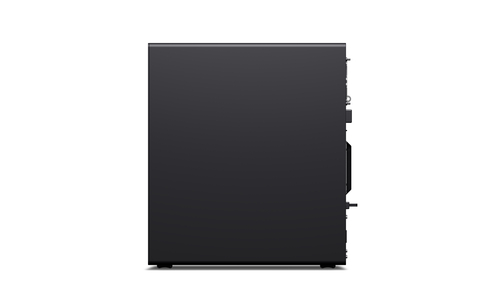

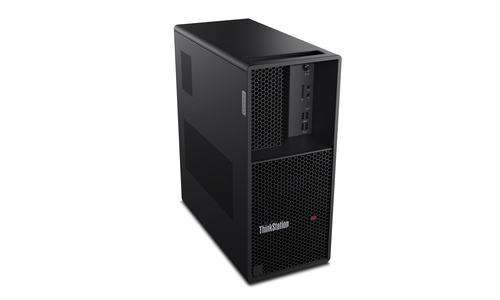

Lenovo ThinkStation P3 Tower Gen 2 Intel Core Ultra 9 285 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Workstation Black

Part number 30HT004KUS

THINKSTATION P3 TOWER GEN 2 CORE ULTRA 9 285 VPRO 4 6G

Windows 11 Pro
Intel Core Ultra 9 285 (36MB Cache)
32GB (5600MHz) DDR5-SDRAM (1 x 32) & 1000GB SSD

Manufacturer: Lenovo
Part number: 30HT004KUS
Condition: New
Category: Computer Systems › Workstations
1GPA category: Hardware

Overview

Workstation might, desktop price

Designed by engineers for engineers, the Lenovo ThinkStation P3 Tower offers all the workhorse capabilities of a workstation for the price of a desktop. Built for tasks that require superior power and performance, it's equipped with Intel® Core™ processors with Intel vPro®, and supports professional NVIDIA® discrete graphics.

Delivering power & performance

The ThinkStation P3 Tower’s chassis has an advanced thermal design to promote extra power and performance, without overheating. It also comes with a choice of operating systems, including Windows 11 Pro and Linux®. In short, the P3 gives you the compute power to execute your visions, time and time again.

Configure it any which way

With three onboard DisplayPorts, plus the ability to configure up to eight more, the ThinkStation P3 Tower can support up to 12 independent displays. It also comes with a choice of operating systems, including Windows 11 Pro and Red Hat® Enterprise Linux®. And with heaps of speedy memory and SSD storage, plus five open PCIe slots, this workstation can be configured to tackle your most exacting workflows. It also comes with a USB mouse and keyboard.

Mission-critical performance, made easy

At the heart of every Lenovo ThinkStation is reliability. Proven to run in extreme conditions, the ThinkStation P3 Tower also boasts an array of independent software vendor (ISV) certifications. It's the perfect workstation for designers, engineers, and students looking for versatility, flexibility, and breakthrough performance to breeze through heavy workloads.

See the complete list of ISV certifications.

Security you can count on

The ThinkStation P3 Tower is protected with ThinkShield, a suite of hardware and software that work together to safeguard your workstation and data. This includes the discrete Trusted Platform Module (TPM) 2.0 to encrypt sensitive data, as well as various programs to prevent unauthorized access to the BIOS, plus self-healing software if the BIOS is corrupted or maliciously attacked. For extra peace of mind, it also supports Windows firmware updates.

Specifications may vary depending upon region / model.

Specifications

Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	285
Processor cores	24
Processor threads	24
Processor boost frequency	5.6 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.4 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.9 GHz
Processor cache	36 MB
Processor cache type	Smart Cache
Processor base power	65 W
Maximum turbo power	182 W

Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Memory
Internal memory	32 GB
Maximum internal memory	256 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 32 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Memory channels	Dual-channel

Storage
Total storage capacity	1 TB
Storage media	SSD
Optical drive type	DVD±RW
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 5.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Card reader integrated	Yes
Compatible memory cards	SD

Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Performance
Motherboard chipset	Intel W880
Password protection	Yes
Password protection type	BIOS, Power on
BIOS type	UEFI
Trusted Platform Module (TPM)	Yes
Product type	Workstation
Built-in speaker(s)	Yes

Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
DisplayPorts quantity	3
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Line-out	Yes
Microphone in	Yes

Power
Power supply	750 W
80 PLUS certification	80 PLUS Platinum

Design
Chassis type	Tower
Volume	27 L
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software
Operating system language	ENG-UK, US English
Operating system installed	Windows 11 Pro

Display
Display included	No

Audio
Audio chip	Realtek ALC623-CG
Audio system	High Definition Audio
Number of speakers	1

Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m

Weight & dimensions
Width	180 mm
Depth	370 mm
Height	415 mm
Weight	14.4 kg

Packaging content
Mouse included	Yes
Mouse connectivity	Wired
Keyboard included	Yes

Certificates
Certification	ErP Lot 3 RoHS compliant TCO Certified, generation 10

Keyboard
Keyboard connectivity	Wired

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
