Lenovo

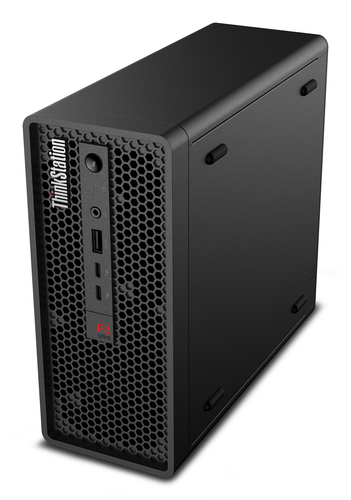

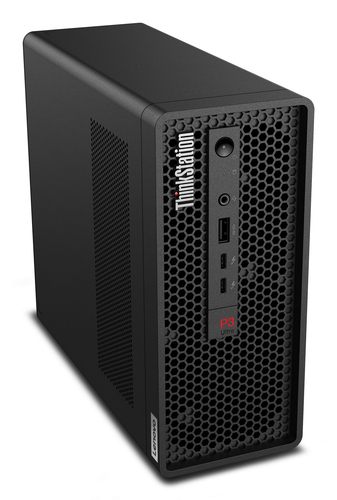

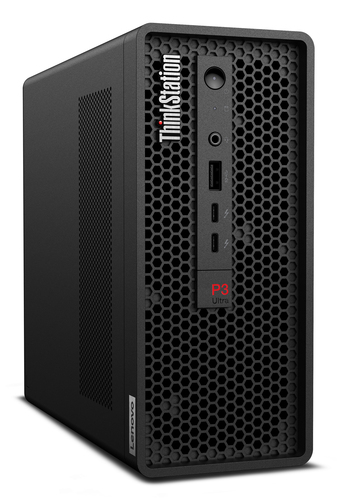

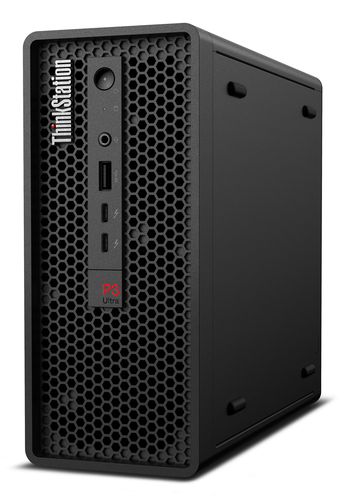

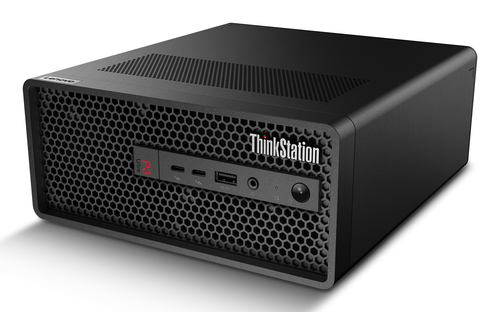

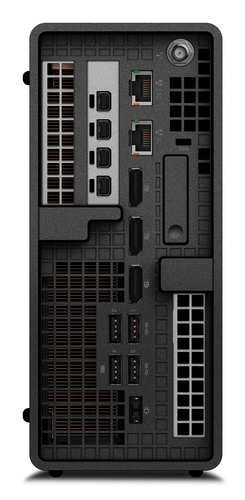

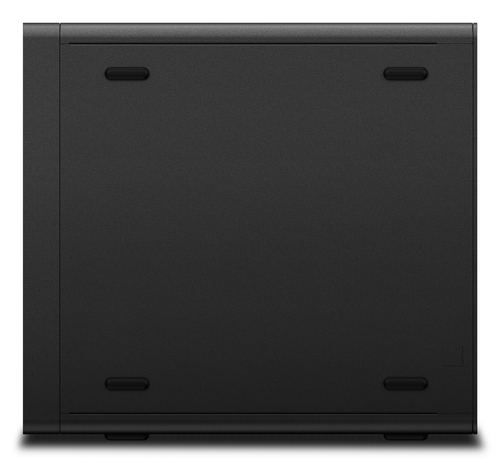

Lenovo ThinkStation P3 Ultra SFF Intel® Core™ i5 i5-14600 16 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A1000 Windows 11 Pro Workstation
Part number 30HA00AHUS
THINKSTATION P3 ULTRA CORE I5-14600 VPRO 3 9G 16GB 512GB S
- Intel Core i5-14600, 14C (6P + 8E)/20T, P-core 2.7/5.2GHz, E-core 2.0/3.9GHz, 24MB Intel Smart Cache
- 1x 16GB SODIMM DDR5-4800 Non-ECC
- 1x 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- 1x NVIDIA RTX A1000 8GB
- Windows 11 Pro
- Manufacturer
- Lenovo
- Part number
- 30HA00AHUS
- Condition
- New
- Category
- Computer Systems › Workstations
- 1GPA category
- Hardware
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor model | i5-14600 |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 5.2 GHz |
| Processor frequency | 2.7 GHz |
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 192 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x SO-DIMM |
| Memory clock speed | 4800 MHz |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Discrete graphics card | Yes |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics card memory | 8 GB |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Motherboard chipset | Intel W680 |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
|---|---|
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| DisplayPorts quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Power supply | 300 W |
|---|
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro |
| Audio chip | Realtek ALC897-Q |
|---|---|
| Audio system | High Definition Audio |
| Width | 87 mm |
|---|---|
| Depth | 223 mm |
| Height | 202 mm |
| Weight | 3.6 kg |
| Mouse included | Yes |
|---|---|
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
