Overview

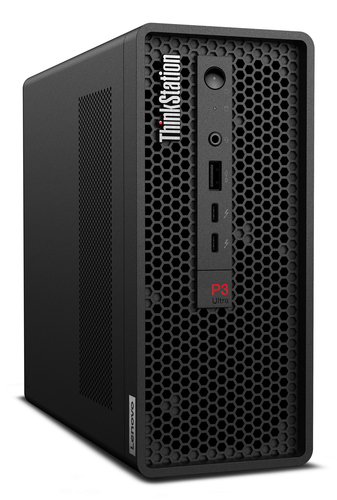

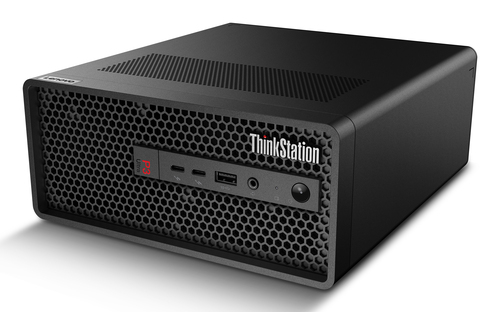

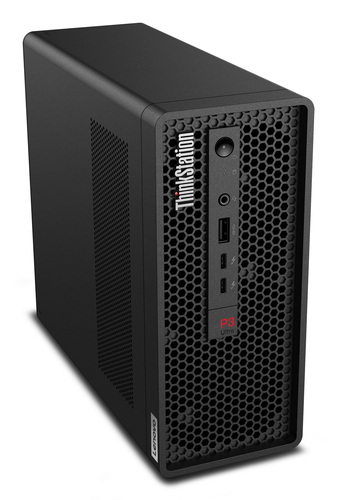

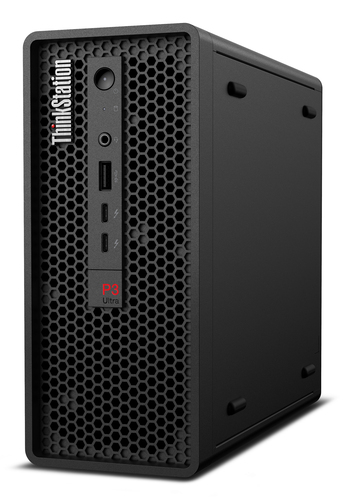

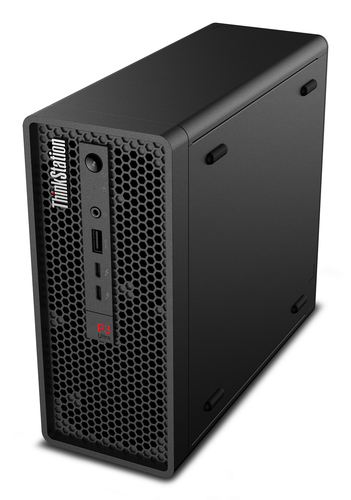

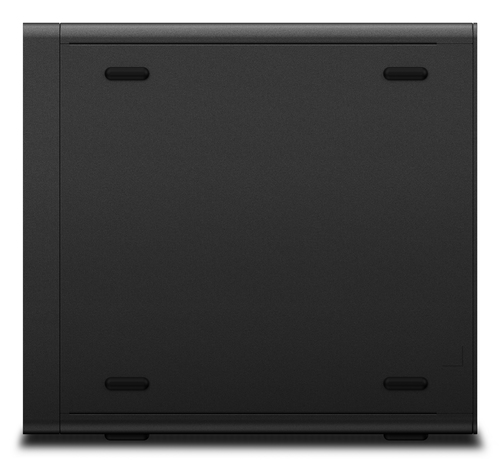

ThinkStation P3 Ultra SFF
Business professionals can level up their work experience and performance with this 3.6kg mini-tower powered by up to 14th Gen Intel Core i9 Processor. Enhance productivity with optional Wi-Fi 6E that enables faster connection speeds even in densely congested areas while with dual Thunderbolt 4 port, connect displays and share files at high speed. A slew of security features includes a discrete TPM 2.0 chipset, Kensington security slot, and BIOS security that keeps data well-protected.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Core™ i5 |
|---|
| Processor generation | 13th gen Intel® Core™ i5 |
|---|
| Processor model | i5-13600 |
|---|
| Processor cores | 14 |
|---|
| Processor threads | 20 |
|---|
| Processor boost frequency | 5 GHz |
|---|
| Performance cores | 6 |
|---|
| Efficient cores | 8 |
|---|
| Performance-core Max Turbo Frequency | 5 GHz |
|---|
| Efficient-core Max Turbo Frequency | 3.7 GHz |
|---|
| Performance-core base frequency | 2.7 GHz |
|---|
| Efficient-core base frequency | 2 GHz |
|---|
| Processor cache | 24 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Number of processors installed | 1 |
|---|
| Processor base power | 65 W |
|---|
| Maximum turbo power | 154 W |
|---|
Memory
| Internal memory | 32 GB |
|---|
| Maximum internal memory | 192 GB |
|---|
| Internal memory type | DDR5-SDRAM |
|---|
| Memory layout (slots x size) | 1 x 32 GB |
|---|
| Memory slots | 4x SO-DIMM |
|---|
| Memory clock speed | 4800 MHz |
|---|
| ECC | No |
|---|
| Non-ECC | Yes |
|---|
| Memory channels | Dual-channel |
|---|
| Memory data transfer rate | 4000 MT/s |
|---|
Storage
| Total storage capacity | 1 TB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Number of storage drives installed | 1 |
|---|
| Total SSDs capacity | 1 TB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 1 TB |
|---|
| SSD interface | PCI Express 4.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
| M.2 SSD size | 2280 (22 x 80 mm) |
|---|
| Card reader integrated | No |
|---|
Graphics
| Discrete graphics card | Yes |
|---|
| Discrete GPU manufacturer | NVIDIA |
|---|
| On-board graphics card | Yes |
|---|
| Discrete graphics card model | NVIDIA RTX A3000 |
|---|
| Discrete graphics card memory | 12 GB |
|---|
| Number of discrete graphics cards | 1 |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card family | Intel® UHD Graphics |
|---|
| On-board graphics card model | Intel UHD Graphics 770 |
|---|
| Graphics card Mini DisplayPort ports quantity | 4 |
|---|
Performance
| Motherboard chipset | Intel W680 |
|---|
| Password protection | Yes |
|---|
| Password protection type | BIOS, Power on, Supervisor |
|---|
| BIOS type | UEFI |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Product type | Workstation |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
| Built-in speaker(s) | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 1000,2500,100 Mbit/s |
|---|
| Cabling technology | 10/100/1000Base-T(X) |
|---|
| LAN controller | Intel® I210-AT, Intel I225-LM |
|---|
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
|---|
| WLAN controller manufacturer | Intel |
|---|
| WLAN controller model | Intel Wi-Fi 6E AX211 |
|---|
| Antenna type | 2x2 |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.1 |
|---|

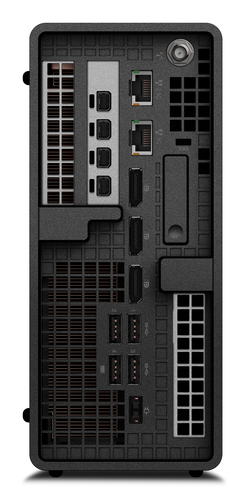

Ports & interfaces
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
|---|
| Intel® Thunderbolt 4 | Yes |
|---|
| Thunderbolt 4 ports quantity | 2 |
|---|
| DisplayPorts quantity | 3 |
|---|
| DisplayPort version | 1.2 |
|---|
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| Combo headphone/mic port | Yes |
|---|
Expansion slots
| PCI Express x8 (Gen 3.x) slots | 1 |
|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|
Power
| Power supply | 300 W |
|---|
| Power supply input voltage | 100 - 240 V |
|---|
| Power supply input frequency | 50/60 Hz |
|---|
Design
| Chassis type | Mini Tower |
|---|
| Volume | 3.9 L |
|---|
| Placement supported | Horizontal/Vertical |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Product colour | Black |
|---|
Software
| Operating system architecture | 64-bit |
|---|
| Operating system language | English |
|---|
| Operating system installed | Windows 11 Pro |
|---|
Processor special features
| CPU configuration (max) | 1 |
|---|
Display
| Display included | No |
|---|
Audio
| Audio chip | Realtek ALC897-Q |
|---|
| Audio system | High Definition Audio |
|---|
| Number of speakers | 1 |
|---|
Operational conditions
| Operating temperature (T-T) | 10 - 35 °C |
|---|
| Storage temperature (T-T) | -40 - 60 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 10 - 90% |
|---|
| Operating altitude | 0 - 3048 m |
|---|
| Non-operating altitude | 0 - 12192 m |
|---|
Weight & dimensions
| Width | 87 mm |
|---|
| Depth | 223 mm |
|---|
| Height | 202 mm |
|---|
| Weight | 3.6 kg |
|---|
Packaging content
| Mouse included | Yes |
|---|
| Mouse connectivity | Wired |
|---|
| Keyboard included | Yes |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | MIL-STD-810H |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
|---|
Keyboard
| Keyboard connectivity | Wired |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
