Lenovo

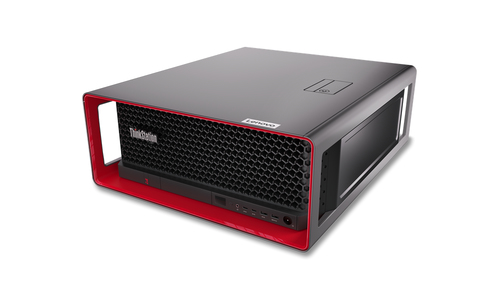

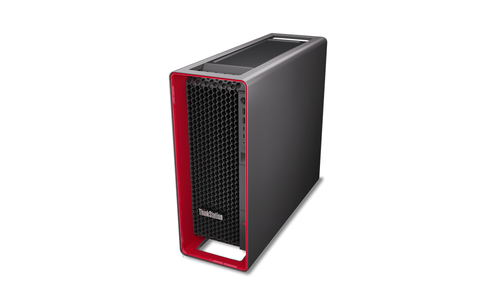

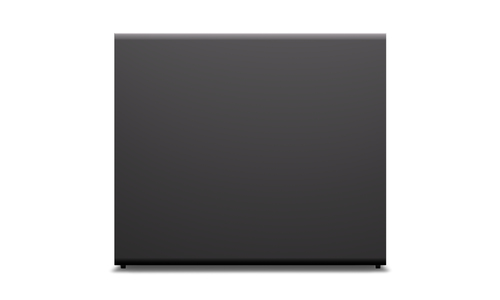

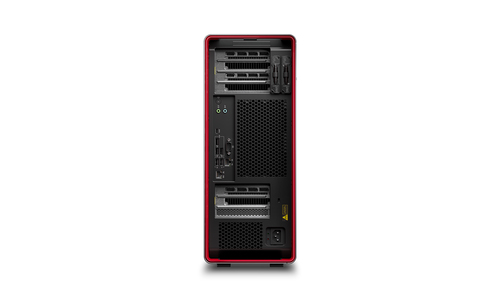

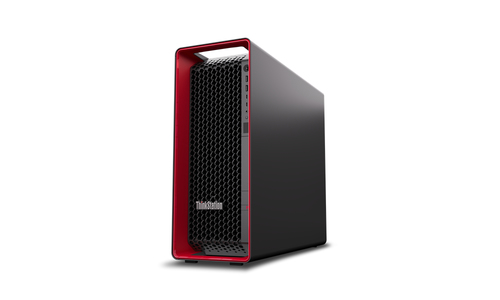

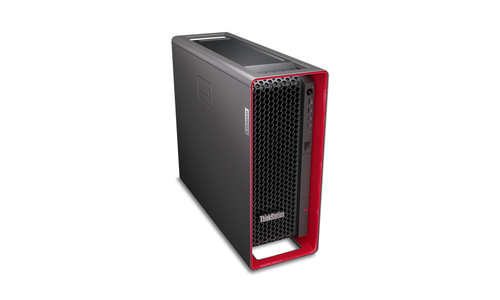

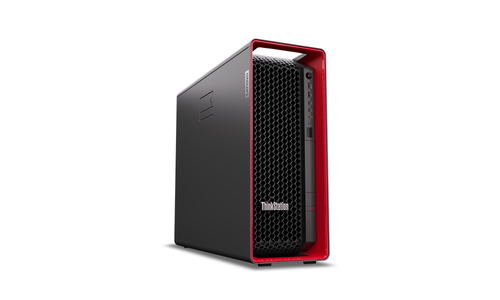

Lenovo ThinkStation P7 Intel Xeon W w9-3495X 128 GB DDR5-SDRAM 1 TB SSD NVIDIA Quadro T1000 Windows 11 Pro for Workstations Tower Workstation Black, Red
Part number 30F30015US
THINKSTATION P7 XEON W9-3495X 1.9G 128GB 1TB SSD W11P
- Windows 11 Pro for Workstations 64-bit
- Intel Xeon w9-3495X (105MB Cache, 1.9GHz)
- NVIDIA Quadro T1000 (8GB GDDR6)
- 128GB (4800MHz) DDR5-SDRAM (8 x 16) & 1000GB SSD
- Manufacturer
- Lenovo
- Part number
- 30F30015US
- Condition
- New
- Category
- Computer Systems › Workstations
- 1GPA category
- Hardware
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon W |
| Processor model | w9-3495X |
| Processor cores | 56 |
| Processor threads | 112 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 1.9 GHz |
| Performance cores | 56 |
| Processor cache | 105 MB |
| Processor cache type | Smart Cache |
| Processor base power | 350 W |
| Maximum turbo power | 420 W |
| Internal memory | 128 GB |
|---|---|
| Maximum internal memory | 1 TB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 8 x 16 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 4800 MHz |
| ECC | Yes |
| Memory channels | Octa-channel |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Discrete graphics card | Yes |
|---|---|
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA Quadro T1000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Mini DisplayPort ports quantity | 4 |
| Motherboard chipset | Intel W790 |
|---|---|
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
| Built-in speaker(s) | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,1000,100,10000 Mbit/s |
| LAN controller | Intel® I219-LM, Marvell AQtion AQC113C |
| Wi-Fi | No |
| Bluetooth | No |
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Power supply | 1400 W |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
| Chassis type | Tower |
|---|---|
| Volume | 39 L |
| Placement supported | Horizontal/Vertical |
| Product colour | Black, Red |
| Operating system architecture | 64-bit |
|---|---|
| Operating system language | English |
| Operating system installed | Windows 11 Pro for Workstations |
| Display included | No |
|---|
| Audio chip | Realtek ALC897-Q |
|---|---|
| Number of speakers | 1 |
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Width | 175 mm |
|---|---|
| Depth | 508 mm |
| Height | 440.4 mm |
| Weight | 24.5 kg |
| Mouse included | Yes |
|---|---|
| Keyboard included | Yes |
| Compliance certificates | RoHS |
|---|---|
| Certification | ISV |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
