Lenovo ThinkStation P340 Intel® Core™ i5 i5-10500T 32 GB DDR4-SDRAM 1 TB SSD NVIDIA® Quadro® P620 Windows 10 Pro Mini PC Workstation Black
Part number 30DF0014US
TOPSELLER THINKSTATION P340 TINY I510500TV 32G 1
- Windows 10 Pro 64-bit
- Intel Core i5-10500T (12MB Cache, 2.3GHz)
- NVIDIA Quadro P620 (2GB GDDR5)
- 32GB (2933MHz) DDR4-SDRAM & 1000GB SSD
- Manufacturer
- Lenovo
- Part number
- 30DF0014US
- Condition
- New
- Category
- Computer Systems › Workstations
- 1GPA category
- Hardware
Overview
Adaptable by design

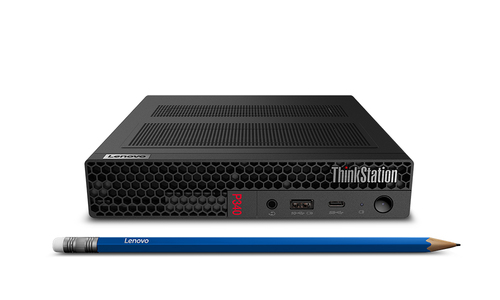

The stylish, compact ThinkStation P340 Tiny workstation fits just about anywhere and can be positioned horizontally or vertically. Mount this 1-liter device on a wall, behind a monitor, under a desk—even on a bookshelf. It goes wherever you want it to.
1 Tiny, up to 6 independent displays
With up to NVIDIA® Quadro® P1000 graphics, this workstation supports up to six independent displays. And it’s great for intensive apps with Independent Software Vendor (ISV) certifications from all the major vendors, such as Autodesk®, Bentley®, Dassault®, PTC®, and Siemens®.
Tiny but tough
While it’s stylish enough to put on display (but also small enough to be tucked away), the ThinkStation P340 Tiny workstation computer is tough. It’s been through and passed 18 MIL-STD-810G tests and can withstand the harshest conditions—allowing you to deploy anywhere.
Integrated security
Lenovo’s ThinkShield security solutions protect your device and data via hardware and software working together. A TPM 2.0 chip encrypts your passwords, while BIOS-based Smart USB Protection prevents unauthorized users from plugging in and accessing your files.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10500T |
| Processor cores | 6 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 2.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 25 W |
| Configurable TDP-down frequency | 1.7 GHz |
| Number of processors installed | 1 |
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2933 MHz |
| Non-ECC | Yes |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | NVMe, PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Discrete graphics card | Yes |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P620 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Motherboard chipset | Intel Q470 |
|---|---|
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DVI port | No |
| Power supply | 170 W |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Chassis type | Mini PC |
|---|---|
| Volume | 1 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Viewing window | No |
| Operating system architecture | 64-bit |
|---|---|
| Operating system installed | Windows 10 Pro |
| Intel 64 | Yes |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel Clear Video Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Audio chip | Realtek ALC233 |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 12192 m |
| Width | 37 mm |
|---|---|
| Depth | 182.9 mm |
| Height | 179 mm |
| Mouse included | Yes |
|---|---|
| Keyboard included | Yes |
| Compliance certificates | RoHS |
|---|
| Sustainability certificates | ENERGY STAR, EPEAT Silver, GREENGUARD |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
