Products › Computer Systems

Lenovo

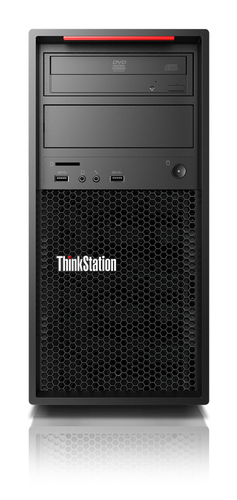

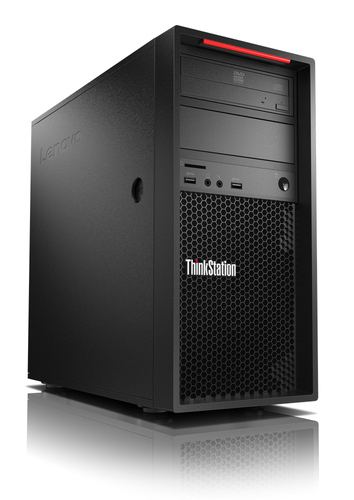

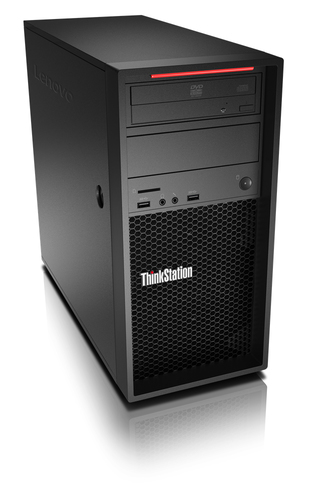

Lenovo ThinkStation P520c Intel Xeon W W-2235 16 GB DDR4-SDRAM 512 GB SSD NVIDIA RTX A5000 Windows 11 Pro for Workstations Tower Workstation Black

Part number 30BX00FXUS

TOPSELLER TS P520C XEON W-2235 3.8G 16GB 512GB SSD W11P

  • Windows 11 Pro for Workstations 64-bit
  • Intel Xeon W-2235 (8.25MB Cache, 3.8GHz)
  • NVIDIA RTX A5000 (24GB GDDR6)
  • 16GB DDR4-SDRAM & 512GB SSD
Manufacturer
Lenovo
Part number
30BX00FXUS
Condition
New
Category
Computer Systems › Workstations
1GPA category
Hardware

Overview

High-level performance without the high price

From large workloads to multitasking, the compact ThinkStation P520c breezes through it all. With cutting-edge processing, graphics, storage, and memory, this configurable 25L workstation is a solid workhorse. Energy efficient and extremely reliable, it's also ISV-certified and VR-ready. Equally impressive is the affordable price tag.

Real power at a reasonable price

For true processing power and blazing-fast visuals, power up the ThinkStation P520c. Fueled by the latest Intel® Xeon® processors and NVIDIA® Quadro® graphics, this compact 25L workhorse can help you to get the job done, quickly and easily. What's more, it comes at a very affordable price.

Configurable and reliable

The P520c can be configured to meet your specific needs, including up to 128 GB of memory and solid-state or hard disk drive storage options. One thing you won't have to worry about, however, is reliability, which is the cornerstone of every ThinkStation.

Enhanced flexible design

With two M.2 PCIe solid state drive slots embedded in the motherboard, you can enjoy blistering-fast storage speeds. What's more, the front FLEX module gives you a range of options and flexibility, including a media card reader and blazing-fast Intel® Thunderbolt™ 3 port.

Hassle-free, tool-free

Should you ever need to swap any components, there’s no need to worry about tools. Simply slide off the side panel and away you go. You may also wish to know that we can help automate many of the manual tasks associated with deploying new machines, from asset tagging to custom image loading.

Ready for anything, real or virtual

With virtual reality (VR), almost anything's possible—from revolutionary designs to stunning special effects to highly complex simulations. With the powerful P520c and top-of-the range, high-performance NVIDIA Quadro® graphics (optional), a truly immersive VR experience awaits.

Built-in peace of mind

Like every ThinkStation before it, the P520c has undergone rigorous testing under extreme conditions. It's also ISV-certified and boasts error-correcting code (ECC) memory, ensuring even greater accuracy and reliability.

A helping hand when you need it

You’ll be able to keep your P520c running at its peak thanks to Lenovo Workstation Diagnostics. Available for both desktop and smartphone, this intelligent app can help you diagnose and troubleshoot potential system issues by providing step-by-step guidance on optimal system performance. And should your machine ever fail to boot, an error code for additional assistance will be sent wirelessly to your smartphone.

In addition, there's Lenovo Performance Tuner. Free to download and easy to use, this software can help you fine-tune your workstation to get even more out of it.

Better for the planet—and your bottom line

The P520c meets some of the world's most comprehensive environmental standards. A GREENGUARD®-certified workstation, it has also been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. And as a result of its energy efficiency, the P520c can even help lower your utility bills.

Specifications

Processor
Processor manufacturerIntel
Processor familyIntel Xeon W
Processor modelW-2235
Processor cores6
Processor boost frequency4.6 GHz
Processor frequency3.8 GHz
Processor cache8.25 MB
Number of processors installed1
Memory
Internal memory16 GB
Internal memory typeDDR4-SDRAM
Memory slots4x DIMM
ECCYes
Storage
Total storage capacity512 GB
Storage mediaSSD
Optical drive typeNo
Number of storage drives installed1
Total SSDs capacity512 GB
Number of SSDs installed1
SSD capacity512 GB
SSD interfacePCI Express 3.0
NVMeYes
SSD form factorM.2
Card reader integratedYes
Graphics
Discrete graphics cardYes
Discrete graphics card modelNVIDIA RTX A5000
Discrete graphics card memory24 GB
Discrete graphics memory typeGDDR6
Number of discrete graphics cards1
Performance
Motherboard chipsetIntel® C422
Password protectionYes
Password protection typePower on
Trusted Platform Module (TPM)Yes
Product typeWorkstation
Network
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Wi-FiNo
BluetoothNo

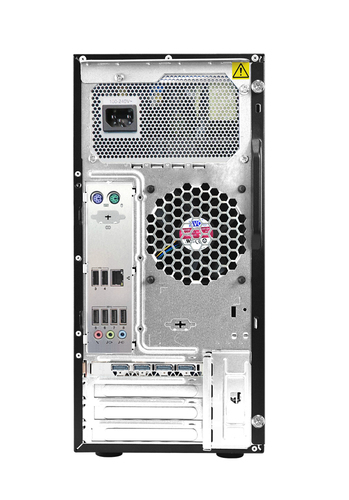

Ports & interfaces
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Line-outYes
Line-inYes
Microphone inYes
DVI portNo
PS/2 ports quantity2
Power
Power supply625 W
Power supply input voltage100 - 240 V
Power supply input frequency50 - 60 Hz
Design
Chassis typeTower
Volume25 L
Product colourBlack
Software
Operating system architecture64-bit
Operating system languageEnglish
Operating system installedWindows 11 Pro for Workstations
Processor special features
CPU configuration (max)1
Audio
Audio chipRealtek ALC662
Audio systemHigh Definition Audio
Operational conditions
Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)10 - 80%
Operating altitude-15.2 - 3048 m
Weight & dimensions
Width175 mm
Depth426 mm
Height376 mm
Weight14.5 kg
Packaging content
Mouse includedYes
Keyboard includedYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
