Lenovo ThinkStation P920 Intel® Xeon® Gold 6226 32 GB DDR4-SDRAM 1 TB SSD Windows 11 Pro for Workstations Tower Workstation Black
Part number 30BC007EUS
TOPSELLER TS P920 XEON GOLD 6226 2.7G 32GB 1TB SSD W11P
- Windows 11 Pro for Workstations
- Intel Xeon Gold 6226 (19.25MB Cache, 2.7GHz)
- 32GB (2933MHz) DDR4-SDRAM (2 x 16) & 1000GB SSD
- Manufacturer
- Lenovo
- Part number
- 30BC007EUS
- Condition
- New
- Category
- Computer Systems › Workstations
- 1GPA category
- Hardware
Overview
Power to burn
The ThinkStation P920 boasts the unbeatable performance of the latest Intel® Xeon® processors and up to NVIDIA® RTX™ A6000 or two NVIDIA® Quadro® RTX 8000 GPUs. That means it has the power and speed to handle your workloads with ease — including the toughest ISV-certified applications.
Unparalleled versatility

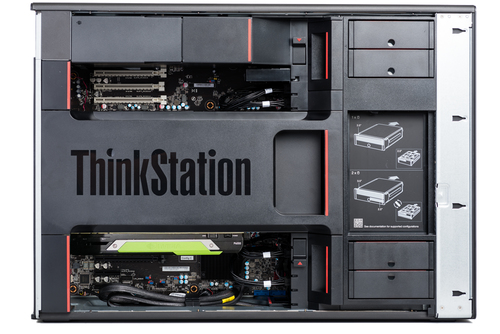

The ThinkStation P920 features a superior modular design, including Flex Trays that hold up to two drives per bay. Configure only the components you need for the ultimate in usability and savings.
Built to last
Patented Tri-Channel Cooling ensures each component receives cool air, using a unique air baffle. The ThinkStation P920 uses fewer fans and stays cooler than the competition, so it continues to run for less downtime and a bigger bottom line.
Easy to enhance
Intuitive red touch points guide you to quick and easy component changes — even to the motherboard and swappable power supply — without having to use a single tool. And best-of-breed cable management means no wires or plugs, and superior serviceability.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® Gold |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 6226 |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 2.7 GHz |
| Processor cache | 19.25 MB |
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 1 TB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 16x DIMM |
| Memory clock speed | 2933 MHz |
| ECC | Yes |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| Motherboard chipset | Intel® C621 |
|---|---|
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
| Built-in speaker(s) | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I210-AT, Intel® I219-LM |
| Wi-Fi | No |
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| Power supply | 1400 W |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
| Chassis type | Tower |
|---|---|
| Volume | 55 L |
| Placement supported | Vertical |
| Product colour | Black |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro for Workstations |
| Display included | No |
|---|
| Audio chip | Realtek ALC662 |
|---|---|
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Width | 200 mm |
|---|---|
| Depth | 620 mm |
| Height | 446 mm |
| Mouse included | Yes |
|---|---|
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Compliance certificates | RoHS |
|---|---|
| Certification | ISV GREENGUARD RoHS |
| Sustainability certificates | EPEAT Silver |
|---|
| Keyboard connectivity | Wired |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
