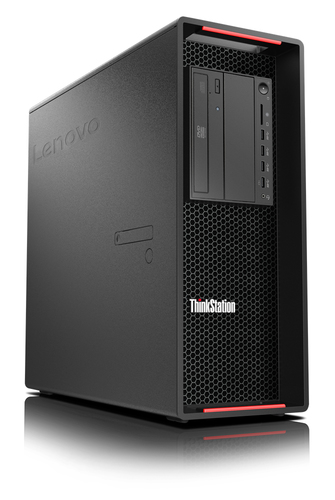

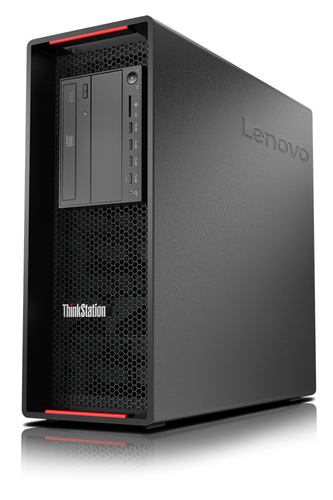

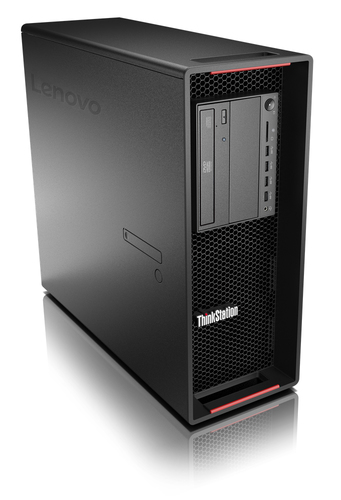

Lenovo ThinkStation P720 Intel Xeon Silver 4216 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro for Workstations Tower Workstation Black
Part number 30BA00K1US
TOPSELLER TS P720 XEON 4216 2.1G 16GB 512GB SSD W11P
- Windows 11 Pro for Workstations
- Intel Xeon Silver 4216 (22MB Cache, 2.1GHz)
- 16GB (2933 MHz) DDR4-SDRAM (1 x 16) & 512GB SSD
- Manufacturer
- Lenovo
- Part number
- 30BA00K1US
- Condition
- New
- Category
- Computer Systems › Workstations
- 1GPA category
- Hardware
Overview
Designed for users, engineered for IT managers
Powerful enough to render VR, this high-performance workstation lets you tap the speed and efficiency of Intel® Xeon® processing and NVIDIA® Quadro® graphics. It also comes with ISV certification from all the major vendors like Autodesk®, Bentley®, and Siemens®. To learn more about ISV certification, click here.Easy to set up, deploy, and manage, the ThinkStation P720 endures rigorous testing in extreme environmental conditions. So you can count on its reliability and durability. And with an exceptional design and build quality, it gives you increased serviceability along with decreased downtime. A win-win for any organization.What's more, fine-tuning and optimizing system performance is a breeze. Simply download and run the Lenovo Performance Tuner and Lenovo Workstation Diagnostics apps.
Packs a punch
Enjoy the increased performance of the latest Intel® Xeon® processors and up to NVIDIA® Quadro® RTX 8000 graphics. The Thinkstation P720 scales graphics memory and performance to drive the most demanding AI, rendering, and visual computing workloads with ease—including the toughest ISV-certified applications.
Unparalleled versatility

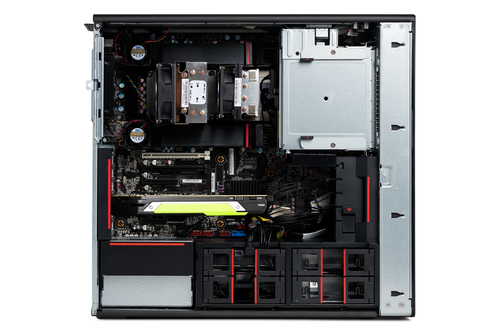

The P720 features superior modular design, including Flex Trays that hold up to two drives per bay. Configure only the components you need for the ultimate in usability and savings.
Faster memory, bigger storage
New, faster 2933 MHz DDR4 memory — up to 768 GB — has more bandwidth than the previous generation, for a speedy response. And bigger, faster storage options include an onboard M.2 PCIe solution, the capacity to handle up to 48TB of HDD storage, and support for up to 12 drives. That means the P720 can handle even the most demanding workloads. #2933 MHz requires Intel Xeon Gold or Platinum CPU
Built to last
Patented Tri-Channel Cooling ensures each component receives cool air. A smaller, redesigned air baffle offers protection for high-density memory configurations. And the ThinkStation P720 uses fewer fans and stays cooler than the competition, so it continues to run for less downtime and a higher bottom line.
Easy to enhance
Intuitive red touch points guide you to quick and easy component changes — even to the motherboard and swappable power supply — without having to use a single tool. And best-of-breed cable management means no wires or plugs, and superior serviceability.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4216 |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 22 MB |
| Number of processors installed | 1 |
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 768 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 12x DIMM |
| Memory clock speed | 2933 MHz |
| ECC | Yes |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| Motherboard chipset | Intel® C621 |
|---|---|
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Product type | Workstation |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I210-AT, Intel® I219-LM |
| Wi-Fi | No |

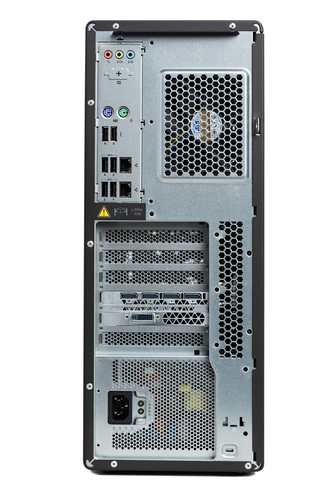

| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
| Power supply | 1000 W |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
| Chassis type | Tower |
|---|---|
| Volume | 36 L |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Viewing window | Yes |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro for Workstations |
| Display included | No |
|---|
| Audio chip | Realtek ALC662 |
|---|---|
| Audio system | High Definition Audio |
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 12192 m |
| Width | 175 mm |
|---|---|
| Depth | 485 mm |
| Height | 446 mm |
| Weight | 25.7 kg |
| Mouse included | Yes |
|---|---|
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Compliance certificates | RoHS |
|---|
| Sustainability certificates | GREENGUARD, ENERGY STAR, EPEAT Silver |
|---|
| Keyboard connectivity | Wired |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
