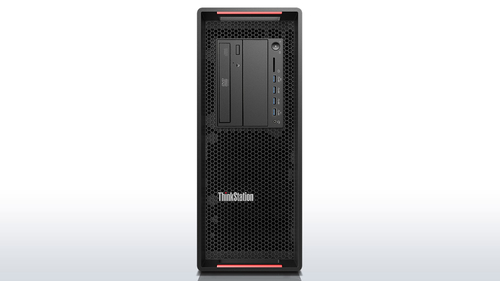

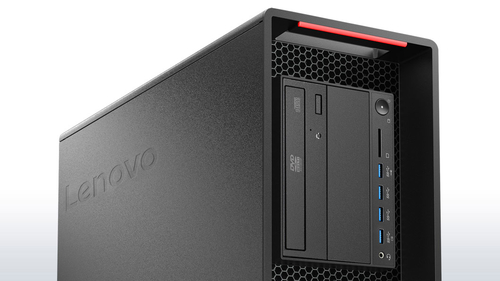

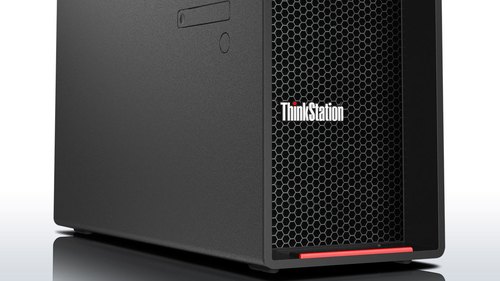

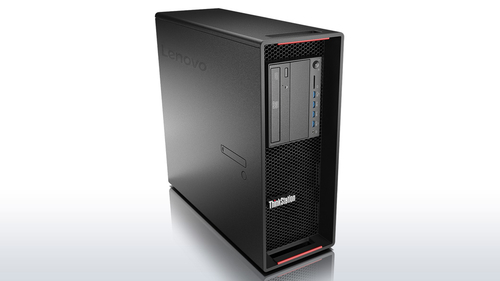

Lenovo ThinkStation P510 Intel® Xeon® E5 v4 E5-1650V4 16 GB DDR4-SDRAM 256 GB SSD Windows 7 Professional Tower Workstation Black
Part number 30B5005EUS
TOPSELLER THINKSTATION P510 DT E5-1650 V4 3.50G 16GB 256GB NO DVD
- Workstation Black 650 W
- Intel® Xeon® E5 v4 E5-1650V4 3.6 GHz Processor cores: 6
- 16 GB DDR4-SDRAM 2400 MHz
- 256 GB SSD DVD±RW Card reader integrated
- Ethernet LAN 10,100,1000 Mbit/s
- Windows 7 Professional 64-bit
- Manufacturer
- Lenovo
- Part number
- 30B5005EUS
- Condition
- New
- Category
- Computer Systems › Workstations
- 1GPA category
- Hardware
Overview
Usability. Reliability. Performance.
The Intel® Xeon® E5-1600 v4 Series Processor with Turbo Max 3.0 and NVIDIA® Quadro® graphics deliver powerful performance with ISV certifications, fully customizable storage, memory, power and I/O configurations.
Unmatched Reliability
ThinkStation P Series workstations run cooler than ever thanks to our advanced Tri-Channel cooling and innovative air baffle design. Priority Technical Support 24x7 make the P510 perfect for mission-critical tasks.
Innovative Features
Modular design makes tool-less upgrades a snap for fully configurable storage, multiple graphics cards and swappable power supplies.
No-hassle Deployment
Advanced Deployment Services include custom image load and creation, and asset tagging to protect your investment. Includes Lenovo Services for Enterprise Business Class Support.
Suitable for Tech-hungry Industries
Perfectly suited for any industry that requires reliability and performance. From manufacturing to media, design to database management, the ThinkStation P510 boasts Lenovo know-how and cutting edge technology inside at a winning price.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-1650V4 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| System bus rate | 0 GT/s |
| Bus type | QPI |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 140 W |
| Tcase | 69 °C |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Stepping | R0 |
| Maximum internal memory supported by processor | 1.53 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| ECC supported by processor | Yes |
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 256 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 8x DIMM |
| Memory clock speed | 2400 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | DVD±RW |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| RAID support | Yes |
| On-board graphics card | No |
|---|---|
| On-board graphics card model | Not available |
| Motherboard chipset | Intel® C612 |
|---|---|
| Product type | Workstation |
| Optical drives quantity | 1 |
|---|
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| USB 2.0 ports quantity | 4 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Power supply | 650 W |
|---|
| Chassis type | Tower |
|---|---|
| Placement supported | Vertical |
| Product colour | Black |
| Operating system architecture | 64-bit |
|---|---|
| Operating system installed | Windows 7 Professional |
| Optional operating system supplied | Windows 10 Pro |
| Intel 64 | Yes |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel HD Graphics | No |
| Intel Flex Memory Access | No |
| Intel® Smart Cache | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Processor package size | 45 x 52.5 mm |
| Supported instruction sets | AVX 2.0 |
| Processor code | SR2P7 |
| Scalability | 1S |
| Physical Address Extension (PAE) | Yes |
| Physical Address Extension (PAE) | 46 bit |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Processor ARK ID | 92994 |
| Display included | No |
|---|
| Audio chip | Realtek ALC662 |
|---|
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Width | 175 mm |
|---|---|
| Depth | 470 mm |
| Height | 440 mm |
| Weight | 22.2 kg |
| Mouse included | Yes |
|---|---|
| Keyboard included | Yes |
| Compliance certificates | RoHS |
|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
