Lenovo ThinkPad T14 Gen 5 (Intel) Intel Core Ultra 7 155U Laptop 35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
Part number 21ML0089US
LENOVO THINKPAD T14 GEN 5 14 WUXGA IPS NOTEBOOK INTEL CORE
- Intel Core Ultra 7 155U, 12C (2P + 8E + 2LPE)/14T, Max Turbo up to 4.8GHz, 12MB
- 14" WUXGA (1920x1200) IPS 400nits 45% NTSC 60Hz DBEF5
- 1x 16GB SO-DIMM DDR5-5600
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel Graphics
- Windows 11 Pro
- Manufacturer
- Lenovo
- Part number
- 21ML0089US
- Condition
- New
- Category
- Computer Systems › Portable Computers
- 1GPA category
- Hardware
Overview
AI-Driven Productivity — On the Go
Powered by Intel® Core™ Ultra processors, the 14ʺ Lenovo ThinkPad T14 Gen 5 laptop taps into AI-assisted productivity like never before. Enjoy optimized performance with workloads pushed to dedicated AI engines, including the low-power neural processing unit (NPU) that enables you to do more, unplugged. Choose Intel vPro®, for multilayer security, professional-grade performance, reliable stability, and complete management for IT. And, fuel your efficiency with Windows Copilot, launched with a single keystroke, to adjust PC settings or switch between projects.
Next-Level Viewing — Bold & Bright
Whether — watching or creating, experience superb content quality on the 14” ThinkPad T14 Gen 5 laptop. Its 3M optical solutions boost display efficiency, maximizing the brightness levels while reducing power usage. Plus narrow bezels along with Dolby Vision® ensure you’ll enjoy rich, vibrant visuals. Certified for Eyesafe® and TÜV Low Blue Light protection, it prevents eye fatigue during long work hours. Moreover, it’s slim, lightweight, and comes in two elegant colors Eclipse Black and Luna Grey to match your personal style.
Inclusive Design for Easy Access
Our redesigned ThinkPad keyboard now includes tactile markings to help visually impaired folks easily find the correct keys. Our TrackPad is even bigger now, at 120mm / 4.72ʺ. And our beloved red TrackPoint still lets you navigate — but with a double tap, it opens the ThinkPad TrackPoint Quick Menu to optimize audio-visuals, set alerts against muting, and even take notes with the Dictation Toolbar for handy speech-to-text transcription.
Go Calm, Cool, & Secure

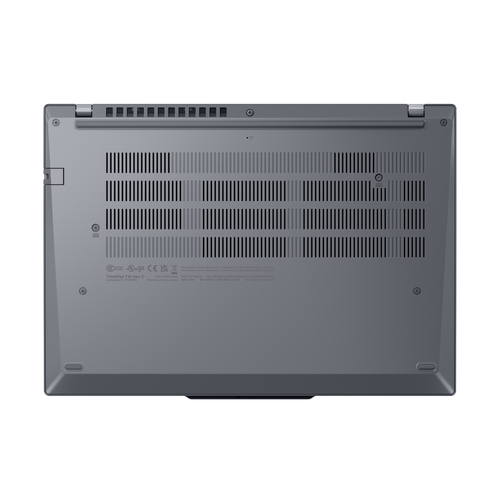

Level up your efficiency with advanced thermal management and adaptive battery enhancement tailored to your workflow. The ThinkPad T14 Gen 5 laptop comes equipped with dual fans and strategically placed rear air vents to ensure optimal cooling efficiency while you crunch your computing tasks. And, adapting to your workload, it extends battery life when you need it the most. Plus, it includes ThinkShield security for comprehensive data protection and comes with an optional match-on-chip fingerprint reader integrated with the power button to enable secure device access.
Simplified Swaps & Repairs
Engineered to endure, the ThinkPad T14 Gen 5 laptop is designed for easy upgrades with swappable components. You can easily replace or repair your system memory, SSD, battery, keyboard, and WWAN with convenient customer replaceable units (CRUs) even without tech expertise. In fact, for its ease of maintenance and remarkable do-it-yourself serviceability, this laptop boasts an industry-leading 9.3/10 on the iFixit Repairability Score. So, whether you wish to upgrade components or extend your device’s lifespan, you can trust our support services to keep your system and your business — up and running.
Built Strong, Stays Strong
We use the US Department of Defense's MIL-STD-810H to create a balance of reliability and durability for ThinkPad laptops. Meeting or exceeding 12 standards, 26 procedures, and 200+ quality checks ensure that these devices run in extreme conditions, including harsh variables like Arctic wilderness, desert dust storms, extreme temps, pressure, humidity, vibration, and more. What’s more, while the ThinkPad T14 Gen 5 is built for durability, it’s also engineered to be power efficient with an ENERGY STAR® 8.0 certification.
Specifications may vary depending upon region / model.
Specifications
| Product type | Laptop |
|---|---|
| Product colour | Grey |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Display diagonal | 35.6 cm (14") |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 400 cd/m² |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Maximum refresh rate | 60 Hz |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 155U |
| Processor cores | 12 |
| Processor threads | 14 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 57 W |
| Neural processor unit (NPU) | Intel AI Boost |
|---|---|
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
| Discrete graphics card model | Not available |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Audio chip | Realtek ALC3287 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera resolution (numeric) | 5 MP |
|---|---|
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Near Field Communication (NFC) | No |
| WWAN | Not installed |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| Motherboard chipset | Intel SoC |
|---|
| Pointing device | ThinkPad UltraNav |
|---|---|
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Operating system architecture | 64-bit |
|---|---|
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Battery capacity | 52.5 Wh |
| AC adapter power | 65 W |
|---|---|
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | No |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
|---|
| Width | 315.9 mm |
|---|---|
| Depth | 223.7 mm |
| Height | 17.7 mm |
| Weight | 1.43 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
