Overview
Unlock the Power of Versatility

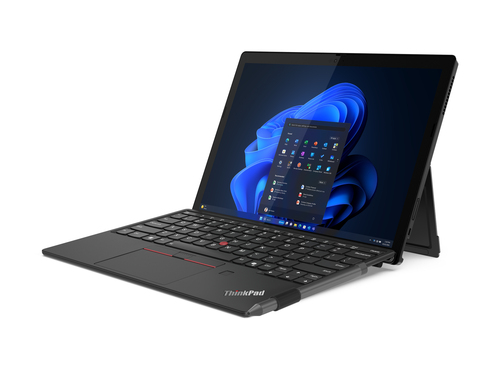

- Seamlessly shift between laptop & tablet modes

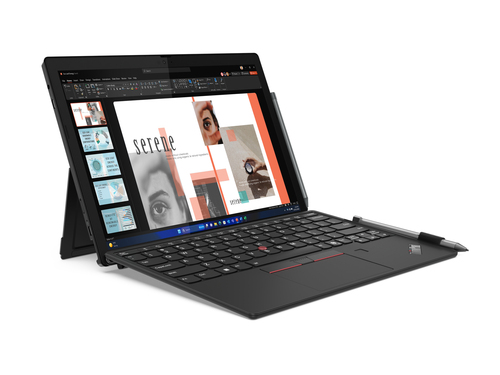

- Detachable folio keyboard with TrackPoint
- Uninterrupted productivity with long battery life
- Optimal performance with integrated AI engine
Specifications
Design
| Product type | Hybrid (2-in-1) |
|---|
| Product colour | Black |
|---|
| Form factor | Convertible (Detachable) |
|---|
Display
| Display diagonal | 31.2 cm (12.3") |
|---|
| Display resolution | 1920 x 1280 pixels |
|---|
| Touchscreen | Yes |
|---|
| Panel type | IPS |
|---|
| LED backlight | Yes |
|---|
| Display brightness | 400 cd/m² |
|---|
| RGB colour space | sRGB |
|---|
| Colour gamut | 100% |
|---|
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core Ultra 7 |
|---|
| Processor generation | Intel® Core™ Ultra (Series 1) |
|---|
| Processor model | 164U |
|---|
| Processor cores | 12 |
|---|
| Processor threads | 14 |
|---|
| Processor boost frequency | 4.8 GHz |
|---|
| Performance cores | 2 |
|---|
| Efficient cores | 8 |
|---|
| Low Power Efficient-cores | 2 |
|---|
| Performance-core Max Turbo Frequency | 4.8 GHz |
|---|
| Efficient-core Max Turbo Frequency | 3.8 GHz |
|---|
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
|---|
| Performance-core base frequency | 1.1 GHz |
|---|
| Efficient-core base frequency | 0.7 GHz |
|---|
| Low Power Efficient-core Base Frequency | 400 MHz |
|---|
| Processor cache | 12 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Processor base power | 9 W |
|---|
| Maximum turbo power | 30 W |
|---|
Neural processor unit (NPU)
| Neural processor unit (NPU) | Intel AI Boost |
|---|
| Maximum frequency NPU | 1.4 GHz |
|---|
| Sparsity support | Yes |
|---|
| Windows Studio effects support | Yes |
|---|
| AI datatype support on NPU | FP16, FP32, Int8 |
|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
|---|
Memory
| Internal memory | 32 GB |
|---|
| Internal memory type | LPDDR5x-SDRAM |
|---|
| Memory clock speed | 6400 MHz |
|---|
| Maximum internal memory | 32 GB |
|---|
Storage
| Total storage capacity | 512 GB |
|---|
| Storage media | SSD |
|---|
| Total SSDs capacity | 512 GB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 512 GB |
|---|
| SSD interface | PCI Express 4.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
| Optical drive type | No |
|---|
Graphics
| Discrete graphics card model | Not available |
|---|
| On-board graphics card | Yes |
|---|
| On-board GPU manufacturer | Intel |
|---|
| Discrete graphics card | No |
|---|
| On-board graphics card family | Intel® Graphics |
|---|
| On-board graphics card model | Intel® Graphics |
|---|
Audio
| Number of built-in speakers | 2 |
|---|
| Speaker power | 1 W |
|---|
| Built-in microphone | Yes |
|---|
| Number of microphones | 2 |
|---|
Camera
| Infrared (IR) camera | Yes |
|---|
| Privacy camera | Yes |
|---|
| Privacy type | Privacy shutter |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
|---|
| Mobile network connection | No |
|---|
| Antenna type | 2x2 |
|---|
| WLAN controller model | Intel Wi-Fi 6E AX211 |
|---|
| WLAN controller manufacturer | Intel |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.3 |
|---|
| Near Field Communication (NFC) | No |
|---|
| WWAN | Not installed |
|---|
Ports & interfaces
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| Thunderbolt 4 ports quantity | 1 |
|---|
| Intel® Thunderbolt 4 | Yes |
|---|
| Combo headphone/mic port | Yes |
|---|
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Numeric keypad | No |
|---|
| Keyboard backlit | Yes |
|---|
Software
| Operating system architecture | 64-bit |
|---|
| Operating system language | English |
|---|
| Operating system installed | Windows 11 Pro |
|---|
Battery
| Battery capacity | 42 Wh |
|---|
Power
| AC adapter power | 45 W |
|---|
| USB Type-C charging port | Yes |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
Security
| Fingerprint reader | Yes |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
Certificates
| Certification | ENERGY STAR,TCO,RoHS |
|---|
Weight & dimensions
| Width | 283.3 mm |
|---|
| Depth | 203.5 mm |
|---|
| Height | 8.8 mm |
|---|
| Weight | 760 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|

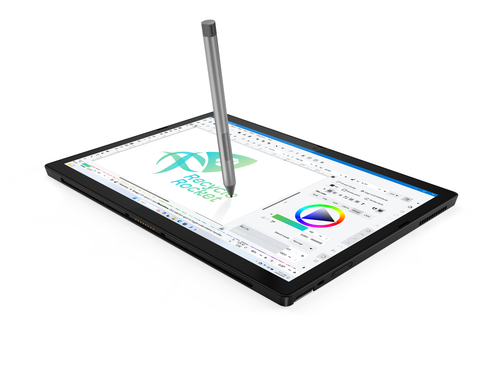

| Stylus pen | Yes |
|---|
