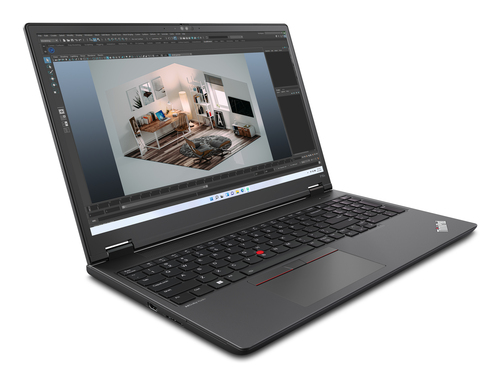

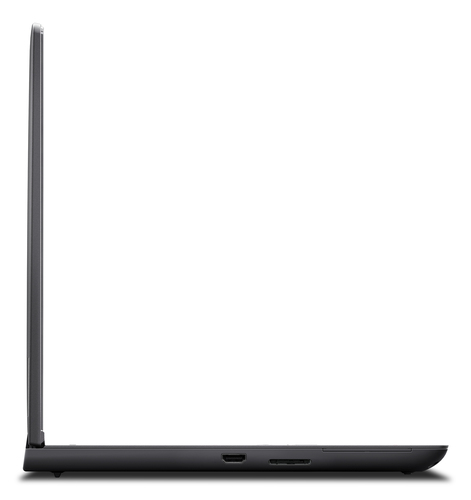

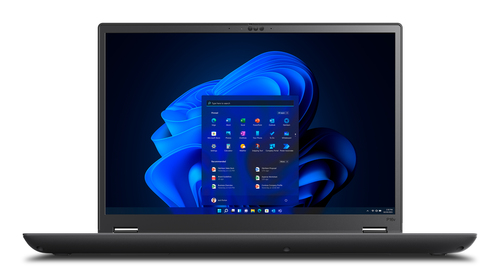

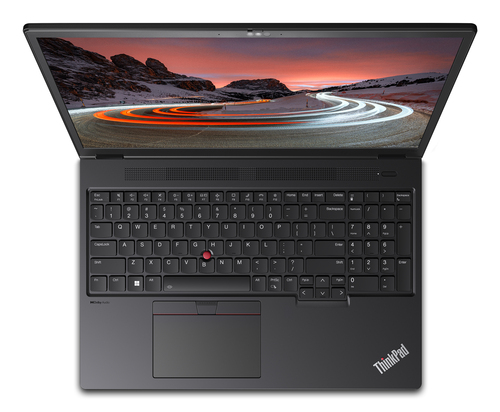

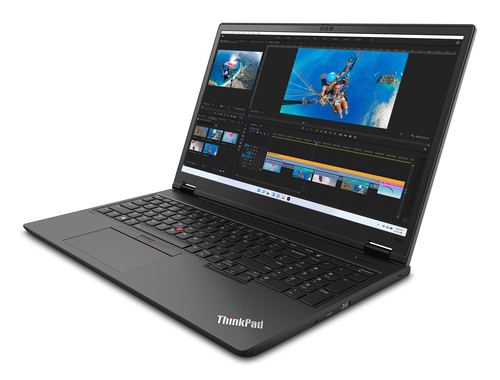

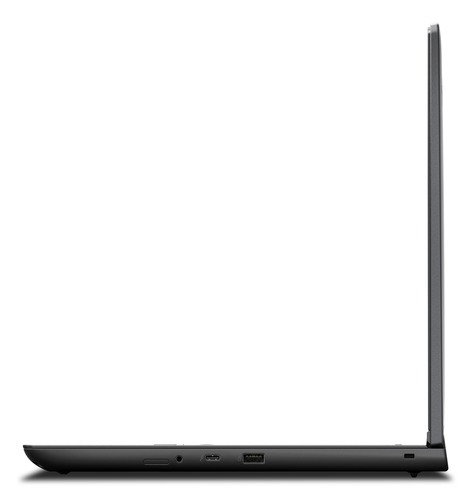

Lenovo ThinkPad P16v Gen 2 (Intel) Intel Core Ultra 7 155H Mobile workstation 40.6 cm (16") WQUXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 1000 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro Black English
Part number 21KX001WUS
THINKPAD P16V G2 CORE ULTRA 7 155H 3.8G 32GB 1TB SSD 16IN NT W11P
- Up to Intel® Core™ Ultra 9 185H
- Up to Windows® 11 Pro
- Up to NVIDIA® RTX 3000 Ada Generation Laptop GPU
- Up to 16.0" WQUXGA (3840x2400) IPS, 800nits, 100% DCI-P3, TÜV Low Blue Light, Eyesafe® Certified 2.0, X-Rite® Factory Color Calibration, Dolby Vision®, DisplayHDR™ 400
- Manufacturer
- Lenovo
- Part number
- 21KX001WUS
- Condition
- New
- Category
- Computer Systems › Portable Computers
- 1GPA category
- Hardware
Overview
ThinkPad P16v Gen 2
The all-new ThinkPad P16v Gen 2 balances extreme power, optimum portability and seamless user experience to accelerate workflows. The Intel® Core™ Ultra H Series processor marries productivity and experiential wow of AI without the worry of performance lags and battery drain. The optional NVIDIA® RTX graphics boosts your creation- from editing high-resolution videos to running complex AI simulations. An impressive 90Wh battery and Rapid Charge support elevates productivity, while the MIL-SPEC durability shields it from the everyday knocks and bumps.
Let your imagination run wild on the stunning WUXGA IPS screen that presents clear, pixel-sharp images every time without fail. The cinema-grade 100% DCI-P3 color gamut makes your visuals appear vivid, color-corrected and more life-like. The TÜV Low Blue Light certification ensures flicker-free display and reduced eye strain during long hours at work.
With ample up to 96GB DDR5 memory, users can run heavy datasets, spreadsheets and multiple resource-intensive applications simultaneously without experiencing significant slowdowns or performance bottlenecks. Plus, the up to 4TB SSD storage offers quicker loading times for statistical software applications
Intel® Arc Graphics and NVIDIA RTX Graphics offer substantial graphics processing power, which is crucial for tasks such as rendering 3D models, applying complex filters and effects, and handling high-resolution images. This enables Photoshop users to work with intricate designs and detailed images without experiencing lag or slowdowns.
Specifications
| Colour name | Black |
|---|---|
| Product type | Mobile workstation |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Display diagonal | 40.6 cm (16") |
|---|---|
| Display resolution | 3840 x 2400 pixels |
| Touchscreen | No |
| HD type | WQUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 800 cd/m² |
| RGB colour space | DCI-P3 |
| Colour gamut | 100% |
| Low Blue Light technology | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 400, Dolby Vision |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 155H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Neural processor unit (NPU) | Intel AI Boost |
|---|---|
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, FP32, Int8 |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 96 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 5600 MT/s |
| ECC | No |
| Non-ECC | Yes |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Discrete GPU manufacturer | NVIDIA |
|---|---|
| Discrete graphics card model | NVIDIA RTX 1000 Ada |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | Yes |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| Audio chip | Realtek ALC3287 |
|---|---|
| Audio system | High Definition Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 5 MP |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Mobile network generation | 5G |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Near Field Communication (NFC) | No |
| WWAN | Upgradable |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|---|
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| Motherboard chipset | Intel SoC |
|---|
| Pointing device | ThinkPad UltraNav |
|---|---|
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Operating system architecture | 64-bit |
|---|---|
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Battery capacity | 90 Wh |
| AC adapter power | 170 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Compliance certificates | RoHS, TÜV mark |
|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
