Overview

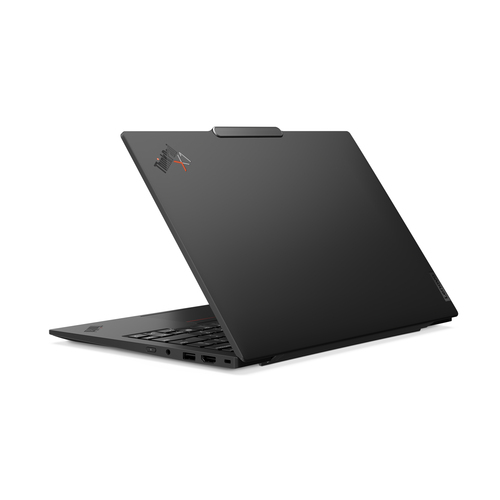

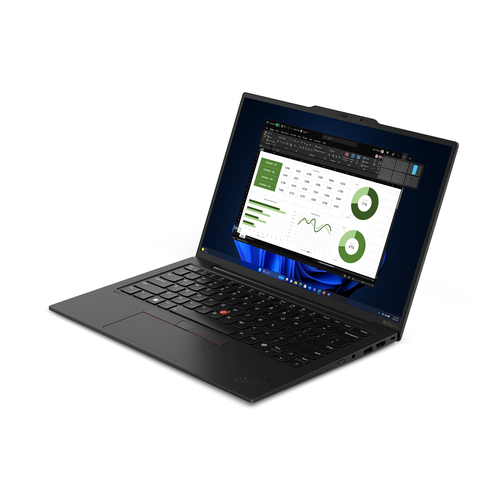

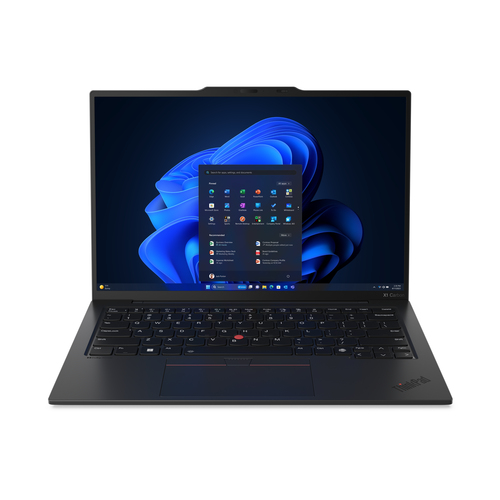

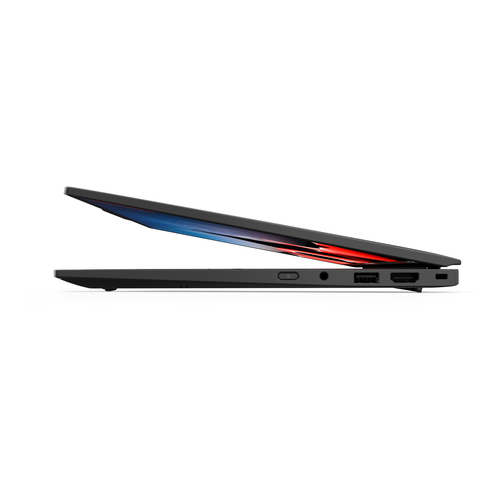

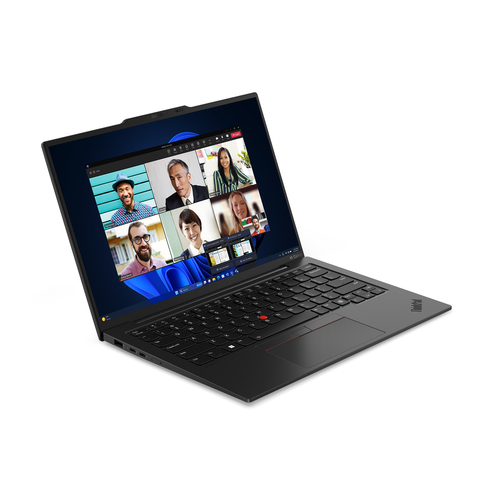

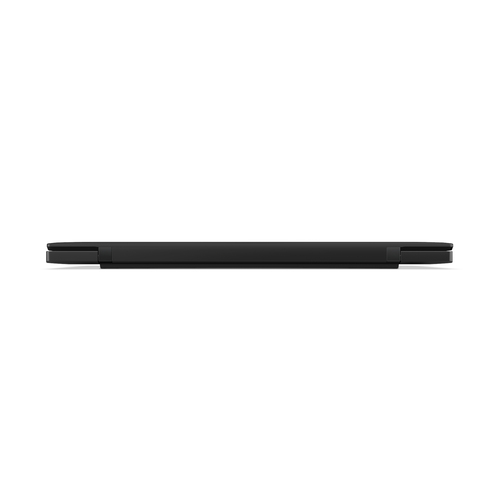

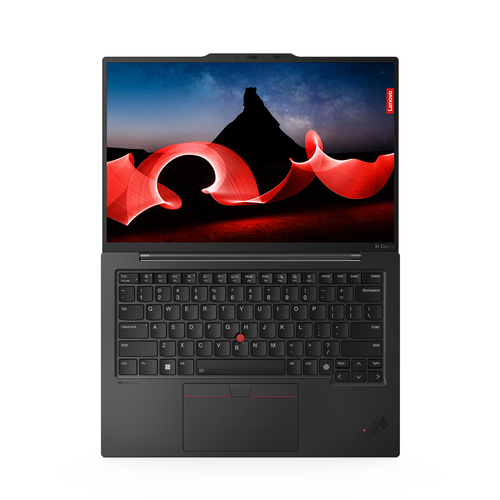

ThinkPad X1 Carbon Gen 12
Introducing the next-gen ThinkPad X1 Carbon - featuring powerful Intel® Core™ Ultra processors, designed to enhance graphics performance and elevate AI capabilities. Compared to its predecessors, integrated Intel® Arc Graphics deliver 2x performance boost, ensuring seamless workflows, enriched visual experience, and maximum encoding speed without any slowdown. Experience optimized performance with 40% lower SoC power consumption, leading to more productivity on a single charge with a 57 Whr battery, and a cooler, quieter PC during extended work sessions.
Specifications
Design
| Colour name | Black, Paint |
|---|
| Product type | Laptop |
|---|
| Product colour | Black |
|---|
| Form factor | Clamshell |
|---|
| Housing material | Aluminium, Carbon fibre |
|---|
Display
| Display diagonal | 35.6 cm (14") |
|---|
| Display resolution | 1920 x 1200 pixels |
|---|
| Touchscreen | No |
|---|
| HD type | WUXGA |
|---|
| Panel type | IPS |
|---|
| Native aspect ratio | 16:10 |
|---|
| Anti-glare screen | Yes |
|---|
| Display brightness | 400 cd/m² |
|---|
| RGB colour space | sRGB |
|---|
| Colour gamut | 100% |
|---|
| Maximum refresh rate | 60 Hz |
|---|
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core Ultra 5 |
|---|
| Processor generation | Intel® Core™ Ultra (Series 1) |
|---|
| Processor model | 135U |
|---|
| Processor cores | 12 |
|---|
| Processor threads | 14 |
|---|
| Processor boost frequency | 4.4 GHz |
|---|
| Performance cores | 2 |
|---|
| Efficient cores | 8 |
|---|
| Low Power Efficient-cores | 2 |
|---|
| Performance-core Max Turbo Frequency | 4.4 GHz |
|---|
| Efficient-core Max Turbo Frequency | 3.6 GHz |
|---|
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
|---|
| Performance-core base frequency | 1.6 GHz |
|---|
| Efficient-core base frequency | 1.1 GHz |
|---|
| Low Power Efficient-core Base Frequency | 700 MHz |
|---|
| Processor cache | 12 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Processor base power | 15 W |
|---|
| Maximum turbo power | 57 W |
|---|
Neural processor unit (NPU)
| Neural processor unit (NPU) | Intel AI Boost |
|---|
| Sparsity support | Yes |
|---|
| Windows Studio effects support | Yes |
|---|
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
|---|
Memory
| Internal memory | 16 GB |
|---|
| Internal memory type | LPDDR5x-SDRAM |
|---|
| Memory clock speed | 6400 MHz |
|---|
| Memory form factor | On-board |
|---|
| Maximum internal memory | 16 GB |
|---|
Storage
| Total storage capacity | 1 TB |
|---|
| Storage media | SSD |
|---|
| Total SSDs capacity | 1 TB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 1 TB |
|---|
| SSD interface | PCI Express 4.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
| M.2 SSD size | 2280 (22 x 80 mm) |
|---|
| Optical drive type | No |
|---|
| Card reader integrated | No |
|---|
Graphics
| Discrete graphics card model | Not available |
|---|
| On-board graphics card | Yes |
|---|
| On-board GPU manufacturer | Intel |
|---|
| Discrete graphics card | No |
|---|
| On-board graphics card family | Intel® Graphics |
|---|
| On-board graphics card model | Intel® Graphics |
|---|
Audio
| Audio chip | Realtek ALC3306 |
|---|
| Audio system | High Definition Audio |
|---|
| Number of built-in speakers | 2 |
|---|
| Speaker power | 2 W |
|---|
| Built-in microphone | Yes |
|---|
| Number of microphones | 2 |
|---|
Camera
| Front camera | Yes |
|---|
| Front camera resolution | 1920 x 1080 pixels |
|---|
| Front camera HD type | Full HD |
|---|
| Infrared (IR) camera | Yes |
|---|
| Privacy camera | Yes |
|---|
| Privacy type | Privacy shutter |
|---|
Network
| 4G standard | LTE |
|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
|---|
| Mobile network connection | No |
|---|
| Antenna type | 2x2 |
|---|
| WLAN controller model | Intel Wi-Fi 6E AX211 |
|---|
| WLAN controller manufacturer | Intel |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.3 |
|---|
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.1 |
|---|
| Intel® Thunderbolt 4 | Yes |
|---|
| Combo headphone/mic port | Yes |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
| USB Sleep-and-Charge | Yes |
|---|
Performance
| Motherboard chipset | Intel SoC |
|---|
Keyboard
| Pointing device | Trackpad |
|---|
| Numeric keypad | No |
|---|
| Keyboard backlit | Yes |
|---|
| Spill-resistant keyboard | Yes |
|---|
| Keyboard layout | QWERTY |
|---|
| Keyboard language | English |
|---|
Software
| Operating system architecture | 64-bit |
|---|
| Operating system language | English |
|---|
| Operating system installed | Windows 11 Pro |
|---|
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|
| Battery capacity | 57 Wh |
|---|
Power
| AC adapter power | 65 W |
|---|
| AC adapter frequency | 50/60 Hz |
|---|
| AC adapter input voltage | 100 - 240 V |
|---|
| USB Type-C charging port | Yes |
|---|
Security
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Fingerprint reader | Yes |
|---|
| Smart card reader | No |
|---|
| Windows Hello | Yes |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
| Password protection | Yes |
|---|
| Password protection type | BIOS, SSD, Supervisor, User |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|
| Storage temperature (T-T) | 5 - 43 °C |
|---|
| Operating relative humidity (H-H) | 8 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Maximum shipping altitude | 3048 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
