Lenovo

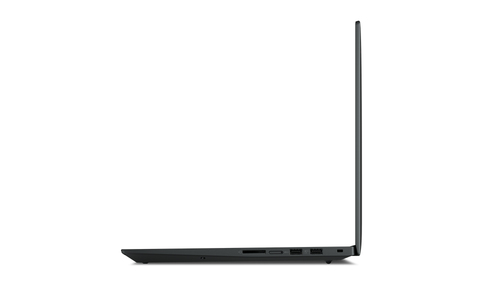

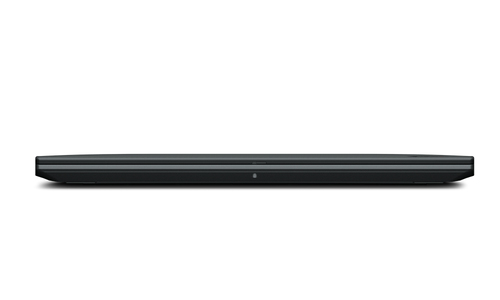

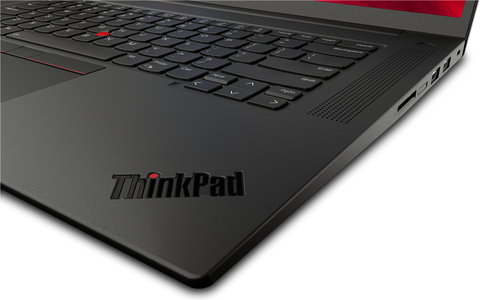

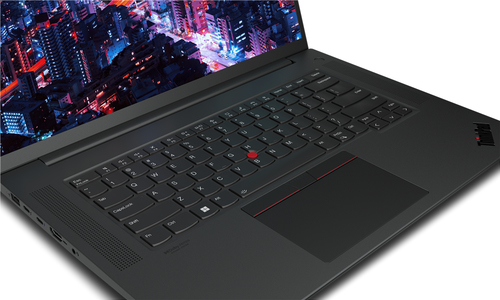

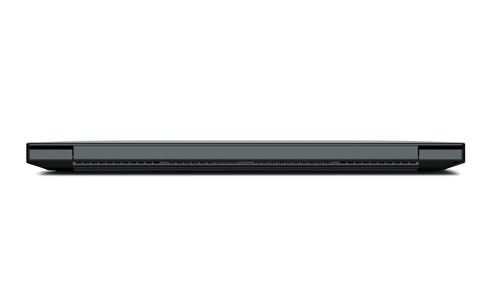

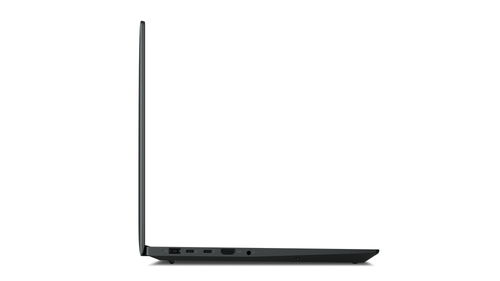

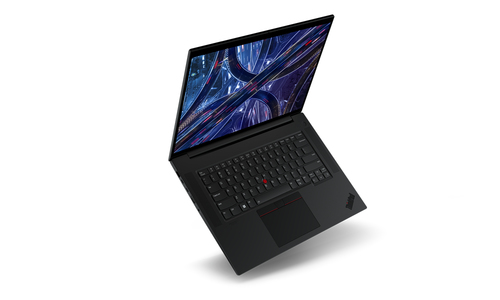

Lenovo ThinkPad P1 Gen 6 Intel® Core™ i7 i7-13700H Mobile workstation 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro Black US English
Part number 21FV001PUS
NB WS P1 G6 I7 32G 1T 11P
- Windows 11 Pro
- Intel Core i7-13700H (24MB Cache)
- 40.6 cm (16") WQXGA 2560 x 1600 IPS, NVIDIA RTX 2000 (8GB GDDR6)
- 32GB (5600MHz) DDR5-SDRAM (1 x 32) & 1000GB SSD
- Manufacturer
- Lenovo
- Part number
- 21FV001PUS
- Condition
- New
- Category
- Computer Systems › Portable Computers
- 1GPA category
- Hardware
Specifications
| Colour name | Black, Paint |
|---|---|
| Product type | Mobile workstation |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Aluminium, Carbon Fibre Reinforced Polymer (CFRP) |
| Display diagonal | 40.6 cm (16") |
|---|---|
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 500 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100% |
| Maximum refresh rate | 165 Hz |
| Contrast ratio (typical) | 1200:1 |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-13700H |
| Processor cores | 14 |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-down | 35 W |
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 96 GB |
| Non-ECC | Yes |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Discrete GPU manufacturer | NVIDIA |
|---|---|
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | Yes |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
| Audio chip | Realtek ALC3306 |
|---|---|
| Audio system | Dolby Atmos |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Not installed |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
| Motherboard chipset | Intel SoC |
|---|
| Pointing device | ThinkPad UltraNav |
|---|---|
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard language | US English |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro |
| CPU configuration (max) | 1 |
|---|
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Battery capacity | 90 Wh |
| Fast charging | Yes |
| AC adapter power | 170 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | Power on, SSD, Supervisor |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 3048 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | MIL-STD-810H TÜV Rheinland Low Blue Light |
| Sustainability certificates | TCO, ENERGY STAR, EPEAT Gold |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
