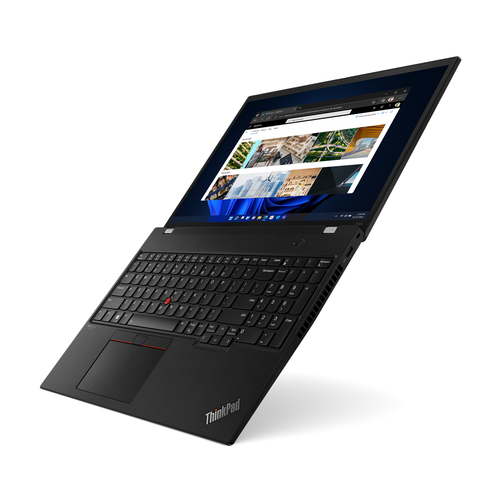

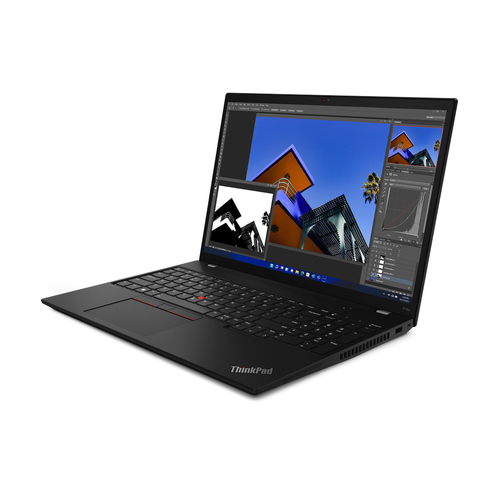

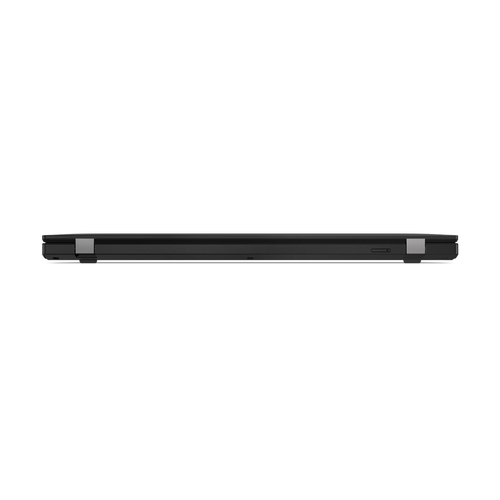

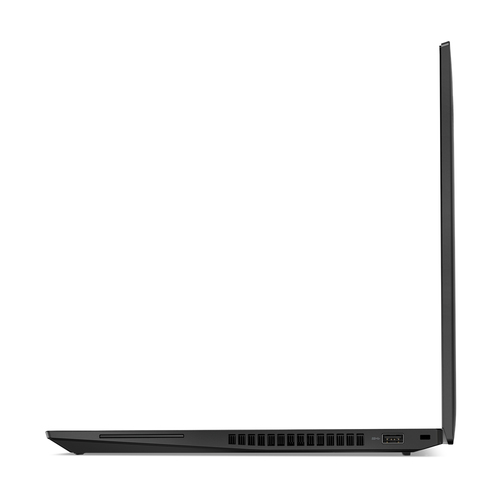

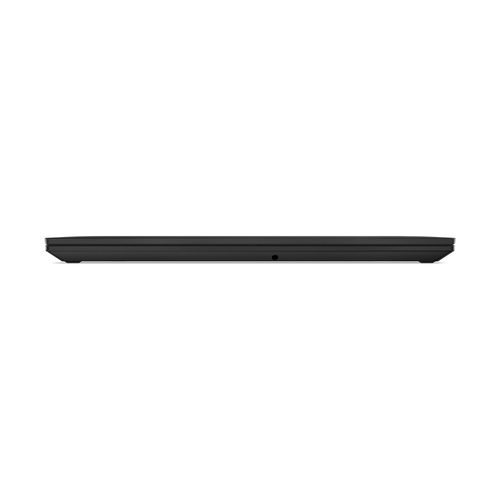

Lenovo ThinkPad P16s Gen 1 (Intel) Intel® Core™ i5 i5-1240P Mobile workstation 40.6 cm (16") WUXGA 8 GB DDR4-SDRAM 256 GB SSD NVIDIA Quadro T550 Wi-Fi 6E (802.11ax) Windows 11 Pro Black QWERTY English
Part number 21BT001TUS
THINKPAD P16S G1 CORE I5-1240P 1.7G 8GB 256GB SSD 16IN W11P 64BIT
- Windows 11 Pro
- Intel Core i5-1240P (12MB Cache)
- 40.6 cm (16") WUXGA 1920 x 1200 IPS, NVIDIA Quadro T550 (4GB GDDR6)
- 8GB (3200MHz) DDR4-SDRAM & 256GB SSD
- Manufacturer
- Lenovo
- Part number
- 21BT001TUS
- Condition
- New
- Category
- Computer Systems › Portable Computers
- 1GPA category
- Hardware
Overview
The freedom to work from anywhere
Built to perform superbly in the field or office, the ThinkPad P16s enables everyone from engineers to students and medical professionals to be innovative, anywhere. This light, powerful mobile workstation boasts up to Intel® Core™ i7 processors and comes with a choice of NVIDIA® discrete graphics or integrated Intel® graphics. It’s also ISV certified* and breezes through graphics-intensive software like AutoCAD® and SolidWorks®.
*For a complete list of ISV certifications, visit https://thinkworkstations.com/isv-certifications/.
Be inspired, from the outside in
Designed with enhanced usability including a secure fingerprint reader, full numeric keypad, and wide touchpad, ThinkPad P16s is the ideal for whether you're collaborating in the office, on site, or with clients. Available with a choice of screen options, including QHD+ with X-Rite Factory Colour Calibration, touch display, and low-blue light technology.
Configurable, durable, & reliable
With up to 48GB of lightning-quick DDR4 memory and up to 2TB of next-gen PCIe Gen4 NMVe storage, the ThinkPad P16s can be configured to meet your exact needs. Together with its array of advanced ThinkShield security features and ability to meet stringent US military tests for durability, ruggedness, and reliability, this mobile workstation enables you to work in almost any environment.
All you need to be connected, or not

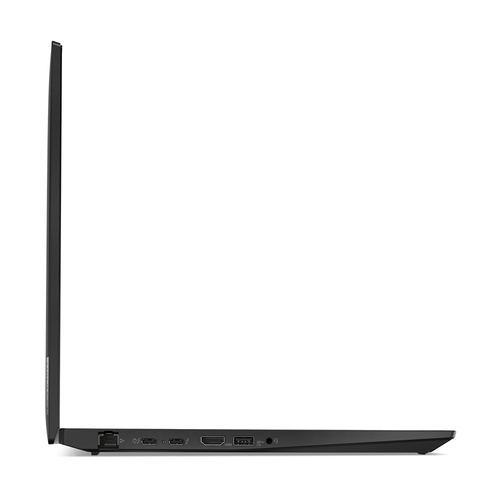

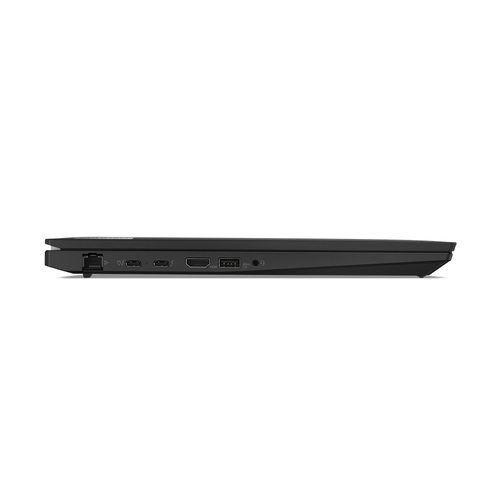

Even with jaw-dropping performance, the ThinkPad P16s is still surprisingly light and slim, weighing from just 1.68 kgs and 20.5mm / 0.8" thin. It offers robust connectivity, including two Intel® Thunderbolt™ 4 ports, plus HDMI and USB-A 3.2 connectors. It also has a webcam privacy shutter, so you can physically turn the FHD camera off and on.
We’ve got your back
When you spend hours on business-critical projects, it’s essential to know that all your hard work and efforts are backed by the best. That’s why, the ThinkPad P16s comes with ThinkShield—our comprehensive portfolio of end-to-end protection and customizable security features, including advanced data encryption and biometric technology.
Specifications may vary depending upon region / model.
Specifications
| Product type | Mobile workstation |
|---|---|
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Glass fibre, Polycarbonate (PC), Polyphenylene sulfide (PPS), Carbon fibre |
| Display diagonal | 40.6 cm (16") |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Contrast ratio (typical) | 800:1 |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-1240P |
| Processor cores | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 64 W |
| Internal memory | 8 GB |
|---|---|
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory form factor | On-board + SO-DIMM |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 40 GB |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
| Discrete graphics card model | NVIDIA Quadro T550 |
|---|---|
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | Yes |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
| Audio chip | Realtek ALC3287 |
|---|---|
| Audio system | Dolby Audio |
| Number of built-in speakers | 2 |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera | Yes |
|---|---|
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| WWAN | Upgradable |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
| Motherboard chipset | Intel SoC |
|---|
| Pointing device | ThinkPad UltraNav |
|---|---|
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Keyboard layout | QWERTY |
| Keyboard language | English |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro |
| Battery technology | Lithium Polymer (LiPo) |
|---|---|
| Battery capacity | 52.5 Wh |
| Fast charging | Yes |
| AC adapter power | 100 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor, SSD |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 3048 m |
| Certification | EPEAT Gold ENERGY STAR TCO Certified RoHS MIL-STD-810H TÜV |
|---|
| Width | 361.9 mm |
|---|---|
| Depth | 255.5 mm |
| Height | 21.1 mm |
| Weight | 1.8 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
