Lenovo

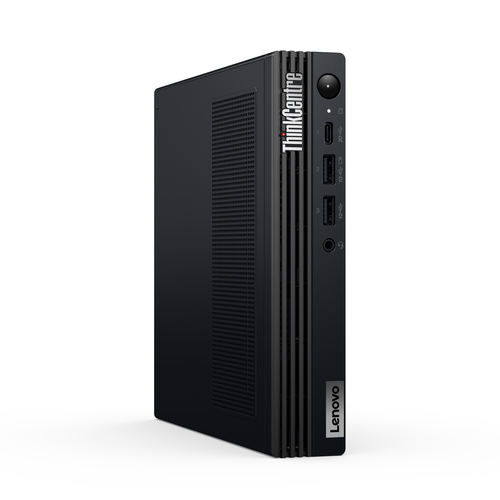

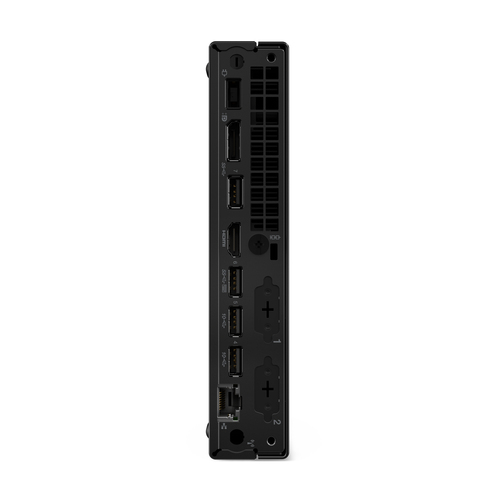

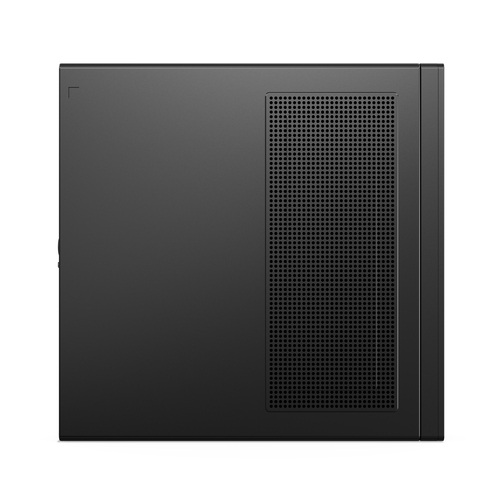

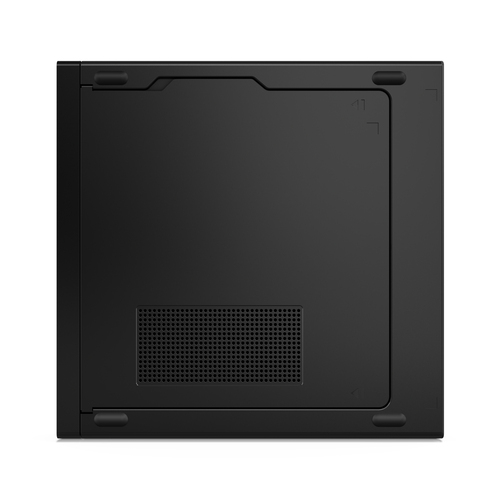

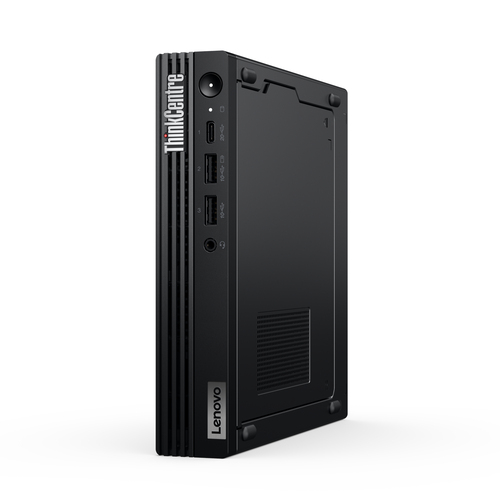

Lenovo ThinkCentre M90q Gen 5 Intel® Core™ i9 i9-14900 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Part number 12TH000TUS
DESKTOP TC M90Q GEN 5 I914900 32G 512G W
- Intel Core i9-14900, 24C (8P + 16E)/32T, Max Turbo up to 5.8GHz, P-core 2.0/5.4GHz, E-core 1.5/4.3GHz, 36MB
- 1x 32GB SO-DIMM DDR5-5200
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel UHD Graphics 770
- Windows 11 Pro
- Manufacturer
- Lenovo
- Part number
- 12TH000TUS
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i9 |
| Processor model | i9-14900 |
| Processor cores | 24 |
| Processor threads | 32 |
| Processor boost frequency | 5.4 GHz |
| Processor frequency | 2 GHz |
| Internal memory | 32 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5200 MHz |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Motherboard chipset | Intel Q670 |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Power supply | 230 W |
|---|
| Chassis type | Mini PC |
|---|---|
| Colour name | Black |
| Volume | 1 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro |
| Audio chip | Realtek ALC233 |
|---|---|
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Width | 179 mm |
|---|---|
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
| Mouse included | Yes |
|---|---|
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
|---|
| Keyboard connectivity | Wired |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
