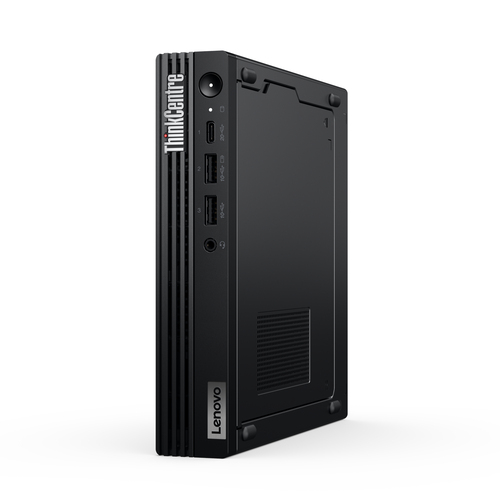

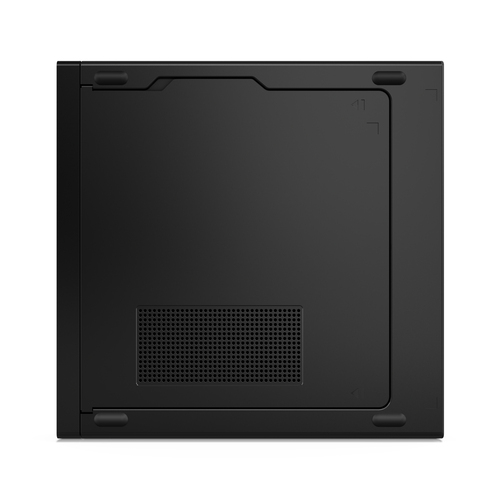

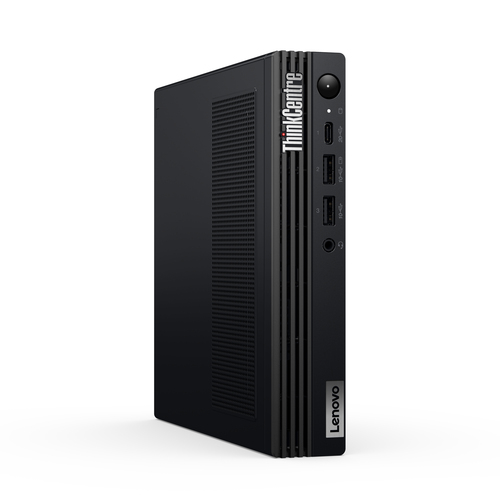

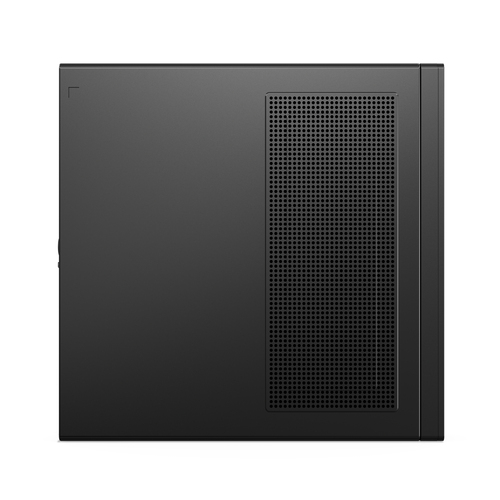

Lenovo ThinkCentre M90q Gen 5 Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Mini PC Black
Part number 12TH000HUS
DESKTOP TC M90Q GEN 5 I714700 16G 1T W11
- Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB
- 1x 16GB SO-DIMM DDR5-5600
- 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel UHD Graphics 770
- Windows 11 Pro
- Manufacturer
- Lenovo
- Part number
- 12TH000HUS
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
Performance-Driven, Productivity Perfected
Fueled by Intel® Core™ processor with up to Intel vPro® Enterprise, the ThinkCentre M90q Gen 5 Tiny PC delivers enterprise-grade performance, security, manageability, and reliability — managing businesses of all sizes while boosting productivity, creative output, and digital collaborations with vast memory, storage, and up to WiFi 7.
Workspace Efficiency Redefined

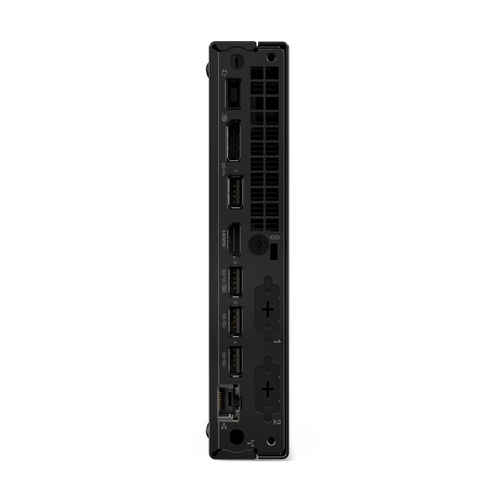

Connect to multiple peripherals via a hub of ports, and enable customization with optional expansion slots such as VGA / DisplayPort / HDMI® / Ethernet (RJ45) / USB-C®, etc. Charge your smartphone readily using the PowerShare USB, even with the PC powered off. Plus, multitask easily with support for up to four independent displays — the sky’s the limit.
Device Convenience Reimagined
With a keyboard shortcut to turn on the desktop, and a quick boot-up process via the Thunder Boot feature, this ThinkCentre PC reflects ease of convenience, making it the perfect choice for modern workspaces. Plus, with Modern Standby, your system remains up-to-date even during sleep mode, and it wakes and connects instantly.
Ultimate PC Security Enabled
Our ThinkShield security encrypts data via the discrete Trusted Platform Module (dTPM), while the self-healing BIOS restores earlier system settings. Secure your PC physically with the Kensington Security Slot™, and choose the Intel vPro® Enterprise platform for multilayer security like Intel® Hardware Shield to block cyberattacks and ransomware.
Effortless Upgrades, Easy Maintenance
Along with a sleek design, the ThinkCentre M90q Gen 5 Tiny desktop is also ready for toolless upgrades, saving IT valuable time. The removable easy-to-clean dust shield assists with upkeep to extend the lifecycle. Plus, an AI-driven fan prevents overheating issues — keeping the system cool and efficient for all-day-long operations.
Future Forward, Future Ready
The M90q Gen 5 uses 85% recycled post-consumer content acrylonitrile butadiene styrene plastics in the chassis. The packaging has 60% post-industry content (PIC), 30% ocean-bound plastic in the thermal shell and bag, and is certified by Forest Stewardship Council® (FSC). Plus, ENERGY STAR® 8.0 and TCO 9.0 ratings minimize energy costs.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory channels | Dual-channel |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Market positioning | Everyday |
|---|---|
| Motherboard chipset | Intel Q670 |
| Password protection | Yes |
| Password protection type | BIOS, HDD, Power on, SSD, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Built-in speaker(s) | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Power supply | 230 W |
|---|
| Chassis type | Mini PC |
|---|---|
| Colour name | Black |
| Volume | 1 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro |
| Display included | No |
|---|
| Audio chip | Realtek ALC233 |
|---|---|
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Width | 179 mm |
|---|---|
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
| Package width | 490 mm |
|---|---|
| Package depth | 128 mm |
| Package height | 250 mm |
| Package weight | 2.85 kg |
| Mouse included | Yes |
|---|---|
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Certification | ErP Lot 3 RoHS compliant TCO Certified 9.0 MIL-STD-810H |
|---|
| Keyboard connectivity | Wired |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
