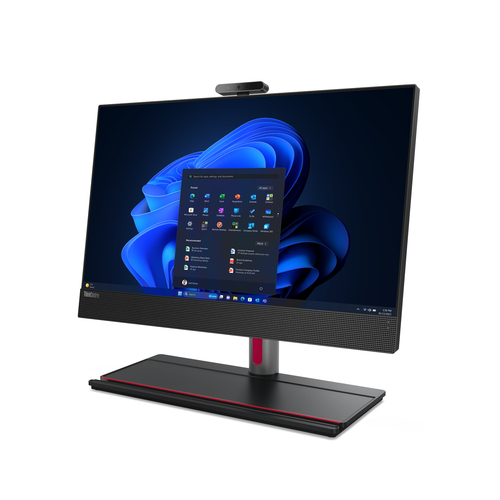

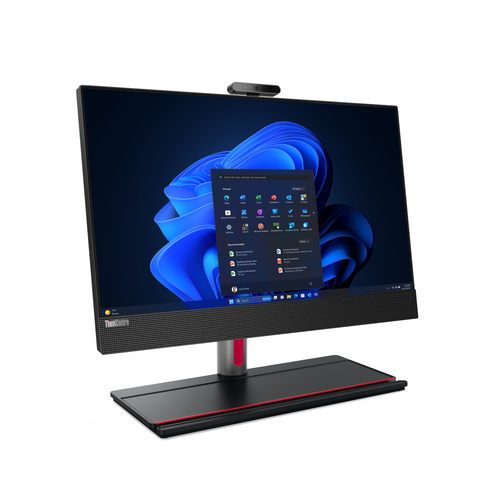

Lenovo ThinkCentre M90a Gen 5 Intel® Core™ i7 i7-14700 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Wi-Fi 6E (802.11ax) Black
Part number 12SH001PUS
M90A GEN 5 INTEL CORE I7-14700 VPRO WNDS 11PRO 64 32.0GB 1X1TB SSD
- Windows 11 Pro
- Intel Core i7-14700 (33MB Cache)
- 60.5 cm (23.8") Full HD 1920 x 1080 IPS
- 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 1000GB SSD
- Manufacturer
- Lenovo
- Part number
- 12SH001PUS
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
Designed to brighten up any workspace
With its sleek design, the Lenovo ThinkCentre M90a Gen 5 all-in-one is a PC powerhouse. It runs on up to the Intel vPro® platform with 14th Gen Intel® Core™ processing muscle and boasts a stunning FHD display, with or without touchscreen. Plus, optional discrete graphics are ideal for video-editing or design work. Mounted on a choice of stands, including one that’s full function with adjustable tilt, lift, pivot, and swivel. And there’s even a docking space for your phone and keyboard to keep your workspace clutter-free.
A smarter way to work, by far
Thanks to our Intelligent Cooling Engine (ICE) 6.0, the ThinkCentre M90a Gen 5 all-in-one offers various power modes to meet your various computing needs. Choose a 15% power boost experience, a super quiet mode that cuts system noise by up to three decibels, or opt for maximum cooling. This cutting-edge PC also features optional smart human presence detection, enhancing both security and energy efficiency by recognizing when you're away from your machine.
Protecting your data, ideas, & more
Experience unparalleled peace of mind with ThinkShield, comprehensive security that comes with every ThinkCentre. The ThinkCentre M90a Gen 5 all-in-one PC leverages up to Intel vPro® for robust, hardware-enhanced device protection. Additional security measures include BIOS-based Smart USB Protection, and an optional physical shutter you can use to open and close the webcam, further safeguarding your privacy.
Because things happen
In addition to our stringent internal testing, the ThinkCentre M90a Gen 5 all-in-one PC has been evaluated against US Department of Defense's MIL-STD 810H standards and undergone more than 200 quality checks to confirm its ability to withstand extreme scenarios. These tests encompass a wide range of challenging factors, from the icy expanses of the Arctic tundra to dust-laden desert winds, including assessments for temperature, pressure, humidity, vibration, and beyond.
Built with the planet in mind
By 2025, Lenovo is committed to obtaining 90% of our global operations electricity from renewable sources, removing one-million tons of greenhouse gas emissions from our supply chain. It’s why this all-in-one PC, for instance, meets global standards for energy-efficiency and health & safety. And why it comes with 90% sustainable packaging and comprises recycled materials.
Specifications may vary depending upon region / model.
Specifications
| Display diagonal | 60.5 cm (23.8") |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| RGB colour space | sRGB |
| Anti-glare screen | Yes |
| Colour gamut | 99% |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 70° |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory form factor | DIMM/SO-DIMM |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive type | DVD±RW |
| Card reader integrated | No |
| Discrete graphics card | No |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Built-in speaker(s) | Yes |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in microphone | Yes |
| Built-in camera | Yes |
|---|---|
| Total megapixels | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Wi-Fi | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4/2.1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Product colour | Black |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | All-in-One PC |
|---|---|
| Motherboard chipset | Intel Q670 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro |
| AC adapter power | 180 W |
|---|---|
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Width (with stand) | 539.6 mm |
|---|---|
| Depth (with stand) | 344.2 mm |
| Height (with stand) | 472 mm |
| Weight (with stand) | 7.83 kg |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Certification | ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 3 GREENGUARD RoHS compliant TCO Certified 9.0 TCO edge |
|---|
| Mouse included | Yes |
|---|---|
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Keyboard language | English |
