Lenovo

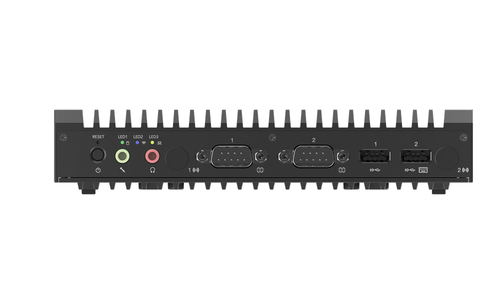

Lenovo ThinkEdge SE10 Intel Atom® X6214RE 8 GB DDR4-SDRAM 256 GB SSD Windows 10 IoT Enterprise Mini PC Black
Part number 12NH0009UT
DESKTOP TE SE10 X6214RE N 256G W10IOT
- Windows 10 IoT Enterprise LTSC 2021
- Intel Atom X6214RE (1.5MB Cache, 1.4GHz)
- 8GB (3200MHz) DDR4-SDRAM (1 x 8) & 256GB SSD
- Manufacturer
- Lenovo
- Part number
- 12NH0009UT
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Atom® |
| Processor model | X6214RE |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.4 GHz |
| Processor cache | 1.5 MB |
| Processor cache type | L2 |
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory channels | Dual-channel |
| Total storage capacity | 256 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Motherboard chipset | Intel SoC |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 2 |
| Line-out | Yes |
| Microphone in | Yes |
| Serial ports quantity | 2 |
| Power supply | 65 W |
|---|
| Chassis type | Mini PC |
|---|---|
| Volume | 0.8 L |
| VESA mounting | Yes |
| Product colour | Black |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Display included | No |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Width | 179 mm |
|---|---|
| Depth | 135 mm |
| Height | 34.5 mm |
| Weight | 1.5 kg |
| Mouse included | No |
|---|---|
| Keyboard included | No |
| Certification | ErP Lot 6 Low Halogen RoHS compliant REACH TED (ECO-declaration) WEEE Microsoft Azure IoT Edge certified AWS IoT Greengrass certified Ubuntu Core certified Ubuntu Server certified Red Hat Enterprise Linux certified |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
