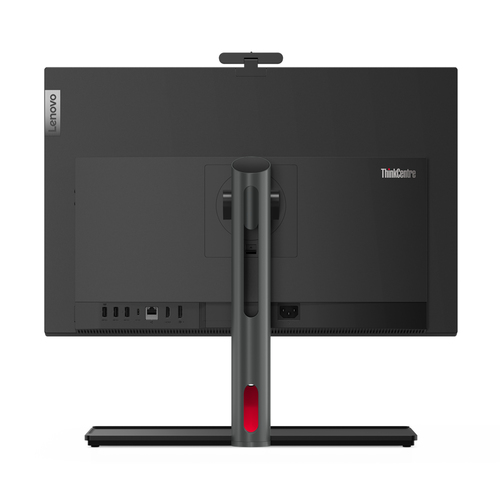

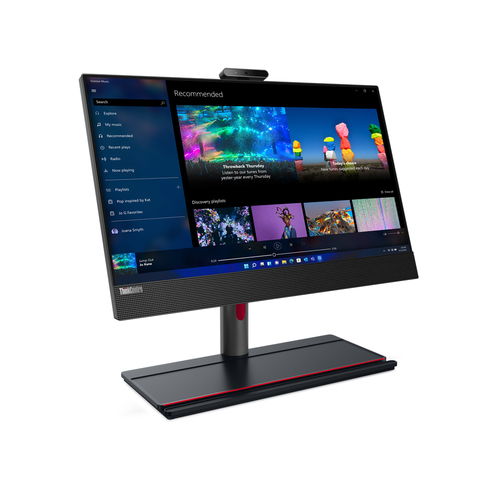

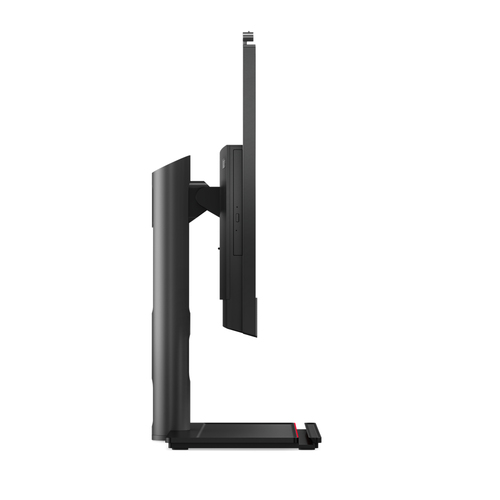

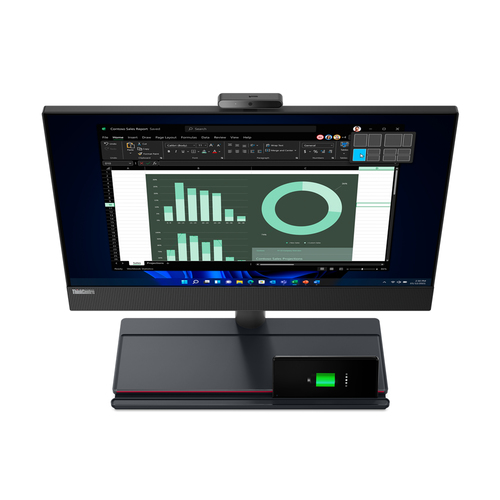

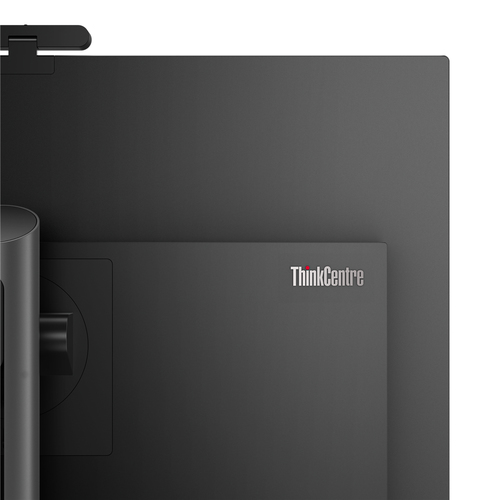

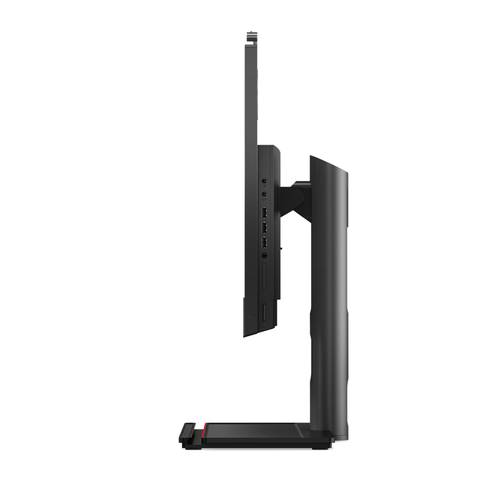

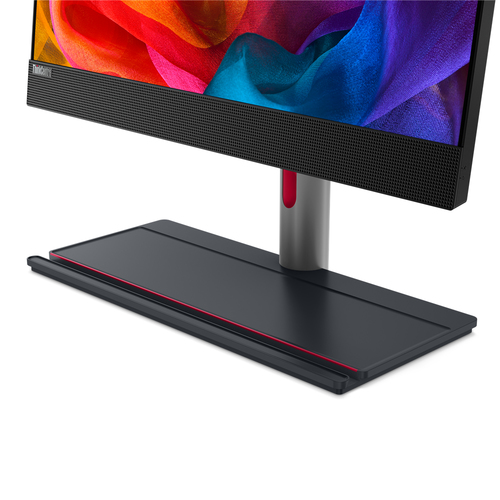

Lenovo ThinkCentre M90a Pro Intel® Core™ i9 i9-12900 60.5 cm (23.8") 2560 x 1440 pixels All-in-One PC 32 GB DDR5-SDRAM 2 TB HDD+SSD NVIDIA GeForce MX550 Windows 11 Pro Wi-Fi 6E (802.11ax) Black
Part number 11VA004NUS
TC M90A G3 PRO AIO 23.8IN I9-12900 2.4G 32GB 1TB W11P 64BIT
- Windows 11 Pro 64-bit
- Intel Core i9-12900 (30MB Cache)
- 60.5 cm (23.8") Quad HD 2560 x 1440 IPS, NVIDIA GeForce MX550 (2GB GDDR6)
- 32GB (4800MHz) DDR5-SDRAM (1 x 32) & 1000GB HDD, 1000GB SSD
- Manufacturer
- Lenovo
- Part number
- 11VA004NUS
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
Engineered for the modern workplace
The stylish ThinkCentre M90a Pro Gen 3 AIO is full of enterprise-grade level power and speed. Fueled by up to 12th Gen Intel® Core™ i9 with Intel vPro® platform and optional NVIDIA® graphics, this all-in-one desktop PC gives you high performance whenever you need it. It also comes with the convenience of a phone-docking bar and a clutter-free cord management base.
As flexible as you need it to be
With its smarter, sleek, and secure design, the ThinkCentre M90a Pro Gen 3 AIO is sure to catch the eye. Its stunning 2K display is mounted on a full-function stand with adaptable tilt, lift, pivot, and swivel, along with a tiltable camera, an industry first. There’s also option of an UltraFlex Stand for those who seek greater flexibility in today’s modern workspace.
Look forward to every meeting
With the optional conference call base, virtual meetings run more seamlessly. Quad-array far-field microphones, with 360-degree pick-up, use AI noise-suppressing technology to cut annoying background sound. As well as four Harman® speakers, super-fast USB-C connectivity brings even more clarity and richness to your meetings, while a single click fires up Microsoft Teams.
Security that’s always got your back
With the Intel vPro® platform, this PC’s security starts at the chip. You also have the option of human presence detection with a walkaway sleep mode for data privacy and to enhance energy efficiency. Plus, there’s ThinkShield—end-to-end security, combining industry-leading hardware and software, such as zero touch logins via the IR camera.
Built to last
As well as our own rigorous in-house tests, the ThinkCentre M90a Pro Gen 3 AIO is measured against the US Department of Defense's MIL-STD 810H standards, including more than 200 quality checks to ensure it can run in extreme conditions. They cover harsh variables like Arctic wilderness and desert dust storms, including tests for temperature, pressure, humidity, vibration, and more.
Specifications may vary depending upon region / model.
Specifications
| Display diagonal | 60.5 cm (23.8") |
|---|---|
| Display resolution | 2560 x 1440 pixels |
| Touchscreen | No |
| HD type | Quad HD |
| Native aspect ratio | 16:9 |
| Display brightness | 300 cd/m² |
| Panel type | IPS |
| RGB colour space | sRGB |
| Anti-glare screen | Yes |
| Colour gamut | 99% |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i9 |
| Processor generation | 12th gen Intel® Core™ i9 |
| Processor model | i9-12900 |
| Processor cores | 16 |
| Processor boost frequency | 5.1 GHz |
| Performance cores | 8 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Processor base power | 65 W |
| Maximum turbo power | 202 W |
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory form factor | DIMM/SO-DIMM |
| Total storage capacity | 2 TB |
|---|---|
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | DVD±RW |
| Card reader integrated | No |
| Discrete graphics card | Yes |
|---|---|
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce MX550 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Built-in speaker(s) | Yes |
|---|---|
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in microphone | Yes |
| Audio system | HD |
| Built-in camera | Yes |
|---|---|
| Total megapixels | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Wi-Fi | Yes |
|---|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Product colour | Black |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | All-in-One PC |
|---|---|
| Motherboard chipset | Intel Q670 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| BIOS password | Yes |
| Placement supported | Horizontal |
| Operating system architecture | 64-bit |
|---|---|
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| CPU configuration (max) | 1 |
|---|
| AC adapter power | 230 W |
|---|---|
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Width (with stand) | 539.6 mm |
|---|---|
| Depth (with stand) | 216.3 mm |
| Height (with stand) | 472 mm |
| Weight (with stand) | 8.74 kg |
| Package width | 660 mm |
| Package depth | 238 mm |
| Package height | 545 mm |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | VOC Report ErP Lot 3 MIL-STD-810H TÜV |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
|---|
| Mouse included | Yes |
|---|---|
| Keyboard included | Yes |
| Keyboard language | English |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
