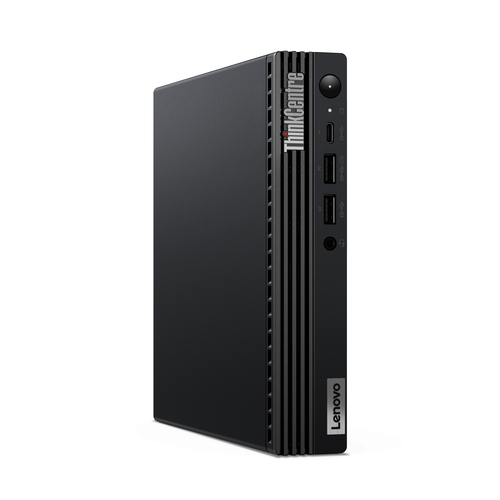

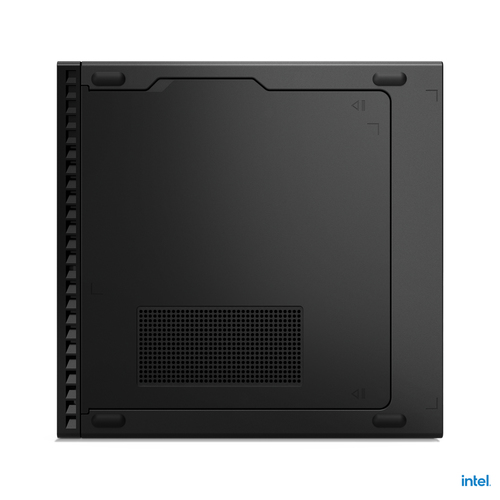

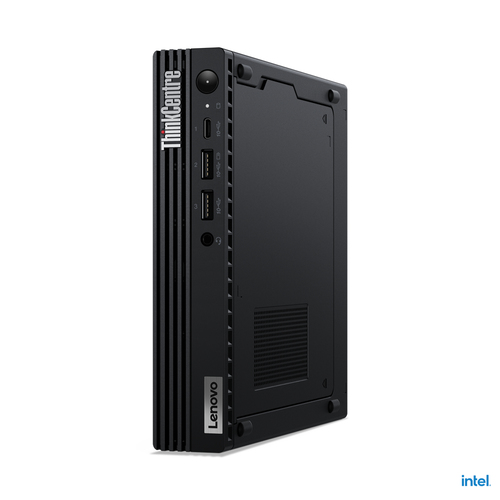

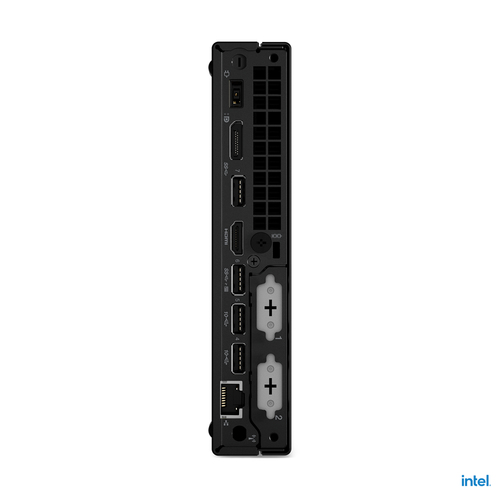

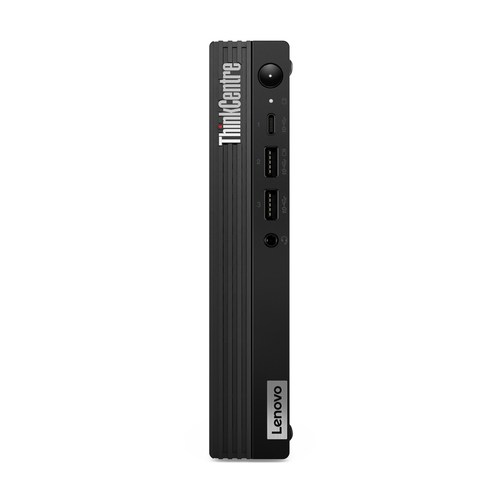

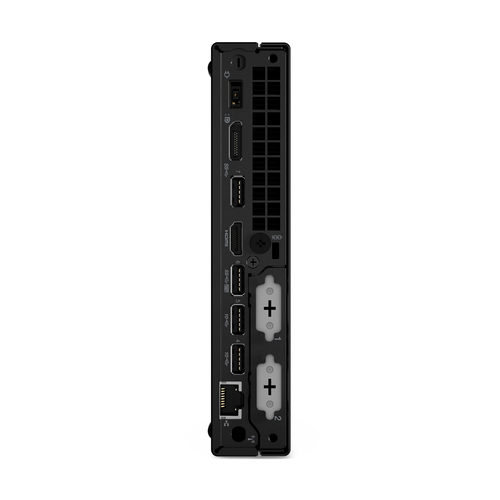

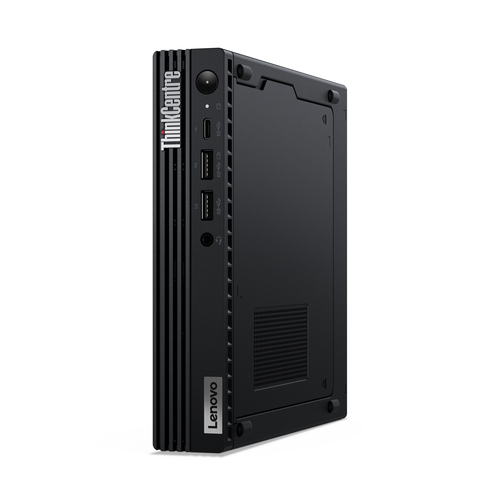

Lenovo ThinkCentre M80q Gen 3 Intel® Core™ i5 i5-12500T 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Part number 11U10019US
THINKCENTRE M80Q GEN3 I5-12500T 2.0G 8GB 512GB SSD W11P 64BIT
- Intel Core i5-12500T, 6C (6P + 0E)/12T, P-core 2.0/4.4GHz, 18MB
- 1x 8GB SO-DIMM DDR5-4800
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel UHD Graphics 770
- Windows 11 Pro
- Manufacturer
- Lenovo
- Part number
- 11U10019US
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
Big-time productivity
This tiny desktop boasts big-time processing power with up to Intel vPro® Enterprise or Essentials with 12th Generation Intel® Core™ i9 processors. A multitude of ports means customizing the ThinkCentre M80q Gen 3 for specific workflows, is a snap. Add up to four displays for even more functionality.
Easy to manage
The ThinkCentre M80q Gen 3 is easy to deploy, upgrade, and manage thanks to features like self-healing BIOS and toolless access to the SSD and memory module. With enhanced I/O ports, including the customizable connectivity of Flex IO, go ahead and connect all the peripherals you need.
Built tough. Built green.
Lenovo’s dedication to quality means the M80q Gen 3 tiny desktop shrugs off spills, dust, and more. It’s MIL-STD certified against multiple real-world benchmarks for toughness and durability. Like all ThinkCentre devices, it’s built with closed-loop post-consumer recycled plastic and is ENERGY STAR® 8 certified.
Superb security
Innovate fearlessly with the end-to-end security of ThinkShield, which combines industry-leading hardware, software, services, and processes to protect ideas and business. The Intel vPro® platform brings below-the-OS protection to better safeguard data and assets and maintain long-term stability.
Specifications may vary depending upon region / model.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12500T |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 6 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Performance-core base frequency | 2 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI4 |
| Processor base power | 35 W |
| Maximum turbo power | 74 W |
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory channels | Dual-channel |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | No |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Motherboard chipset | Intel Q670 |
|---|---|
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Built-in speaker(s) | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Wake-on-LAN ready | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Power supply | 135 W |
|---|
| Chassis type | Mini PC |
|---|---|
| Colour name | Black |
| Volume | 1 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Viewing window | No |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 11 Pro |
| CPU configuration (max) | 1 |
|---|
| Display included | No |
|---|
| Audio chip | Realtek ALC256-VB |
|---|---|
| Audio system | High Definition Audio |
| Number of speakers | 1 |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Width | 179 mm |
|---|---|
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
| Mouse included | Yes |
|---|---|
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Compliance certificates | RoHS |
|---|---|
| Certification | MIL-STD-810H, ErP Lot 3 |
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
|---|
| Keyboard connectivity | Wired |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
