Overview
An IoT game changer.

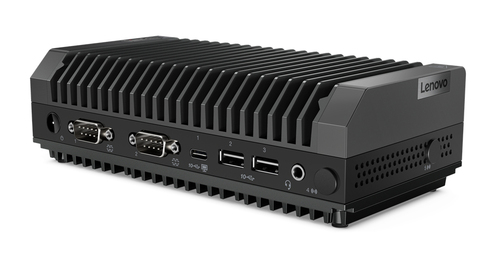

Tackling demanding tasks in demanding environments is what the ThinkEdge SE30 was designed for. Powered by the latest 11th Gen Intel® Core™ i5 vPro® processors for industrial computing and high-speed DDR4 memory, the SE30 is ready-built for challenging edge applications.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Core™ i3 |
|---|
| Processor generation | 11th gen Intel® Core™ i3 |
|---|
| Processor model | i3-1115GRE |
|---|
| Processor cores | 2 |
|---|
| Processor threads | 4 |
|---|
| Processor boost frequency | 3.9 GHz |
|---|
| Processor frequency | 2.2 GHz |
|---|
| Processor cache | 6 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Configurable TDP-up frequency | 3 GHz |
|---|
| Configurable TDP-up | 28 W |
|---|
| Configurable TDP-down | 12 W |
|---|
| Configurable TDP-down frequency | 1.7 GHz |
|---|
Memory
| Internal memory | 8 GB |
|---|
| Maximum internal memory | 8 GB |
|---|
| Internal memory type | DDR4-SDRAM |
|---|
| Memory layout (slots x size) | 1 x 8 GB |
|---|
| Memory clock speed | 3200 MHz |
|---|
| Memory channels | Dual-channel |
|---|
Storage
| Total storage capacity | 256 GB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Total SSDs capacity | 256 GB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 256 GB |
|---|
| SSD interface | PCI Express 3.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
Graphics
| Discrete graphics card | No |
|---|
| On-board graphics card | Yes |
|---|
| Discrete graphics card model | Not available |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card family | Intel® UHD Graphics |
|---|
| On-board graphics card model | Intel® UHD Graphics |
|---|
Performance
| Motherboard chipset | Intel SoC |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Product type | Mini PC |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 1000,2500 Mbit/s |
|---|
| Wi-Fi | No |
|---|
| Bluetooth | No |
|---|
Ports & interfaces
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| Intel® Thunderbolt 4 | Yes |
|---|
| Thunderbolt 4 ports quantity | 1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| DisplayPort version | 1.4a |
|---|
| Ethernet LAN (RJ-45) ports | 2 |
|---|
| Combo headphone/mic port | Yes |
|---|
| DC-in jack | Yes |
|---|
| Serial ports quantity | 2 |
|---|
Design
| Chassis type | Mini PC |
|---|
| Colour name | Black |
|---|
| VESA mounting | Yes |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Product colour | Black |
|---|
| Viewing window | No |
|---|
Software
| Operating system installed | No |
|---|
Processor special features
| CPU configuration (max) | 1 |
|---|
Display
| Display included | No |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating vibration | 3 G |
|---|
| Operating shock | 30 G |
|---|
Weight & dimensions
| Width | 179 mm |
|---|
| Depth | 88 mm |
|---|
| Height | 51.5 mm |
|---|
| Weight | 1.02 kg |
|---|
Packaging content
| Mouse included | Yes |
|---|
| Keyboard included | Yes |
|---|
Certificates
| Compliance certificates | RoHS, WEEE |
|---|
| Certification | ErP Lot 6, Low Halogen, PCF |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
