Lenovo ThinkEdge SE30 Intel® Core™ i3 i3-1115GRE 8 GB DDR4-SDRAM 512 GB SSD Windows 10 IoT Enterprise Mini PC Black
Part number 11NA0015US
TOPSELLER THINKCENTRE SE30 I3-1115GRE 3G 8GB 512GB SSD WS10IE
- Mini PC Black 65 W
- Intel® Core™ i3 i3-1115GRE 2.2 GHz Processor cores: 2
- 8 GB DDR4-SDRAM 3200 MHz
- 512 GB SSD
- Intel® UHD Graphics
- Ethernet LAN 100,1000,2500 Mbit/s Wi-Fi 5 (802.11ac) Bluetooth 5.1
- Windows 10 IoT Enterprise
- Manufacturer
- Lenovo
- Part number
- 11NA0015US
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
Excellent performance in a compact body
Compact, rugged and reliable, the ThinkEdge SE30 is an edge IoT-dedicated terminal with the tiny footprint of a 0.81L device. Its 11th Gen Intel® Core™ i5-1145GRE / i3-1115GRE processors for IoT and embedded devices support Wifi, Bluetooth™ and 4G LTE or 5G WWAN wireless connections to efficiently transport your IoT data to the cloud or your data center.
Ideal for use in harsh environments
With an innovative fanless design that guarantees efficient heat dissipation, the SE30 supports a thermal operating temperature range from -20° to 60° C. Its MIL-STD-tested device reliability offers durable performance for uninterrupted productivity, even in harsh conditions.
Secure & reliable

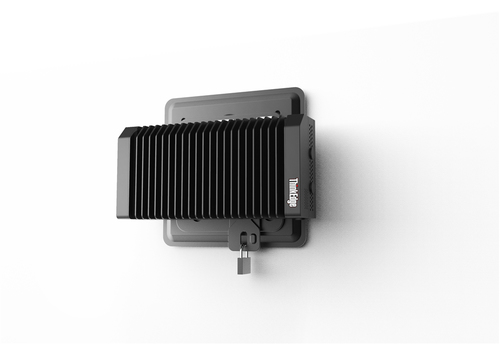

The SE30’s Kensington and VESA mount locks mean the device stays where you put it, and paired with RSA encryption to secure user data, a hardware watchdog timer helps ensure continuous operation. With MIL-STD810H compliant robustness, and continuous operation 24 hours a day, 365 days a year, you can install it with confidence.
Flexible network connectivity
Built for evolving IoT environments, the ThinkEdge SE30 supports 4G and 5G high-speed communication and quickly and securely collects, analyzes and transmits your IoT data to the cloud or data center.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i3 |
| Processor generation | 11th gen Intel® Core™ i3 |
| Processor model | i3-1115GRE |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 2.2 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up frequency | 3 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1.7 GHz |
| Number of processors installed | 1 |
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory channels | Dual-channel |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Motherboard chipset | Intel SoC |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Dual Band Wireless-AC 9260 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Serial ports quantity | 2 |
| Power supply | 65 W |
|---|
| Chassis type | Mini PC |
|---|---|
| Volume | 0.81 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Operating system language | English |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Embedded options available | Yes |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Display included | No |
|---|
| Operating temperature (T-T) | -20 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Width | 179 mm |
|---|---|
| Depth | 88 mm |
| Height | 51.5 mm |
| Mouse included | No |
|---|---|
| Keyboard included | Yes |
| Compliance certificates | REACH, RoHS, WEEE |
|---|
| Sustainability certificates | ErP |
|---|
| Keyboard layout | QWERTY |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
