Lenovo ThinkCentre M53 Intel® Celeron® J1800 4 GB DDR3L-SDRAM 16 GB Flash Windows Embedded Standard 7 Mini PC Black
Part number 10EC000JUS
TC M53 TINY CELERON J1800 2.41G 4GB 16GB DOM W7E INTEL HD
- Mini PC Black 65 W
- Intel® Celeron® J1800 2.41 GHz Processor cores: 2
- 4 GB DDR3L-SDRAM 1600 MHz 1 x 4 GB
- 16 GB Flash
- Intel® HD Graphics
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 4 (802.11n)
- Windows Embedded Standard 7
- Manufacturer
- Lenovo
- Part number
- 10EC000JUS
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview

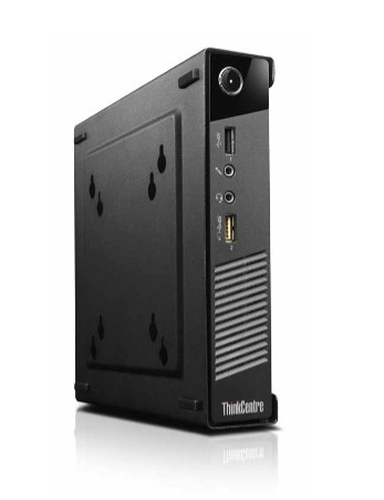

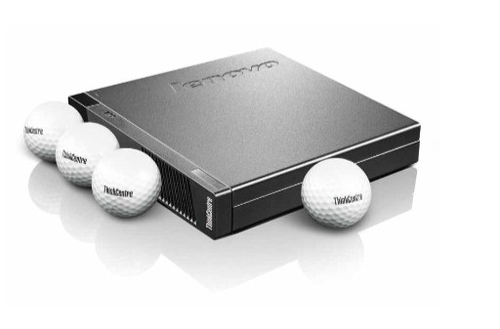

Tiny Form Factor
Our tiny desktops were the first 1L desktop in the industry. Complete with flexible mounting solutions, including support for standard VESA mounts, Tiny desktops fit just about anywhere, yet they provide a reliable, enterprise-level performance that you can depend on.

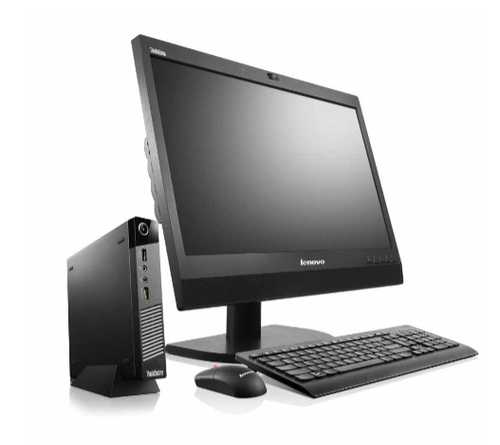

Keyboard Power-On
If you choose to mount this compact unit on the back of your monitor, you can still power on conveniently from the front, by simply pressing Alt+P on a USB-connected keyboard. Also compatible with wireless keyboards.
Advanced Thermal Design
Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics, resulting in long desktop life. Choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities, so you don’t have to worry about business continuity.
USB Power and Blocking
M53 includes an always-on USB port with Rapid Charge, so you can charge your devices without having to power on your PC. Also, Smart USB Protection means you can block external storage devices, allowing only keyboard or mouse peripherals and protecting your valuable data.
Three-Year Stable Chassis Design
The M53 desktop provides stability for long-term deployments to help reduce transition, qualification, and testing costs, ensuring savings for your business.
Hyper-Fast Wireless Experience
The advanced antenna design provides better signal reception and faster performance from your wireless connection.
PC Cloud Manager 3.0
Keep your PC fleet healthy and green as you effortlessly monitor and manage your desktop's health and power consumption.
Lenovo Solution Center
Lenovo Solution Center provides access to a simplified dashboard that reflects total system health. This hardware diagnostic tool allows quick access to frequently used system management tools, including backup and restore, antivirus and firewall settings, system/software updates, internet connections, and service and support. Drastically speed migration time with ThinkVantage System Migration Assistant. Spend less time manually searching for drivers and software updates with ThinkVantage System Update.
Fast Data Transfer
Move data between the M53 and other devices quickly with USB 3.0 — it's up to 10 times faster than previous USB technologies, and is backward-compatible.
Green Leadership
Certifications like ENERGY STAR and EPEAT® Gold mean you'll save money with a more energy-efficient PC. Plus, you can use Desktop Power Manager to customize your power settings and balance power consumption with system performance, helping the planet and your bottom line.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Celeron® |
| Processor model | J1800 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.58 GHz |
| Processor frequency | 2.41 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| FSB Parity | No |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Celeron Processor J1000 series for Desktop |
| Processor codename | Bay Trail |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| PCI Express slots version | 2.0 |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x4 |
| Number of processors installed | 1 |
| Processor socket | BGA 1170 |
| Stepping | B3 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333 MHz |
| ECC supported by processor | No |
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 1x SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
| Total storage capacity | 16 GB |
|---|---|
| Storage media | Flash |
| Optical drive type | No |
| Card reader integrated | No |
| On-board graphics card | Yes |
|---|---|
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card base frequency | 688 MHz |
| On-board graphics card dynamic frequency (max) | 792 MHz |
| Number of displays supported (on-board graphics) | 2 |
| Password protection | Yes |
|---|---|
| Password protection type | BIOS, User |
| Product type | Mini PC |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |

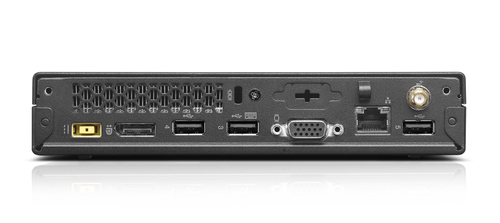

| USB 2.0 ports quantity | 4 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| DVI port | No |
| Power supply | 65 W |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Chassis type | Mini PC |
|---|---|
| Volume | 1 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black |
| Operating system installed | Windows Embedded Standard 7 |
|---|
| Intel® Small Business Advantage (Intel® SBA) | No |
|---|---|
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel 64 | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Clear Video Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Thermal Monitoring Technologies | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel FDI Technology | No |
| Intel Flex Memory Access | No |
| Intel Fast Memory Access | No |
| Intel Enhanced Halt State | No |
| Intel Demand Based Switching | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Processor package size | 25 X 27 mm |
| Processor code | SR1SD |
| Physical Address Extension (PAE) | 36 bit |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Display included | No |
|---|
| Audio system | HD |
|---|
| Width | 179 mm |
|---|---|
| Depth | 34.5 mm |
| Height | 182 mm |
| Weight | 1.3 kg |
| Mouse included | Yes |
|---|---|
| Keyboard included | Yes |
| Cables included | AC |
| Manual | Yes |
| Compliance certificates | RoHS |
|---|
| Sustainability certificates | ENERGY STAR |
|---|
| Intel segment tagging | Enterprise, Professional |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
