Lenovo ThinkCentre M73 Tiny Intel® Core™ i5 i5-4590T 4 GB DDR3-SDRAM 128 GB SSD Windows 7 Professional PC Black
Part number 10AX007WUS
THINKCENTRE M73 TFF I5-4590T 2G 4GB 128GB DVDRW W7P
- PC Black 65 W
- Intel® Core™ i5 i5-4590T 2 GHz Processor cores: 4
- 4 GB DDR3-SDRAM 1600 MHz 1 x 4 GB
- 128 GB SSD DVD±RW
- Intel® HD Graphics 4600
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 4 (802.11n) Bluetooth 4.0
- Windows 7 Professional 64-bit
- Manufacturer
- Lenovo
- Part number
- 10AX007WUS
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview

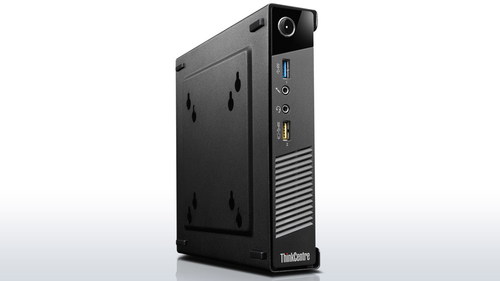

Tiny Form Factor

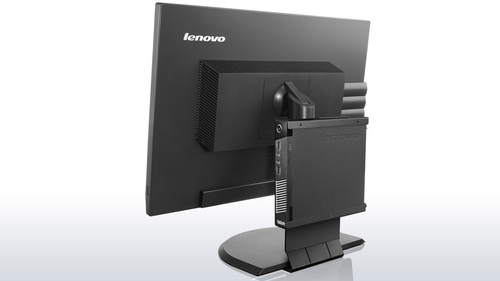

Our Tiny desktops are the first 1L desktop in the industry. Complete with flexible mounting solutions including support for standard VESA mounts, Tiny desktops fit just about anywhere, yet they provide a reliable, enterprise-level performance that you can depend on.
Keyboard Power-On
If you choose to mount this compact unit on the back of your monitor, you can still power on conveniently from the front, by simply pressing Alt + P.

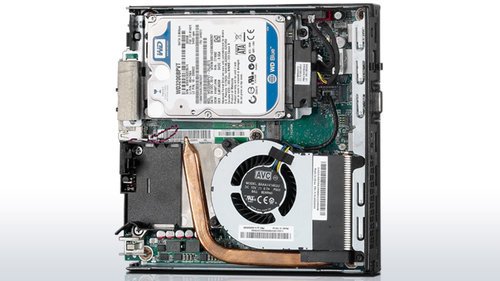

Advanced Thermal Design
Our Intelligent Cooling Engine (ICE) 3.0 is designed to provide a balance between thermals and acoustics, resulting in long desktop life. With two optimized settings, you choose the performance mode that best suits your work environment, prioritizing temperature or sound. Plus, ICE 3.0 allows for working in hotter temperatures and enables system monitoring with thermal alerts that preempt overheating possibilities.
Platform Stability
The M73 desktop features Intel® Stable Image Platform Program (SIPP), providing stability for long-term deployments to help reduce transition, qualification, and testing costs, ensuring savings for your business.
Hyper-Fast Wireless Experience
The advanced antenna design provides better signal reception and faster performance from your wireless connection.
PC Cloud Manager 2
Keep your PC fleet healthy and green as you effortlessly monitor and manage your desktop's health and power consumption.
Lenovo Solution Center
Lenovo Solution Center provides access to a simplified dashboard that reflects total system health. This hardware diagnostic tool allows quick access to frequently used system management tools, including backup and restore, antivirus and firewall settings, system/software updates, internet connections, and service and support. Drastically speed migration time with ThinkVantage System Migration Assistant. Spend less time manually searching for drivers and software updates with ThinkVantage System Update.
Fast Data Transfer
Move data between the M73 and other devices quickly with USB 3.0 — it's up to 10 times faster than previous USB technologies, and is backward-compatible.
Green Leadership
Certifications like ENERGY STAR 5.2, EPEAT® Gold, and UL Environment Gold mean you'll save money with a more energy-efficient PC. Plus, you can use Desktop Power Manager to customize your power settings and balance power consumption with system performance, helping the planet and your bottom line.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-4590T |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| FSB Parity | No |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Core i5-4500 Desktop Series |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 35 W |
| Tcase | 66.35 °C |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
| Internal memory | 4 GB |
|---|---|
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
| Total storage capacity | 128 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | DVD±RW |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | SATA III |
| On-board graphics card | Yes |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4600 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 1.024 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x412 |
| Motherboard chipset | Intel® H81 |
|---|---|
| Password protection | Yes |
| Password protection type | HDD, Power on |
| Product type | PC |
| Optical drives quantity | 1 |
|---|
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| USB 2.0 ports quantity | 8 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Mini PCI Express slots | 1 |
|---|
| Power supply | 65 W |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Placement supported | Horizontal/Vertical |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | No |
| Product colour | Black |
| Operating system architecture | 64-bit |
|---|---|
| Recovery operating system | Windows 8.1 Pro |
| Operating system installed | Windows 7 Professional |
| Intel® Wireless Display (Intel® WiDi) | Yes |
|---|---|
| Intel 64 | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel FDI Technology | Yes |
| Intel Flex Memory Access | No |
| Intel Fast Memory Access | No |
| Intel® Smart Cache | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Processor code | SR1S6 |
| Scalability | 1S |
| Display included | No |
|---|
| Audio system | HD |
|---|
| Width | 184 mm |
|---|---|
| Depth | 182 mm |
| Height | 65 mm |
| Weight | 2.3 kg |
| Mouse included | Yes |
|---|---|
| Keyboard included | Yes |
| AC adapter included | Yes |
| Compliance certificates | RoHS |
|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
|---|
| Intel segment tagging | Enterprise, Professional |
|---|
