Lenovo 00FM518 network switch Managed L2/L3 Black
Part number 00FM518
FLEX SYST FABRIC SI4093 SYST INTERCONNECT MOD
- Managed L2/L3 SNMP v1,v3
- Quality of Service (QoS) support
- 10G support
- MAC address table: 128000 entries
- Access Control List (ACL)
- Manufacturer
- Lenovo
- Part number
- 00FM518
- Condition
- New
- Category
- Accessories › Storage Accessories
- 1GPA category
- Hardware
Overview

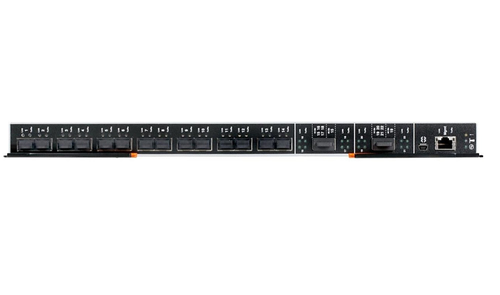

The Lenovo® Flex System Fabric SI4093 System Interconnect Module enables simplified integration of Flex System™ into your networking infrastructure and provides the capability of building simple connectivity for points of delivery or clusters up to 126 nodes.
The SI4093 requires no management for most data center environments, which eliminates the need to configure each networking device or individual ports, thus reducing the number of management points. It provides a low latency, loop-free interface that does not rely upon spanning tree protocols, which removes one of the greatest deployment and management complexities of a traditional switch. The SI4093 offers administrators a simplified deployment experience while maintaining the performance of intra-chassis connectivity.
Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4095 |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 10GBASE-T, 40GBASE-ESR4, 40GBASE-LR4 |
|---|
| MAC address table | 128000 entries |
|---|
| Access Control List (ACL) | Yes |
|---|---|
| Security algorithms | SSH |
| Multicast support | Yes |
|---|
| Management protocols | SNMP v1,v3 |
|---|
| Product colour | Black |
|---|
| Mean time between failures (MTBF) | 236805 h |
|---|
| Width | 401 mm |
|---|---|
| Depth | 317 mm |
| Height | 30 mm |
| Weight | 3.7 kg |
| Package width | 508 mm |
|---|---|
| Package depth | 432 mm |
| Package height | 114 mm |
| Package weight | 4.1 kg |
| Certification | United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A IEC/EN 60950-1, Second Edition Canada ICES-003, issue 4, Class A Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A Taiwan BSMI CNS13438, Class A CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3) CISPR 22, Class A China GB 9254-1998 Turkey Communiqué 2004/9; Communiqué 2004/22 Saudi Arabia EMC.CVG, 28 October 2002 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
