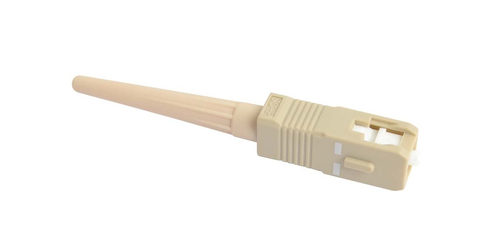

Legrand 205KNF9FA-62 fibre optic connector SC Male
Part number 205KNF9FA-62
SOCCONNSCOM1900UM BEIGE
- Better Insertion Loss & Return Loss Performance:: Support high-bandwidth/high-speed transmission to 25G, 40G and 100G applications
- Factory-cleaved, pre-polished 900-micron fiber stub: Provides a quicker termination
- Available in LC, SC and ST, Single-Mode or Multimode: Multiple connector types available
- 900-micron boot conceals and protects the splice: Enables better cable management
- UV Cure Protection Sleeves: Strain relief boot protects the splice point
- 3mm Version: 3mm boot protects splice for easy cable management
- 3mm Version: Brass crimp to protect splice
- 3mm Version: Tubing insert to accommodate 1.6/2.0/3.0 cordage
- Fiber endface types: Endfaces available in PC, APC and UPC
- Manufacturer
- Legrand
- Part number
- 205KNF9FA-62
- Condition
- New
- Category
- Cables › Cable Components
- 1GPA category
- Hardware
Overview
Infinium Splice-On connectors by Legrand enable fast field terminations while meeting or exceeding industry standards for performance. The entire splice is concealed and protected within the strain relief boot and the UV Cure Protection sleeve cures in seconds, reducing the variables that cause critical errors during installation, so you can finish the job quickly and efficiently.
Legrand 3.0mm Splice-On Connectors have a unique boot that allows the entire splice to be concealed and protected. The addition of an extended brass crimp sleeve provides extra protection to the splice and utilizes the Kevlar for maximized pull strength.
Specifications
| Connector type | SC |
|---|---|
| Fibre optic type | OM1 |
| Connector gender | Male |
| Product colour | Ivory |
| Quantity per pack | 6 pc(s) |
|---|
| Country of origin | United States |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
