Overview
Empowering the hybrid workforce

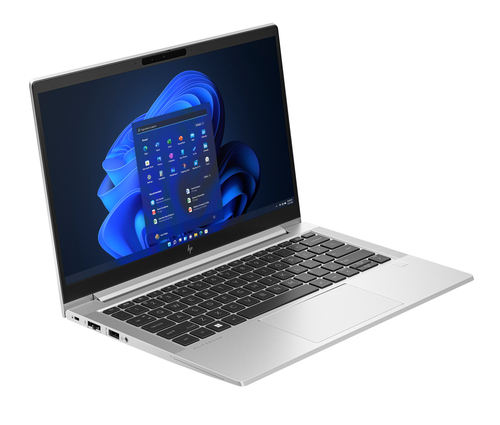

Simplify hybrid work with the cost-effective, highly secure, and easy to manage HP EliteBook 630. With the latest Intel processor[2], this PC easily adapts for use at home, in the office, or when traveling.
Specifications
Design
| Product type | Laptop |
|---|
| Product colour | Silver |
|---|
| Form factor | Clamshell |
|---|
| Market positioning | Premium |
|---|
| Introduction year | 2024 |
|---|
| Original brand name | HP |
|---|
Display
| Display diagonal | 33.8 cm (13.3") |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| Touchscreen | No |
|---|
| HD type | Full HD |
|---|
| Panel type | IPS |
|---|
| LED backlight | Yes |
|---|
| Native aspect ratio | 16:9 |
|---|
| Anti-glare screen | Yes |
|---|
| Display bezel technology | Micro-Edge |
|---|
| Display brightness | 250 cd/m² |
|---|
| Display diagonal (metric) | 33.8 cm |
|---|
| RGB colour space | NTSC |
|---|
| Colour gamut | 45% |
|---|
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Core™ i5 |
|---|
| Processor generation | 13th gen Intel® Core™ i5 |
|---|
| Processor model | i5-1335U |
|---|
| Processor cores | 10 |
|---|
| Processor threads | 12 |
|---|
| Processor boost frequency | 4.6 GHz |
|---|
| Performance cores | 2 |
|---|
| Efficient cores | 8 |
|---|
| Performance-core Max Turbo Frequency | 4.6 GHz |
|---|
| Efficient-core Max Turbo Frequency | 3.4 GHz |
|---|
| Processor cache | 12 MB |
|---|
| Processor cache type | L3 |
|---|
| Processor base power | 15 W |
|---|
| Maximum turbo power | 55 W |
|---|
Memory
| Internal memory | 16 GB |
|---|
| Internal memory type | DDR4-SDRAM |
|---|
| Memory clock speed | 3200 MHz |
|---|
| Memory form factor | SO-DIMM |
|---|
| Memory layout (slots x size) | 1 x 16 GB |
|---|
| Memory slots | 2x SO-DIMM |
|---|
| Maximum internal memory | 64 GB |
|---|
| ECC | No |
|---|
Storage
| Total storage capacity | 256 GB |
|---|
| Storage media | SSD |
|---|
| Total SSDs capacity | 256 GB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 256 GB |
|---|
| SSD interface | PCI Express |
|---|
| NVMe | Yes |
|---|
| Optical drive type | No |
|---|
Graphics
| Discrete graphics card model | Not available |
|---|
| On-board graphics card | Yes |
|---|
| On-board GPU manufacturer | Intel |
|---|
| Discrete graphics card | No |
|---|
| On-board graphics card family | Intel Iris Xe Graphics |
|---|
| On-board graphics card model | Intel Iris Xe Graphics |
|---|
Audio
| Number of built-in speakers | 2 |
|---|
| Built-in microphone | Yes |
|---|
| Number of microphones | 2 |
|---|
Camera

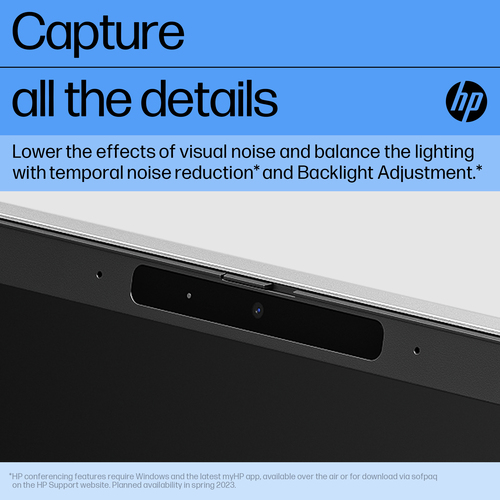

| Front camera | Yes |
|---|
| Front camera HD type | HD |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
|---|
| Mobile network connection | No |
|---|
| Antenna type | 2x2 |
|---|
| WLAN controller model | Intel Wi-Fi 6E AX211 |
|---|
| WLAN controller manufacturer | Intel |
|---|
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.3 |
|---|

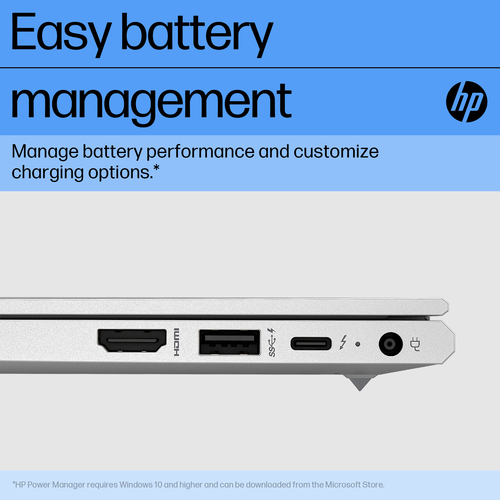

Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.1 |
|---|
| Thunderbolt 4 ports quantity | 1 |
|---|
| Combo headphone/mic port | Yes |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
Keyboard
| Pointing device | Clickpad |
|---|
| Numeric keypad | No |
|---|
| Keyboard backlit | Yes |
|---|
| Spill-resistant keyboard | Yes |
|---|
| Input device model | HP Premium Collaboration Keyboard |
|---|
Software
| Operating system installed | Windows 11 Pro |
|---|
Brand-specific features
| HP speaker type | HP Dual Speakers |
|---|
| HP Connection Optimizer | Yes |
|---|
| HP front camera | HP Webcam |
|---|
| HP segment | Business |
|---|
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Number of battery cells | 3 |
|---|
| Battery capacity | 42 Wh |
|---|
| Battery weight | 181.83 g |
|---|
Power
| AC adapter power | 65 W |
|---|
| AC adapter frequency | 50 - 60 Hz |
|---|
| AC adapter input voltage | 100 - 240 V |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
Security
| Password protection | Yes |
|---|
| Password protection type | BIOS, Power on |
|---|
Certificates
| Low halogen | Yes |
|---|
| Compliance certificates | CECP, GS mark, CCC |
|---|
Weight & dimensions
| Width | 306.9 mm |
|---|
| Depth | 208.4 mm |
|---|
| Height | 15.9 mm |
|---|
| Weight | 1.22 kg |
|---|
Packaging data
| Package width | 69 mm |
|---|
| Package depth | 483 mm |
|---|
| Package height | 305 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
