Overview
Powers large workflows. Fits a tiny space.
Tackle workflows you never thought before possible on such a tiny PC. The HP Z2 Mini easily fits on your desk or behind your monitor so you can tackle 3D projects without losing valuable office space. All while feeling protected From the BIOS to the browser, above, in, and below the OS with HP Wolf Security Suite.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Core™ i7 |
|---|
| Processor generation | Intel® Core™ i7 (14th gen) |
|---|
| Processor model | i7-14700 |
|---|
| Processor cores | 20 |
|---|
| Processor threads | 28 |
|---|
| Processor boost frequency | 5.4 GHz |
|---|
| Performance cores | 8 |
|---|
| Efficient cores | 12 |
|---|
| Performance-core Max Turbo Frequency | 5.5 GHz |
|---|
| Efficient-core Max Turbo Frequency | 4.3 GHz |
|---|
| Performance-core base frequency | 3.4 GHz |
|---|
| Efficient-core base frequency | 2.5 GHz |
|---|
| Processor cache | 33 MB |
|---|
| Processor cache type | L3 |
|---|
| Processor base power | 125 W |
|---|
| Maximum turbo power | 253 W |
|---|
Memory
| Internal memory | 16 GB |
|---|
| Internal memory type | DDR5-SDRAM |
|---|
| Memory layout (slots x size) | 1 x 16 GB |
|---|
| Memory clock speed | 5600 MHz |
|---|
| ECC | No |
|---|
Storage
| Total storage capacity | 512 GB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Total SSDs capacity | 512 GB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 512 GB |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
Graphics
| Discrete graphics card | Yes |
|---|
| Discrete GPU manufacturer | NVIDIA |
|---|
| On-board graphics card | Yes |
|---|
| Discrete graphics card model | NVIDIA Quadro T1000 |
|---|
| Discrete graphics card memory | 4 GB |
|---|
| Discrete graphics memory type | GDDR6 |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card family | Intel® UHD Graphics |
|---|
| On-board graphics card model | Intel UHD Graphics 770 |
|---|
Performance
| Market positioning | Performance |
|---|
| Password protection | Yes |
|---|
| Password protection type | BIOS, Power on |
|---|
| Product type | Workstation |
|---|
| Built-in speaker(s) | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
|---|
| WLAN controller manufacturer | Intel |
|---|
| WLAN controller model | Intel Wi-Fi 7 BE200 |
|---|
| Antenna type | 2x2 |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.4 |
|---|

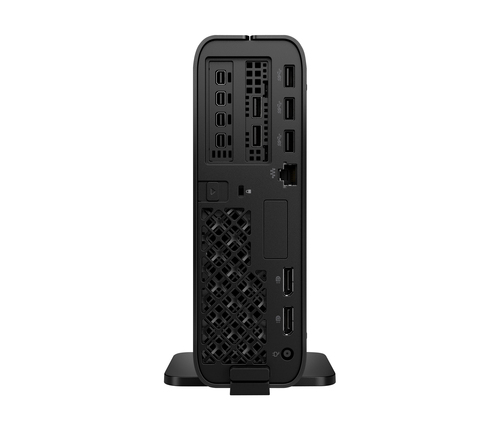

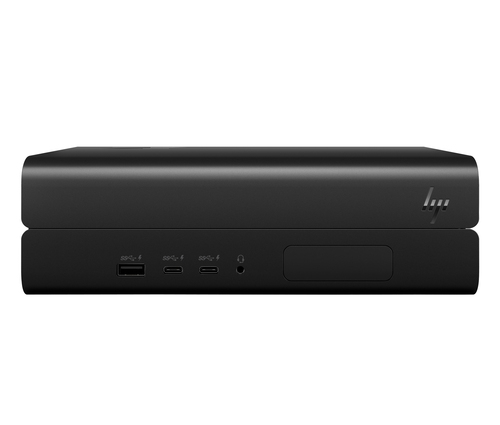

Ports & interfaces
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
|---|
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Combo headphone/mic port | Yes |
|---|
Power
| Power supply | 280 W |
|---|
| Power supply input voltage | 100 - 240 V |
|---|
| Power supply input frequency | 50 - 60 Hz |
|---|
Design
| Chassis type | Mini PC |
|---|
| Product colour | Black |
|---|
| Intel® vPro™ Platform Eligibility | No |
|---|
| Introduction year | 2024 |
|---|
Software
| Operating system installed | Windows 11 Pro |
|---|
Display
| Display included | No |
|---|
Brand-specific features
| HP Support Assistant | Yes |
|---|
Audio
| Audio chip | Realtek ALC3205-VA2-CG |
|---|
Weight & dimensions
| Width | 211 mm |
|---|
| Depth | 218 mm |
|---|
| Height | 69 mm |
|---|
| Weight | 2.4 kg |
|---|
Packaging data
| Package width | 499 mm |
|---|
| Package depth | 170 mm |
|---|
| Package height | 298 mm |
|---|
| Package weight | 4.8 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
