Harman

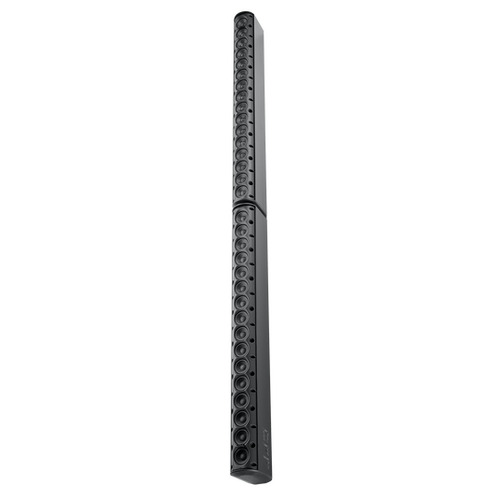

JBL CBT 200LA-1 loudspeaker Full range Black Wired 650 W

Part number CBT 200LA-1

2M TALL 32 ELEMENT LINE 200CM 6.6FT TALL CONSTANT

  • Patented Constant Beamwidth Technology™
  • 200 cm (6.6 ft) height
  • Switchable vertical pattern coverage
Manufacturer
Harman
Part number
CBT 200LA-1
Condition
New
Category
Professional Sound › Pro Sound & ENT

Overview

The CBT 200LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency and coverage options, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent coverage without the inconsistent vertical beaming, uneven coverage, and out-of-coverage lobing that are typical of both powered and nonpowered column speakers. The CBT 200LA-1 assembly consists of a top and a bottom loudspeaker module that, when bolted together end-to-end during installation, form a 32-driver array that is 200 cm (6.6 feet) tall. The height provides excellent pattern control over a wide bandwidth and superb throw capability. The combination of sound quality, pattern control, and compact design makes CBT 200LA-1 ideal for a wide variety of venues, including highly reverberant facilities and those requiring especially long throw or pattern control down to very low frequencies. Venue types include transit centers, conference centers, cathedrals, multipurpose spaces, gymnasiums, and theme parks, among many others. The slim, compact design fits well into virtually any architectural decor. CBT 200LA-1 can be installed either indoors or outdoors. The drivers are weathertreated, the fiberglass reinforced ABS cabinet is excellent for outdoor applications, external screws are stainless steel, terminals are outdoor-capable, optional MTC-PC2 terminal panel cover can provide additional terminal protection, the painted aluminum grille resists rusting, and the grille backing breaks up driving rain. With MTC-PC2, the speaker is rated IP-55 per IEC529.

Specifications

Loudspeakers
Speaker typeFull range
Speaker placementFloor
Speaker positionCenter
Number of drivers32
Driver diameter5 cm
Driver diaphragm materialAluminium
Audio
RMS rated power650 W
Peak Music Power Output (PMPO)2600 W
Speakers RMS power400 W
Frequency range80 - 20000 Hz
Impedance8 Ω
Sensitivity95 dB
Signal-to-Noise Ratio (SNR)123 dB
Performance
Recommended usageUniversal
Number of speakers1
Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
Plug and PlayYes
Amplifier
AmplifierNo
Ports & interfaces
Connectivity technologyWired
Power
Transformer taps120,15,30,60 W
Transformer voltage70 V
Weight & dimensions
Width98.5 mm
Depth153 mm
Height2000 mm
Weight14.6 kg
Packaging data
Package typeBox
Packaging content
Mounting brackets includedYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
