Harman

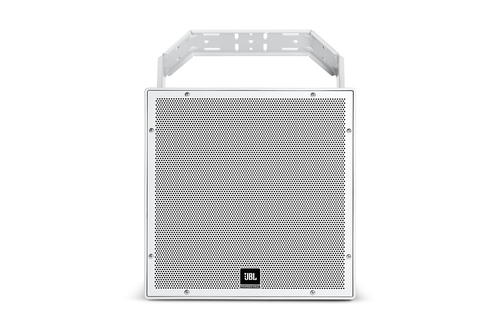

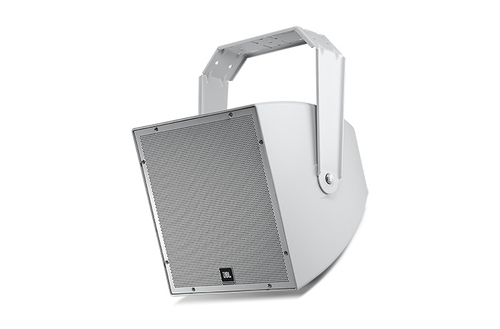

JBL AWC159 loudspeaker 2-way Grey 500 W
Part number AWC159
ALL WEATHER COMPACT LOUDSPEAKER ALL WEATHER COMPACT 2-WAY COAXIAL
- Highly weather-resistant IP56 rating
- Consistent 90° x 90° broadband pattern control
- 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil
- 38 mm (1.5 in) diaphragm compression driver with patented design and high temperature polymer diaphragm
- Extraordinary clarity for speech, with extended frequency response for music
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- 500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
- High-power passive crossover network
- 52 Hz – 20 kHz frequency response
- 300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance
- Manufacturer
- Harman
- Part number
- AWC159
- Condition
- New
- Category
- Accessories › A/V Accessories
Overview
The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.
Specifications
| Speaker type | 2-way |
|---|---|
| Speaker placement | Ceiling-mountable |
| Number of drivers | 2 |
| Tweeter | Yes |
| Number of tweeter drivers | 1 |
| Tweeter diameter | 3.8 cm |
| Tweeter diameter (imperial) | 3.81 cm (1.5") |
| Woofer | Yes |
| Number of woofer drivers | 1 |
| Woofer diameter | 38 cm |
| Woofer diameter (imperial) | 38.1 cm (15") |
| RMS rated power | 500 W |
|---|---|
| Peak Music Power Output (PMPO) | 2000 W |
| Frequency range | 52 - 18000 Hz |
| Impedance | 8 Ω |
| Sensitivity | 98 dB |
| Crossover frequency | 1500 Hz |
| Product colour | Grey |
|---|---|
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP56 |
| Width | 486 mm |
|---|---|
| Depth | 479 mm |
| Height | 486 mm |
| Weight | 20.6 kg |
| Quantity per pack | 1 pc(s) |
|---|
