Overview

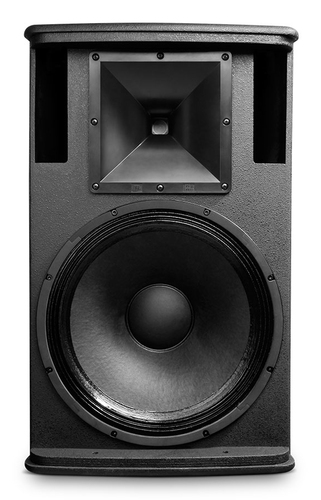

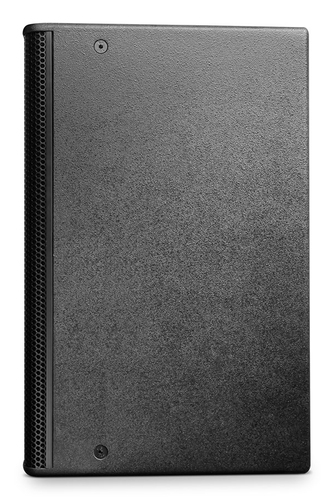

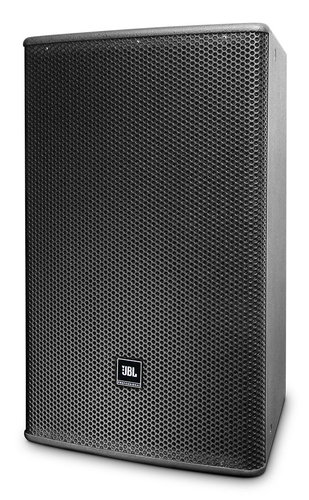

AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
Specifications
Loudspeakers
| Speaker type | 2-way |
|---|
| Number of drivers | 2 |
|---|
| Tweeter | Yes |
|---|
| Number of tweeter drivers | 1 |
|---|
| Tweeter diameter | 2.5 cm |
|---|
| Tweeter diameter (imperial) | 2.54 cm (1") |
|---|
| Woofer | Yes |
|---|
| Number of woofer drivers | 1 |
|---|
| Woofer diameter | 38.4 cm |
|---|
| Woofer diameter (imperial) | 38.1 cm (15") |
|---|
Audio
| RMS rated power | 350 W |
|---|
| Speakers RMS power | 1400 W |
|---|
| Frequency range | 60 - 20000 Hz |
|---|
| Impedance | 8 Ω |
|---|
| Sensitivity | 98 dB |
|---|
| Crossover frequency | 1500 Hz |
|---|
| Sound pressure level (max) | 122 dB |
|---|
Performance
| Recommended usage | Universal |
|---|
| Product colour | Black |
|---|
| Housing material | Plywood |
|---|
Weight & dimensions
| Width | 420 mm |
|---|
| Depth | 445 mm |
|---|
| Height | 680 mm |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
