GIGABYTE Z890 AI TOP
View 1 View 2 View 3 View 4 View 5 View 6
GIGABYTE

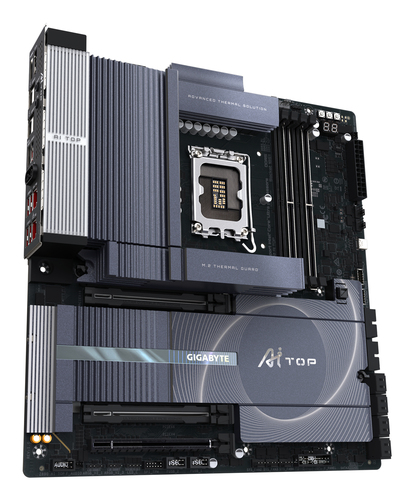

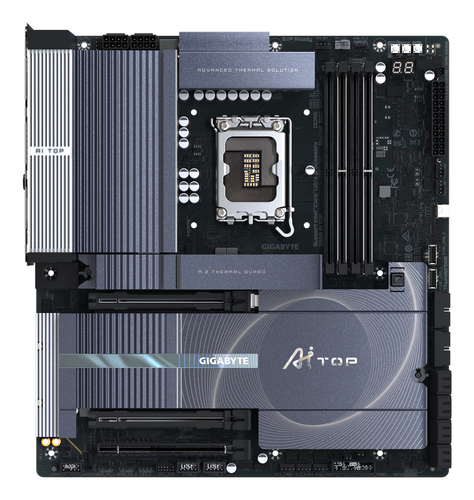

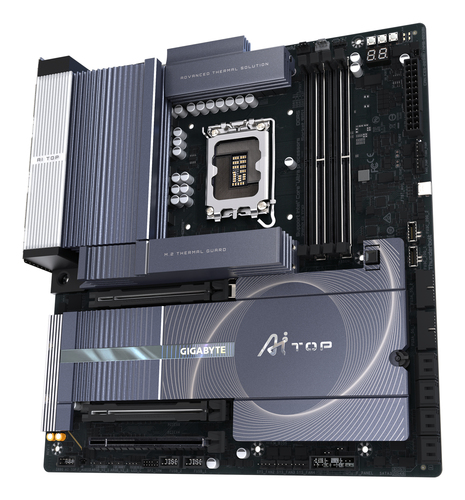

GIGABYTE Z890 AI TOP Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 9500MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0 M.2, Wi-Fi 7, 10 GbE LAN, Thunderbolt 5

Part number Z890 AI TOP

Z890 AI TOP

  • Training your own AI on your desk
  • Supports Intel Core Ultra processors (Series 2)
  • Twin Digital 16+1+2 phases VRM solution
  • Ultimate Scalability: 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
  • Next-gen Connectivity: Dual Thunderbolt 5 Type-C with DP-Alt, HDMI

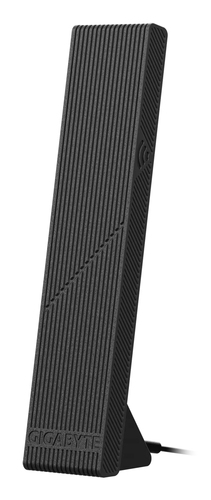

  • Blazing Fast Networks: Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
  • D5 Bionic Corsa for Infinite Memory Performance
  • AORUS AI BOOST: Auto-Overclocking Software by AI models
  • Premium Compatibility: 4*DDR5 with XMP Memory Module Support
  • Reinforced Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL
Manufacturer
GIGABYTE
Part number
Z890 AI TOP
Condition
New
Category
System Components › Motherboards
1GPA category
Hardware

Overview

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Processor
Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,8933,9066,9200,9333,9466,9500 MHz
Supported memory clock speed (max)9500 MHz
Maximum internal memory256 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported8
Number of storage drives supported12
RAID supportYes
RAID levels0, 1, 5, 10
Graphics
Parallel processing technology supportNot supported
Maximum resolution7680 x 4320 pixels
HDCPYes
DirectX version12.0
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 connectors2
Number of SATA III connectors8
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors6
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)2
TPM connectorYes
Thunderbolt headers1
12V power connectorYes
Number of water pump connectors3
Number of temperature sensor headers2
Number of noise detection headers1
RGB LED pin headerYes
Number of RGB LED pin headers4

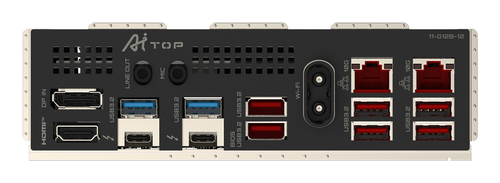

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6
Ethernet LAN (RJ-45) ports2
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version2.1
Headphone outputs1
Line-inYes
Thunderbolt ports quantity2
WiFi-AP antenna jack2
Network
Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
LAN controllerMarvell AQtion AQC113C
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller modelIntel Wi-Fi 7 BE200
BluetoothYes
Bluetooth version5.4
Features
Motherboard chipsetIntel Z890
Audio chipESS ES9260
Audio output channels2.0 channels
Product colourBlack
PC health monitoringFan, Temperature, Voltage, Water cooling
Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Power source typeATX
Windows operating systems supportedWindows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots2
Number of M.2 (M) slots4
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
4th M.2 largest key size22110
4th M.2 highest PCI Express generation4.0
BIOS
BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Logistics data
Country of originTaiwan
Products per shipping (inner) case1 pc(s)
Battery
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Packaging data
Package width400 mm
Package depth335 mm
Package height430 mm
Package weight4.1 kg
Weight & dimensions
Width305 mm
Depth285 mm
Height35 mm
Packaging content
Batteries includedYes
Antenna includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight3.53 kg
Technical details
Warranty period3 year(s)
