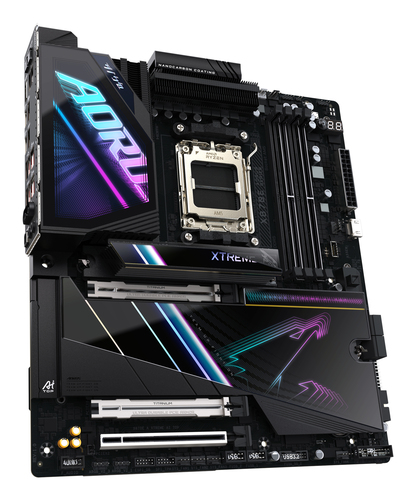

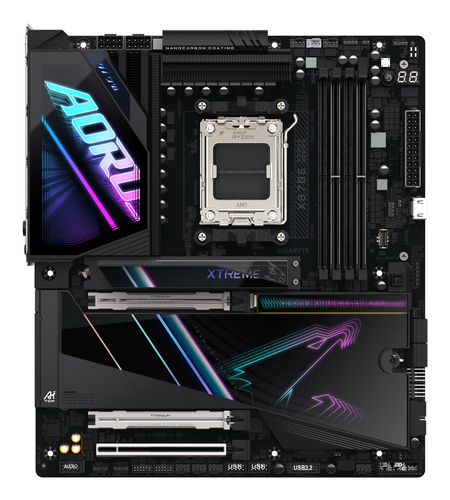

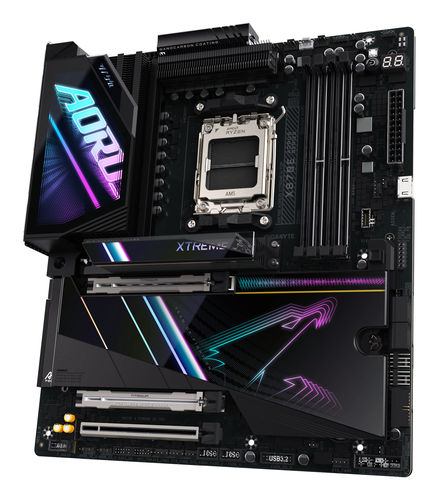

GIGABYTE X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4
Part number X870EAXTREMEAITOP
X870E A XTREME AI TOP GIGABYTE X870E A XTREME AI TOP
- Training your own AI on your desk
- DDR5 OC up to 8800MT/s
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
- DDR Wind Blade : Enhanced Active Cooling for Memory Modules
- M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks

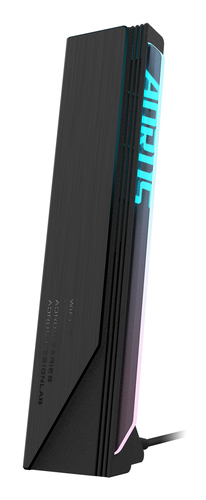

- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 / 4.0
- Manufacturer
- GIGABYTE
- Part number
- X870EAXTREMEAITOP
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| Supported memory clock speed (max) | 8800 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Parallel processing technology support | Not supported |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 8 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| TPM connector | Yes |
| Number of water pump connectors | 5 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

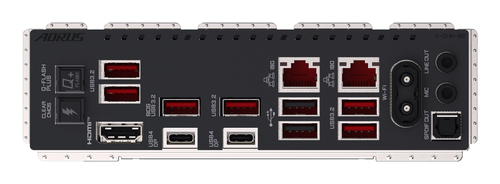

| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Marvell AQtion AQC113C |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Motherboard chipset | AMD X870E |
|---|---|
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | Taiwan |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
|---|---|
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 381 mm |
|---|---|
| Package depth | 311 mm |
| Package height | 107 mm |
| Package weight | 4.5 kg |
| Width | 305 mm |
|---|---|
| Depth | 269 mm |
| Height | 35 mm |
| Batteries included | Yes |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Weight | 3.76 kg |
|---|
| Warranty period | 3 year(s) |
|---|
