GIGABYTE

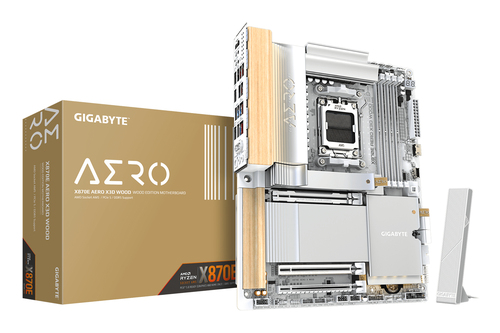

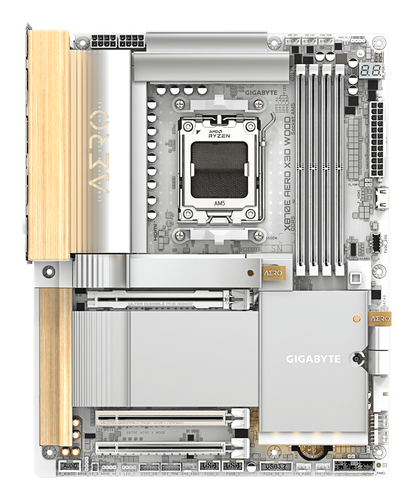

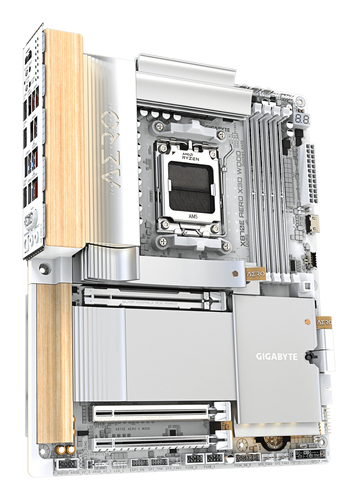

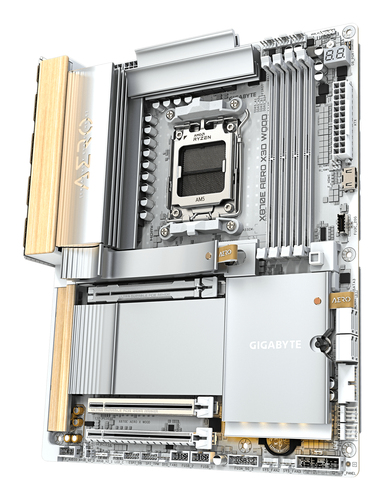

GIGABYTE X870E AERO X3D WOOD Motherboard
Part number X870E AERO X3D WOOD
X870E AERO X3D WOOD 16+2+2 POWER PHASE AM5
- Raw textures reveal timeless elegance
- X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI
- Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks

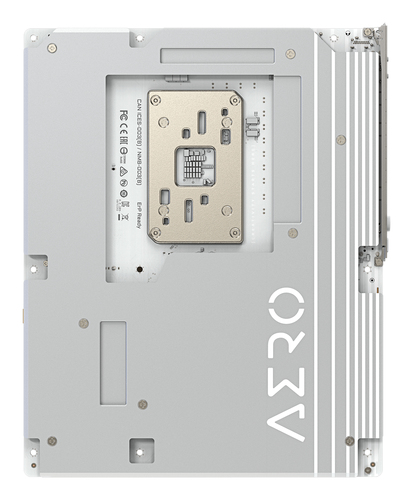

- PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability
- Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
- Fast Networking: Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

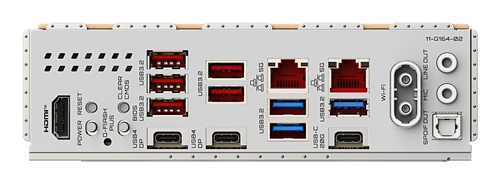

- Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
- Manufacturer
- GIGABYTE
- Part number
- X870E AERO X3D WOOD
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Specifications
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Supported memory clock speed (max) | 9000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.3 |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of water pump connectors | 2 |
| Number of temperature sensor headers | 2 |
| Number of noise detection headers | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8126 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7927 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Motherboard chipset | AMD X870E |
|---|---|
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | White |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Products per shipping (inner) case | 1 pc(s) |
|---|
| Battery weight | 3 g |
|---|---|
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 341 mm |
|---|---|
| Package depth | 306 mm |
| Package height | 89 mm |
| Package weight | 3.67 kg |
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
| Height | 35 mm |
| Batteries included | Yes |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
| Weight | 3.17 kg |
|---|
| Warranty period | 3 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
