Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor socket | LGA 1700 |
|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
|---|
| Supported processor sockets | LGA 1700 |
|---|
| Maximum internal memory supported by processor | 128 GB |
|---|
Memory
| Supported memory types | DDR5-SDRAM |
|---|
| Number of memory slots | 4 |
|---|
| Memory slots type | DIMM |
|---|
| Memory channels | Dual-channel |
|---|
| ECC сompatibility | Non-ECC |
|---|
| Supported memory clock speeds | 4000,4800,5200,5600 MHz |
|---|
| Supported memory clock speed (max) | 5600 MHz |
|---|
| Maximum internal memory | 128 GB |
|---|
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB |
|---|
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|
| Supported storage drive interfaces | M.2, SATA III |
|---|
| Number of HDDs supported | 4 |
|---|
| Number of storage drives supported | 6 |
|---|
| RAID support | Yes |
|---|
| RAID levels | 0, 1, 5, 10 |
|---|
Graphics
| DirectX version | 12.0 |
|---|
Internal I/O
| USB 2.0 connectors | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
|---|
| Number of SATA III connectors | 4 |
|---|
| Total number of SATA connectors | 4 |
|---|
| Audio connector | Yes |
|---|
| Front panel audio connector | Yes |
|---|
| ATX Power connector (24-pin) | Yes |
|---|
| CPU fan connector | Yes |
|---|
| Number of chassis fan connectors | 2 |
|---|
| EPS power connector (8-pin) | Yes |
|---|
| Number of COM connectors | 2 |
|---|
| Thunderbolt headers | 2 |
|---|

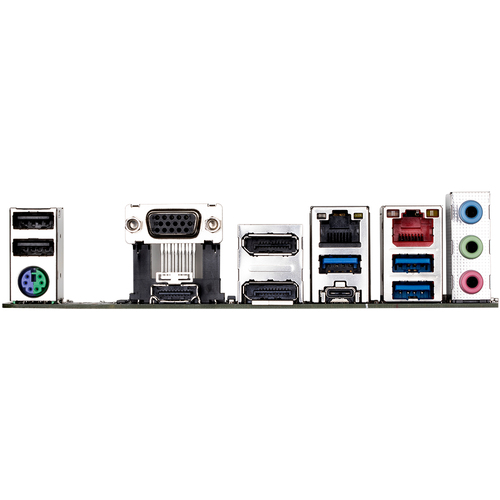

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| PS/2 ports quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.1 |
|---|
| DisplayPorts quantity | 2 |
|---|
| DisplayPort version | 1.2 |
|---|
| Headphone outputs | 2 |
|---|
| Microphone in | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
|---|
| Wi-Fi | No |
|---|
Features
| Motherboard chipset | Intel Q670 |
|---|
| Audio output channels | 7.1 channels |
|---|
| Product colour | Brown |
|---|
| Component for | PC |
|---|
| Motherboard form factor | micro ATX |
|---|
| Motherboard chipset family | Intel |
|---|
| Cooling type | Active |
|---|
| Power source type | ATX |
|---|
| Windows operating systems supported | Windows 10, Windows 11 |
|---|
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 2 |
|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|
| Number of M.2 (M) slots | 2 |
|---|
BIOS
| BIOS type | UEFI |
|---|
| BIOS memory size | 256 Mbit |
|---|
| ACPI version | 5.0 |
|---|
| Clear CMOS jumper | Yes |
|---|
| Clear CMOS button | Yes |
|---|
| Desktop Management Interface (DMI) version | 2.7 |
|---|
Logistics data
| Country of origin | China |
|---|
| Products per shipping (inner) case | 1 pc(s) |
|---|
Battery
| Battery weight | 3 g |
|---|
| Lithium weight per battery | 0.07 g |
|---|
| Number of battery cells | 1 |
|---|
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|
| Battery type | CR2032 |
|---|
Packaging data
| Package width | 265 mm |
|---|
| Package depth | 265 mm |
|---|
| Package height | 54 mm |
|---|
| Package weight | 1.02 kg |
|---|
Weight & dimensions
| Width | 244 mm |
|---|
| Depth | 244 mm |
|---|
| Height | 35 mm |
|---|
Packaging content
| Cables included | SATA |
|---|
| Batteries included | Yes |
|---|
| Drivers included | Yes |
|---|
Technical details
| Warranty period | 3 year(s) |
|---|
