GIGABYTE GC-WBAX210 network card Internal WLAN / Bluetooth 2400 Mbit/s
Part number GC-WBAX210

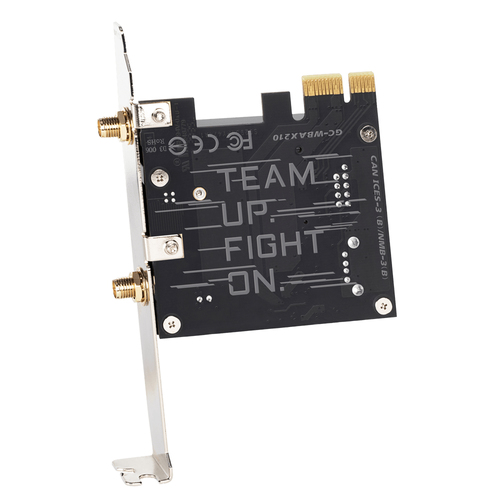

GIGABYTE GC-WBAX210 (2X2 802.11AX TRI-BAND WIFI + BLUETOOTH 5.2 PCIE EXPANSION C
- Intel® WI-FI 6E AX210 module built-in
- Dedicated spectrum in 6GHz band for maximum speed and ultra-low latencies
- Support dual-stream Wireless in the 2.4GHz, 5GHz and 6GHz bands
- IEEE 802.11.acR2+ax compliant
- High speed wireless connection up to 2400Mbps
- Fully qualified BLUETOOTH 5.2
- MU-MIMO TX/RX
- Paired with AORUS high performance 2Tx2R antenna
- PCIe x1 interface card
- Manufacturer
- GIGABYTE
- Part number
- GC-WBAX210
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Smashes the GbE Barrier!
2x2 802.11ax Tri-Band WIFI + BLUETOOTH 5.2 card GC-WBAX210 is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ax 160MHz Tri-Band WIFI and BLUETOOTH 5.2 connectivity.

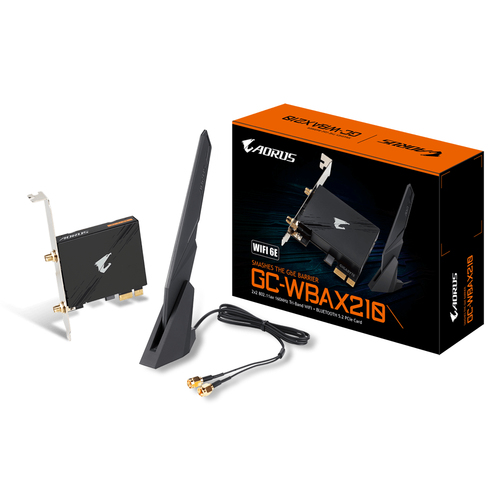

AORUS Antenna Supports Tri-Band with Better WIFI Signal
- All new antenna supported Tri-band 802.11ax 2.4GHz / 5GHz / 6GHz. Better signal strength compared to traditional antenna design
- AORUS Antenna with smart antenna function for the best WIFI signal transmitting
- Multiple angle tilt and magnetic base for the best signal strength direction and location
WIFI 6E Advantage
Spectrum congestion is huge problem in current WIFI environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is extended standard to WIFI 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before.
Specifications
| Connectivity technology | Wireless |
|---|---|
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| Maximum data transfer rate | 2400 Mbit/s |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w |
| Wi-Fi | Yes |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Frequency range | 2.4 - 6 GHz |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Security algorithms | EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA2, WPA3 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| LAN controller | Intel AX210 |
| Component for | PC |
|---|---|
| Product colour | Black |
| Internal | Yes |
| Antenna | Yes |
| Antenna design | External |
| Antenna type | 2x2 |
| Chipset | Intel Wi-Fi 6E AX210 |
| Quick installation guide | Yes |
|---|
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
