Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
Processor
| Processor manufacturer | AMD |
|---|
| Processor socket | Socket AM5 |
|---|
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
|---|
| Supported processor sockets | Socket AM5 |
|---|
Memory
| Supported memory types | DDR5-SDRAM |
|---|
| Number of memory slots | 4 |
|---|
| Memory slots type | DIMM |
|---|
| Memory channels | Dual-channel |
|---|
| ECC сompatibility | Non-ECC |
|---|
| Supported memory clock speeds | 7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
|---|
| Supported memory clock speed (max) | 7600 MHz |
|---|
| Maximum internal memory | 256 GB |
|---|
| Unbuffered memory | Yes |
|---|
| Maximum internal memory per slot | 64 GB |
|---|
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|
| Supported storage drive interfaces | M.2, SATA III |
|---|
| Number of HDDs supported | 4 |
|---|
| Number of storage drives supported | 7 |
|---|
| RAID support | Yes |
|---|
| RAID levels | 0, 1, 10 |
|---|
Graphics
| Parallel processing technology support | Not supported |
|---|
| Maximum resolution | 4096 x 2160 pixels |
|---|
| HDCP | Yes |
|---|
| DirectX version | 12.0 |
|---|
| Discrete graphics support | Yes |
|---|
Internal I/O
| USB 2.0 connectors | 3 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
|---|
| Number of SATA III connectors | 4 |
|---|
| Front panel audio connector | Yes |
|---|
| Front panel connector | Yes |
|---|
| ATX Power connector (24-pin) | Yes |
|---|
| CPU fan connector | Yes |
|---|
| Number of CPU fan connectors | 2 |
|---|
| Number of chassis fan connectors | 3 |
|---|
| EPS power connector (8-pin) | Yes |
|---|
| TPM connector | Yes |
|---|
| Serial port headers | 1 |
|---|
| 12V power connector | Yes |
|---|
| Number of water pump connectors | 2 |
|---|
| RGB LED pin header | Yes |
|---|
| Number of RGB LED pin headers | 4 |
|---|

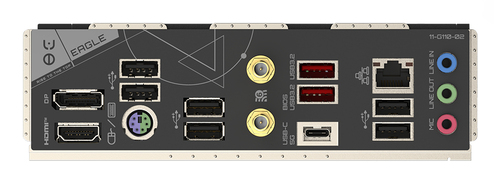

Rear panel I/O ports
| USB 2.0 ports quantity | 6 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| PS/2 ports quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| DisplayPort version | 1.4 |
|---|
| Headphone outputs | 1 |
|---|
| Line-in | Yes |
|---|
| Microphone in | Yes |
|---|
| WiFi-AP antenna jack | 2 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet interface type | Gigabit Ethernet |
|---|
| LAN controller | Realtek RTL8111H |
|---|
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|---|
| WLAN controller model | Realtek RTL8852CE |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.3 |
|---|
Features
| Motherboard chipset | AMD B650 |
|---|
| Audio chip | Realtek ALC897 |
|---|
| Audio output channels | 7.1 channels |
|---|
| Product colour | Brown |
|---|
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
|---|
| Component for | PC |
|---|
| Motherboard form factor | ATX |
|---|
| Motherboard chipset family | AMD |
|---|
| Power source type | ATX |
|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
|---|
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 3 |
|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|
| Number of M.2 (M) slots | 3 |
|---|
| 1st M.2 largest key size | 25110 |
|---|
| 1st M.2 highest PCI Express generation | 5.0 |
|---|
| 2nd M.2 largest key size | 22110 |
|---|
| 2nd M.2 highest PCI Express generation | 4.0 |
|---|
| 3rd M.2 largest key size | 22110 |
|---|
| 3rd M.2 highest PCI Express generation | 4.0 |
|---|
BIOS
| BIOS type | UEFI AMI |
|---|
| BIOS memory size | 256 Mbit |
|---|
| ACPI version | 5.0 |
|---|
| Clear CMOS jumper | Yes |
|---|
| Desktop Management Interface (DMI) version | 2.7 |
|---|
| System Management BIOS (SMBIOS) version | 2.7 |
|---|
Logistics data
| Country of origin | China |
|---|
| Products per shipping (inner) case | 1 pc(s) |
|---|
Battery
| Battery weight | 3 g |
|---|
| Lithium weight per battery | 0.07 g |
|---|
| Number of battery cells | 1 |
|---|
| Battery capacity | 220 mAh |
|---|
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|
| Battery type | CR2032 |
|---|
Packaging data
| Package width | 335 mm |
|---|
| Package depth | 270 mm |
|---|
| Package height | 80 mm |
|---|
| Package weight | 1.94 kg |
|---|
Weight & dimensions
| Width | 305 mm |
|---|
| Depth | 244 mm |
|---|
| Height | 35 mm |
|---|
Packaging content
| Batteries included | Yes |
|---|
| Antenna included | Yes |
|---|
| Screws included | Yes |
|---|
| Bundled software | Norton Internet Security (OEM version)
LAN bandwidth management software |
|---|
Technical details
| Warranty period | 3 year(s) |
|---|
