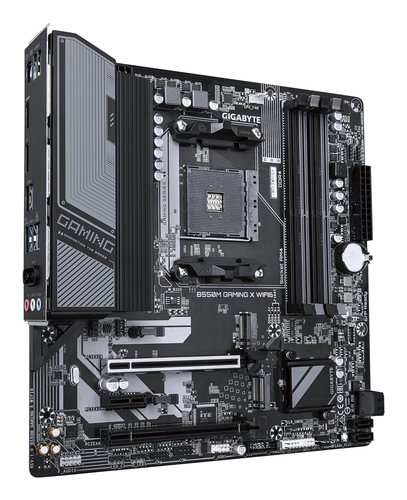

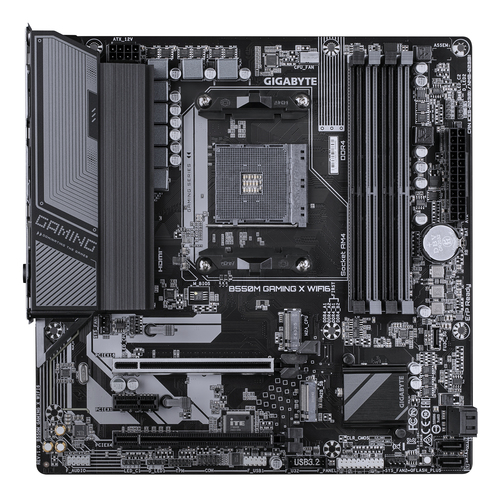

GIGABYTE B550M GAMING X WIFI6
View 1 View 2 View 3 View 4
GIGABYTE

GIGABYTE B550M GAMING X WIFI6 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 6, 1GbE LAN, USB 3.2 Gen 1

Part number B550M GAMING X WIFI6

B550M GAMING X WIFI6 AMD B550 M-ATX AM4 (RYZEN 5000/3000/4000)

  • AMD Socket AM4 : Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
  • Digital twin 5+3 phases VRM solution
  • Dual Channel DDR: 4*DIMMs
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch: PCIe slots with Quick Release Design
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
  • Efficient Thermal: VRM Thermal Armor Advanced
  • Fast Networking: GbE LAN & Wi-Fi 6
  • Extended Connectivity: HDMI, Displayport
  • PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Manufacturer
GIGABYTE
Part number
B550M GAMING X WIFI6
Condition
New
Category
System Components › Motherboards
1GPA category
Hardware

Overview

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Processor
Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor socketsSocket AM4
Memory
Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2667,2933,3200 MHz
Supported memory clock speed (max)3200 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Maximum internal memory per slot32 GB
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 10
Graphics
Parallel processing technology supportNot supported
On-board graphics cardNo
Maximum resolution5120 x 2880 pixels
HDCPYes
DirectX version12.0
Internal I/O
USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors2
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
TPM connectorYes
Serial port headers1
RGB LED pin headerYes
Number of RGB LED pin headers5

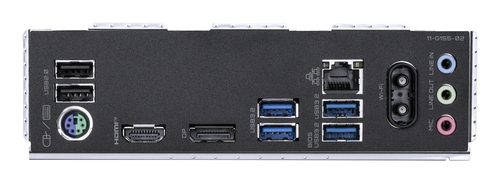

Rear panel I/O ports
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
Network
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111H
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller modelRealtek RTL8851BE
BluetoothYes
Bluetooth version5.3
Features
Motherboard chipsetAMD B550
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
Product colourDark brown
PC health monitoringFan, Temperature, Voltage
Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation3.0
BIOS
BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7
Logistics data
Products per shipping (inner) case1 pc(s)
Battery
Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032
Packaging data
Package width270 mm
Package depth268 mm
Package height68 mm
Package weight1.24 kg
Weight & dimensions
Width244 mm
Depth244 mm
Height35 mm
Packaging content
Batteries includedYes
Antenna includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Other features
Weight1.14 kg
Technical details
Warranty period3 year(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
