GIGABYTE

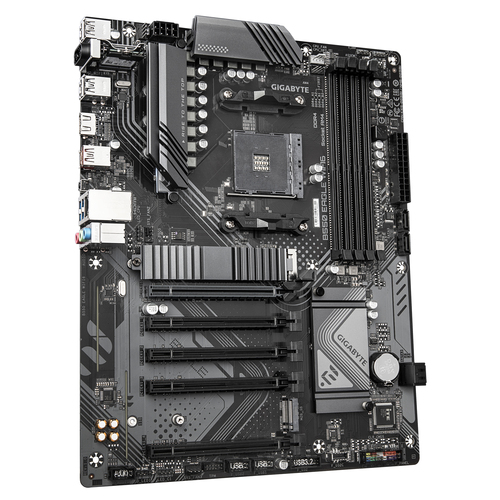

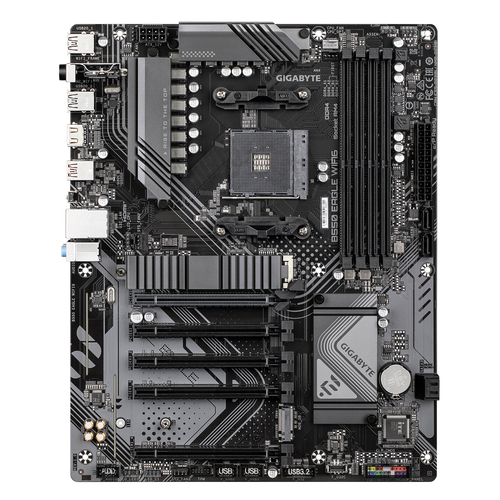

GIGABYTE B550 EAGLE WIFI6 Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2
Part number B550 EAGLE WIFI6
B550 EAGLE WIFI6 AMD B550 ATX AM4 (RYZEN 5000/3000/4000)
AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Digital twin 10+3+1 phases VRM solution Dual Channel DDR4: 4*DIMMs with AMD EXPO Memory Module Support EZ-Latch: PCIe slots with Quick Release Design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1 Efficient Thermal: VRM Thermal Armor Advanced Fast Networking: GbE LAN & Wi-Fi 6 Extended Connectivity: HDMI, Displayport PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Manufacturer GIGABYTE
Part number B550 EAGLE WIFI6
Condition New
Category System Components › Motherboards 1GPA category Hardware
Manufacturer MSRP
$119.99
On 1GPA? Sign in to see your contract price.
Stock and final pricing are confirmed by your rep on the quote. Catalog dated September 30, 2026.
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
Processor
Processor manufacturer AMD Processor socket Socket AM4 Compatible processor series AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series Supported processor sockets Socket AM4
Memory
Supported memory types DDR4-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel ECC сompatibility ECC & Non-ECC Supported memory clock speeds 3200,2933,2667,2400,2133 MHz Supported memory clock speed (max) 3200 MHz Maximum internal memory 128 GB Unbuffered memory Yes Maximum internal memory per slot 32 GB
Storage controllers
Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, PCI Express 4.0, SATA III Number of HDDs supported 4 Number of storage drives supported 6 RAID support Yes RAID levels 0, 1, 10
Graphics
Parallel processing technology support Not supported Maximum resolution 4096 x 2160 pixels HDCP Yes DirectX version 12.0
Internal I/O
USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Number of SATA III connectors 4 Front panel audio connector Yes Front panel connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of CPU fan connectors 2 Number of chassis fan connectors 3 EPS power connector (8-pin) Yes Number of EPS power connectors (8-pin) 1 TPM connector Yes Number of water pump connectors 1 RGB LED pin header Yes Number of RGB LED pin headers 5

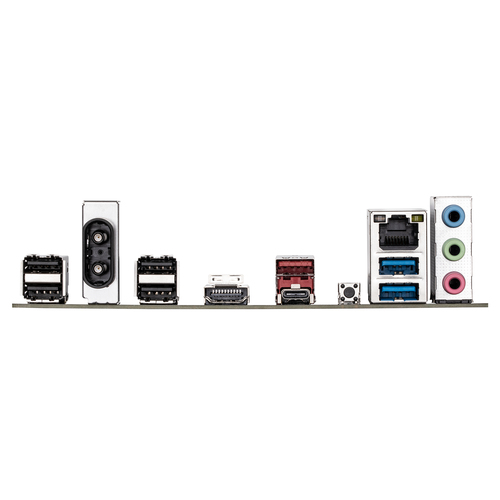

Rear panel I/O ports
USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 Headphone outputs 1 Line-in Yes Microphone in Yes WiFi-AP antenna jack 2
Network
Ethernet LAN Yes Ethernet interface type Gigabit Ethernet LAN controller Realtek RTL8111H Wi-Fi Yes Top Wi-Fi standard Wi-Fi 6 (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) WLAN controller model Realtek RTL8851BE Bluetooth Yes Bluetooth version 5.3
Features
Motherboard chipset AMD B550 Audio chip Realtek ALC897 Audio output channels 7.1 channels Product colour Dark brown PC health monitoring Fan, Temperature, Voltage, Water cooling Component for PC Motherboard form factor ATX Motherboard chipset family AMD Cooling type Passive Power source type ATX Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots 4 PCI Express x16 (Gen 4.x) slots 1 Number of M.2 (M) slots 2 1st M.2 largest key size 22110 1st M.2 highest PCI Express generation 4.0 2nd M.2 largest key size 22110 2nd M.2 highest PCI Express generation 3.0
BIOS
BIOS type UEFI AMI BIOS memory size 128 Mbit ACPI version 5.0 Clear CMOS jumper Yes Desktop Management Interface (DMI) version 2.7 System Management BIOS (SMBIOS) version 2.7
Logistics data
Products per shipping (inner) case 1 pc(s)
Battery
Battery weight 3 g Lithium weight per battery 0.07 g Number of battery cells 1 Battery technology Lithium-Manganese Dioxide (LiMnO2) Battery type CR2032
Packaging data
Package width 335 mm Package depth 270 mm Package height 80 mm Package weight 1.48 kg
Weight & dimensions
Width 305 mm Depth 244 mm Height 35 mm
Packaging content
Batteries included Yes Antenna included Yes Screws included Yes Bundled software Norton® Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight 1.25 kg
Technical details
Warranty period 3 year(s)
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
