Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Specifications
Processor
| Processor manufacturer | AMD |
|---|
| Processor socket | Socket AM4 |
|---|
| Compatible processor series | AMD Ryzen 3000 Series |
|---|
| Maximum number of SMP processors | 1 |
|---|
| Supported processor sockets | Socket AM4 |
|---|
| Maximum internal memory supported by processor | 64 GB |
|---|
Memory
| Supported memory types | DDR4-SDRAM |
|---|
| Number of memory slots | 2 |
|---|
| Memory slots type | DIMM |
|---|
| Memory channels | Dual-channel |
|---|
| ECC сompatibility | ECC & Non-ECC |
|---|
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz |
|---|
| Maximum internal memory | 64 GB |
|---|
Storage controllers
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA |
|---|
| RAID support | Yes |
|---|
| RAID levels | 0, 1, 10 |
|---|
Graphics
| On-board graphics card | No |
|---|
| HDCP | Yes |
|---|
Internal I/O
| USB 2.0 connectors | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
|---|
| Number of SATA III connectors | 4 |
|---|
| ATX Power connector (24-pin) | Yes |
|---|
| Power fan connector | Yes |
|---|
| CPU fan connector | Yes |
|---|
| Number of chassis fan connectors | 2 |
|---|
| RGB LED pin header | Yes |
|---|

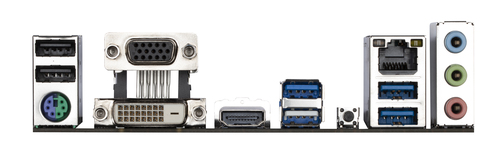

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| PS/2 ports quantity | 1 |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| DVI-D ports quantity | 1 |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet interface type | Gigabit Ethernet |
|---|
| Wi-Fi | No |
|---|
Features
| Motherboard chipset | AMD A520 |
|---|
| Audio output channels | 7.1 channels |
|---|
| Product colour | Black |
|---|
| Component for | PC |
|---|
| Motherboard form factor | micro ATX |
|---|
| Motherboard chipset family | AMD |
|---|
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 2 |
|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
|---|
| Number of M.2 (M) slots | 1 |
|---|
BIOS
| BIOS type | UEFI AMI |
|---|
| BIOS memory size | 128 Mbit |
|---|
| ACPI version | 5.0 |
|---|
| Clear CMOS jumper | Yes |
|---|
| Clear CMOS button | Yes |
|---|
| Desktop Management Interface (DMI) version | 2.7 |
|---|
| System Management BIOS (SMBIOS) version | 2.7 |
|---|
Logistics data
| Country of origin | China |
|---|
| Products per shipping (inner) case | 1 pc(s) |
|---|
| Harmonized System (HS) code | 84733020 |
|---|
Battery
| Battery weight | 3 g |
|---|
| Lithium weight per battery | 0.07 g |
|---|
| Number of battery cells | 1 |
|---|
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|
| Battery type | CR2032 |
|---|
Packaging data
| Package width | 265 mm |
|---|
| Package depth | 235 mm |
|---|
| Package height | 52 mm |
|---|
| Package weight | 740 g |
|---|
Weight & dimensions
| Width | 244 mm |
|---|
| Depth | 205 mm |
|---|
| Height | 35 mm |
|---|
Packaging content
| Batteries included | Yes |
|---|
Technical details
| Warranty period | 3 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
