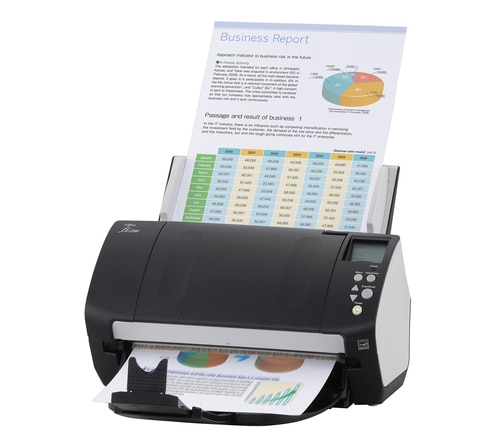

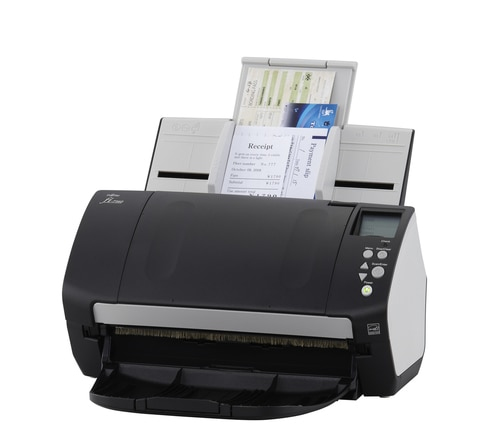

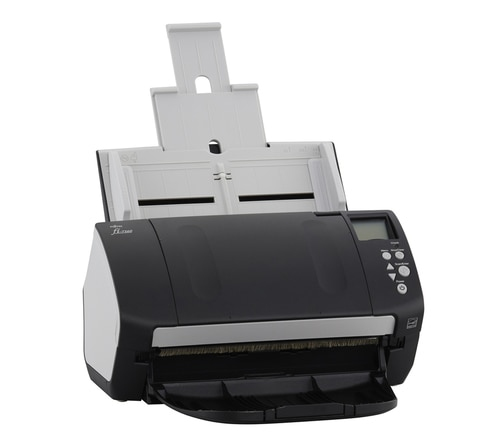

Fujitsu fi-7160 ADF scanner 600 x 600 DPI A4 Black, Grey
Part number PA03670-B065
FUJITSU FI-7160 TRADE COMPLIANT PROFESSIONAL DESKTOP
- Provides unmatched performance and market-leading document imaging capabilities with faster scanning speeds
- Features PaperStream Capture Pro software
- Fast, 60 ppm / 120 ipm scanning in color, grayscale and monochrome
- 80-sheets Automatic Document Feeder (ADF)
- Advanced paper handling technology for the ultimate in feeding reliability
- LED light-source
- Scanner Central Admin tool
- Embossed card scanning (1.4 mm thickness)
- Intelligent Sonic Paper Protection (iSOP)
- Industry leading service and maintenance options
- Manufacturer
- Fujitsu - Sourcing
- Part number
- PA03670-B065
- Condition
- New
- Category
- Imaging Devices › Scanners
- 1GPA category
- Hardware
Overview
The fi-7160 Deluxe Bundle combines two best-in-class products from Fujitsu Computer Products of America, Inc., the fi-7160 scanner and PaperStream Capture Pro, the high-quality, front end scanning software that will efficiently optimize your capture solution. Easy-to-use, and simple to set up, PaperStream Capture Pro enhances the fi-7160’s superior scanning abilities with features that include options for high level data extraction and indexing, the import of electronic images and support for multi-station licensing. Industry recognized image enhancement with PaperStream IP allows you to capture your data clearly, producing a sharp image. The fi-7160 Deluxe Bundle increases productivity without hidden costs, and helps you digitize documents efficiently.
Specifications
| Maximum scan size | 210 x 5588 mm |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Scanner type | ADF scanner |
|---|---|
| Product colour | Black, Grey |
| Display | LCD |
| Built-in display | Yes |
| Sensor type | CCD |
|---|---|
| Light source | White LED |
| Daily duty cycle (max) | 4000 pages |
| Scan drivers | ISIS, TWAIN |
| Built-in processor | Yes |
| Processor frequency | 2.5 MHz |
| Auto document feeder (ADF) input capacity | 80 sheets |
|---|
| Scanning media types supported | Labels, Plain paper, Plastic Card |
|---|---|
| Long-paper mode | Yes |
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4, A8 |
| Letter | Yes |
| Card thickness (max) | 1.4 mm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 5.59 m |
| Maximum scan area (ADF) | 216 x 356.6 mm |
| Minimum scan area (ADF) | 50.8 x 54 mm |
| USB port | Yes |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power supply type | AC |
|---|---|
| Power consumption (typical) | 38 W |
| Power consumption (standby) | 0.35 W |
| Sleep mode | Yes |
| Input voltage | 100 - 240 V |
| Power consumption (sleep) | 1.8 W |
| Width | 300 mm |
|---|---|
| Depth | 170 mm |
| Height | 163 mm |
| Weight | 4.2 kg |
| Cables included | AC, USB |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| ADF paper chute | Yes |
| Bundled software | PaperStream IP (TWAIN/ISIS) Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent |
| Sustainability certificates | ENERGY STAR |
|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64 |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Compliance certificates | RoHS |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
