Epson DC-21 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 2.0
Part number V12H758020
DC-21 DOCUMENT CAMERA, 1920 X 1080, 2 MEGAPIXELS, 1/2.7IN CMOS SENSOR, 30 FPS MA
25.4 / 2.7 mm (1 / 2.7") CMOS
2 MP
Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA)
Image freeze
Auto focus
Interface: USB 2.0
White
Manufacturer
Epson
Part number
V12H758020
Condition
New
Category
Accessories › Projector Accessories
Overview

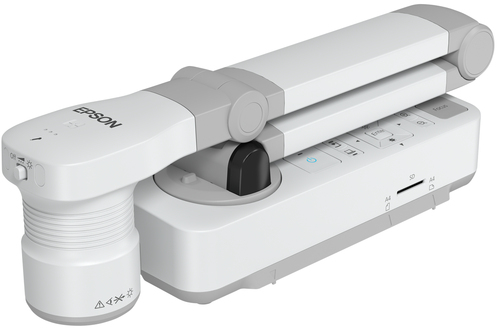

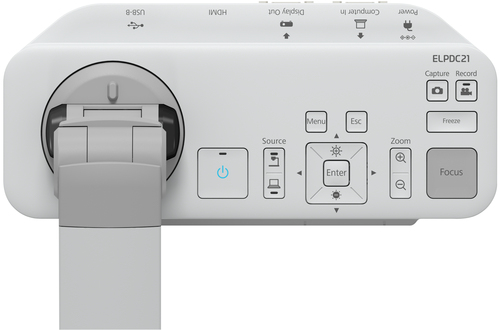

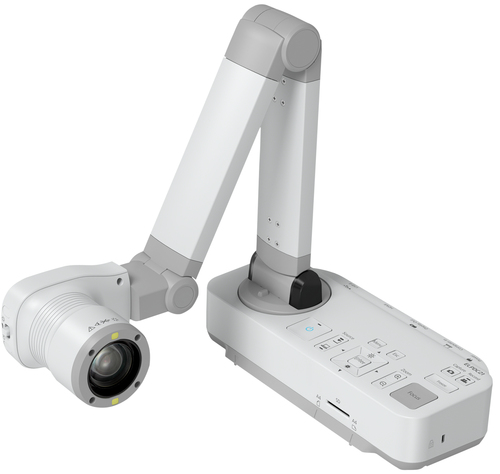

The HD quality document camera that makes ordinary lessons extraordinary.
Engage students like never before with the Epson® DC-21 document camera. This portable performer easily captures and displays books, 3D objects and experiments with amazing clarity, thanks to HD 1080p resolution, a large imaging sensor and HDMI® connectivity. Share the finest detail with 12x optical zoom and 10x digital zoom. Or, display magnified images with the microscope adapter. Record audio with video using the built-in microphone. At 30 fps, video playback is seamless. And, there are convenient Freeze and Capture buttons. Plus, you can save lessons to an SD card1 or computer.
Specifications
Camera
Effective sensor resolution
2 MP
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Sensor type
CMOS
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA)
Maximum frame rate
30 fps
White balance
Auto
Light exposure modes
Auto
Image freeze
Yes
Light source
LED
Lens system
Auto focus
Yes
Optical zoom
12x
Digital zoom
10x
Shooting area (WxD)
297 x 420 mm

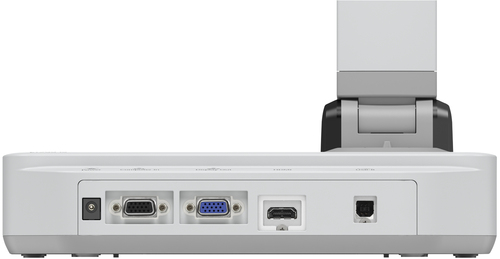

Ports & interfaces
Interface
USB 2.0
USB connector type
USB Type-B
VGA (D-Sub) input ports
1
VGA (D-Sub) output ports
1
Ethernet LAN
No
Technical details
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
Built-in microphone
Yes
Lamp type
LED
Lamps quantity
2 lamp(s)
Focus
Auto
Zoom capability
Auto
Image formats supported
JPG
Power
Power supply type
AC
Power consumption (typical)
0.5 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power consumption
13 mA
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Mac OS X 10.0 Cheetah, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Weight & dimensions
Width
270 mm
Depth
317 mm
Height
447 mm
Weight
2.6 kg
Packaging content
Manual
Yes
Cables included
AC, USB
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
