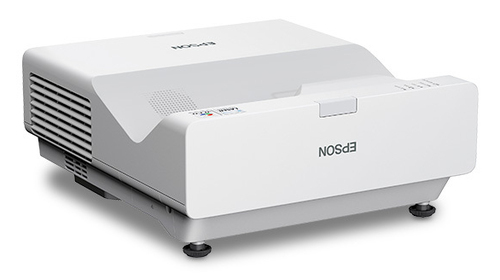

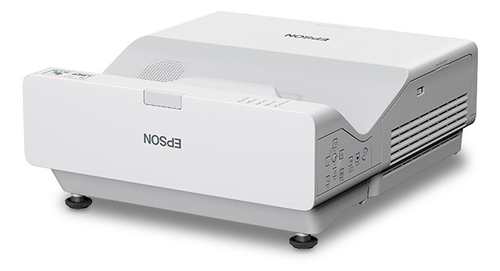

Epson PowerLite 760W Ultra short throw projector 4100 ANSI lumens 3LCD 1080p (1920x1080) White
Part number V11HA81020
POWERLITE 760W PROJECTOR
- Ultra bright images; 4,100 lumens
- 16:10 WXGA resolution for images up to 150"
- 20,000-hour laser lamp-free light source
- Images more than three times larger than a 75" flat panel
- Instant-on laser light source
- Manufacturer
- Epson
- Part number
- V11HA81020
- Condition
- New
- Category
- Presentation Devices › Projectors
- 1GPA category
- Hardware
Overview
The PowerLite® 760W will change the way you think about classroom displays. Delivering 4,100 lumens of color and white brightness1 and a high-quality 16:10 WXGA display up to 150"—more than three times larger than a 75" flat panel—this ultra short throw laser display encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom. Engineered for reliability, the PowerLite 760W has a 20,000-hour, virtually maintenance-free laser light source2, so there are no lamps to purchase or replace—ever. It also features wireless connectivity with casting capability from PCs, Mac® computers, Chromebooks, and Android® and iOS® devices3, as well as convenient split screen functionality4, making it easy for teachers and students to wirelessly display up to four screens simultaneously. With the ability to display on virtually any wall, the feature-rich PowerLite 760W allows teachers to maintain valuable whiteboard space while delivering stunning images that engage and inspire young learners.
- Convenient ultra short throw design — virtually eliminates shadowing
- Easily replace the PowerLite 585W/685W/725W — with compatible mounts5
- Connect and cast from up to 50 devices3 — free downloadable Epson iProjection™ software6 makes it easy to cast wirelessly from Chromebooks, iOS and Android devices, Mac computers and PCs3; with moderator feature7, teachers never lose control of the displayed content
- Built-in split screen4 — allows simultaneous display of up to four connected devices

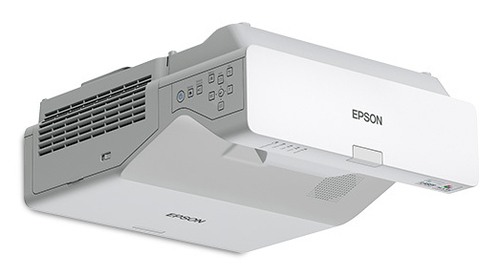

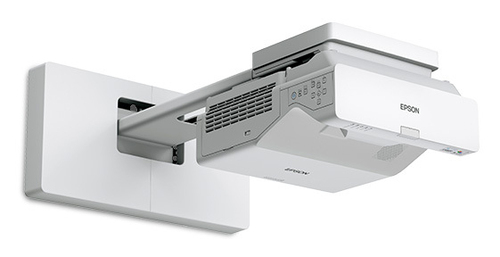

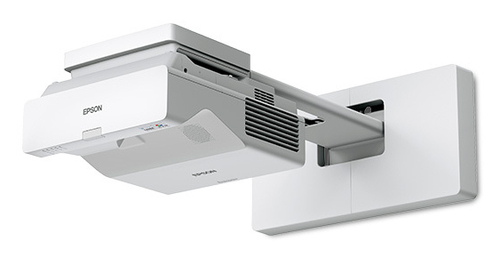

- Place it virtually anywhere — setup is easier than ever with the Epson Setting Assistant app8, plus the projector features 360-degree placement capabilities; mount or place the projector in any position, from landscape to portrait
Specifications
| Supported aspect ratios | 16:10 |
|---|---|
| Screen size compatibility | 1524 - 3810 mm (60 - 150") |
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2800 ANSI lumens |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Heat dissipation | 895 BTU/h |
| Light source type | Laser/LED hybrid |
|---|---|
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Focus | Manual |
|---|---|
| Fixed focal length | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.27 - 0.37:1 |
| Full HD | Yes |
|---|---|
| 3D | No |
| Video colour modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |

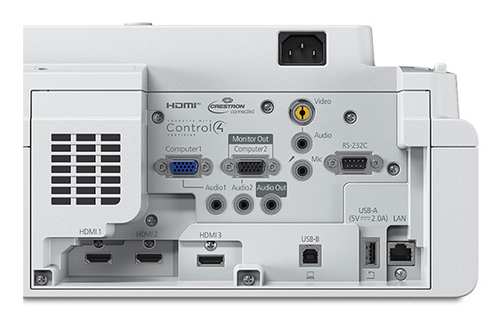

| USB 2.0 ports quantity | 3 |
|---|---|
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| Composite video in | 1 |
| DVI port | No |
| Consumer Electronics Control (CEC) support | Yes |
| Audio Return Channel (ARC) | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Card reader integrated | No |
|---|
| Noise level (economic mode) | 27 dB |
|---|---|
| On Screen Display (OSD) | Yes |
| Screen mirroring | Yes |
| Noise level | 37 dB |
| Built-in speaker(s) | Yes |
|---|---|
| RMS rated power | 16 W |
| Market positioning | Presentation |
|---|---|
| Product type | Ultra short throw projector |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in display | No |
|---|
| Power source | AC |
|---|---|
| Power consumption (typical) | 197 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 263 W |
| Power consumption (PowerSave) | 199 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Recommended gender | Any gender |
|---|
| Storage temperature (T-T) | -10 - 60 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 356 mm |
|---|---|
| Depth | 395 mm |
| Height | 133 mm |
| Weight | 5.9 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Warranty period | 5 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
