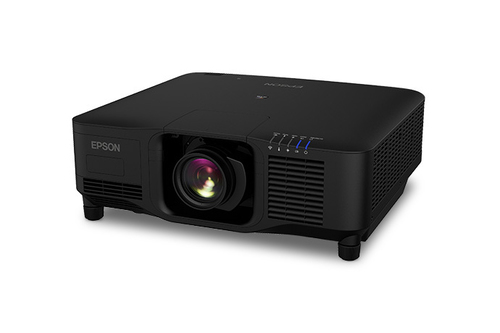

Epson EB-PU2220B Large venue projector 20000 ANSI lumens 3LCD WUXGA (1920x1200) Black
Part number V11HA66820
EPSON HIGH BRIGHTNESS EB-PU2220B PROJECTOR, 20,000 LUMENS, WUXGA, BLACK
- World's smallest and lightest 20,000-lumen projector
- 20,000 lumens of equal white and color brightness
- WUXGA with 4K Enhancement5
- 20,000-hour virtually maintenance-free laser light source
- Manufacturer
- Epson
- Part number
- V11HA66820
- Condition
- New
- 1GPA category
- Hardware
Overview
The world’s smallest and lightest 20,000-lumen projector.
Experience the power and flexibility of the EB-PU2220B 20,000-lumen large venue laser projector, the world’s smallest and lightest 20,000-lumen projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.
The EB-PU2220B produces ultra bright, 20,000-lumen images and uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.
The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and the optional attachable PixAlignTM camera to streamline multi-projector setups.
The world's smallest and lightest 20,000-lumen projector
produces incredibly bright images from a light and compact body
Long-lasting laser light source
20,000-hour virtually maintenance-free laser light source
Incredible Color
Epson 3-chip 3LCD technology produces 20,000 lumens of equal white and color brightness
Simplified installation

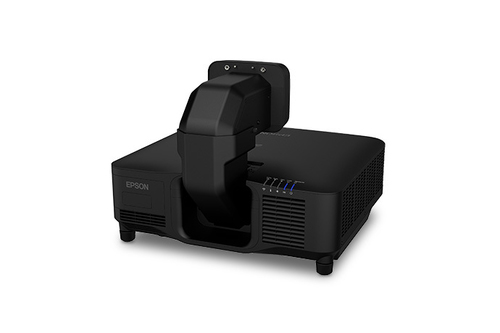

9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
WUXGA with 4K Enhancement
accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
Engineered for reliability
hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation
Ideal for live event applications — 3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
Outstanding image quality — high native contrast ratio produces deep blacks; frame interpolation delivers realistic, moving images; HDR support and scene adaptive gamma correction for true-to-life images
Fast installation — built-in NFC functionality and easy-to-use Android™ and iOS® mobile app, Epson Projector Configuration Tool (EPCT), to streamline multi-projector installations

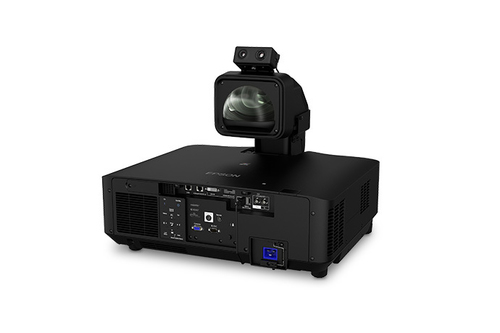

Optional attachable PixAlignTM camera — provides access to powerful features, including projector stacking assist function, tiling assist for edge blends, color calibration and screen matching

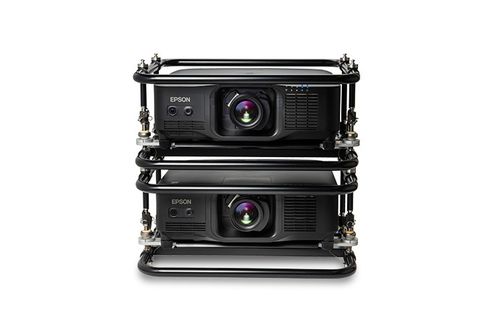

Simple Stacking function — quickly stack two projectors using a remote controller instead of conventional setup with a PC and router; requires optional attachable camera
Efficient setup — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT); easily manage your installed inventory using Epson Projector Management
Eco Features
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay® Transport Partner
Better Products for a Better Future™
Specifications
| Supported aspect ratios | 4:3, 16:10, 16:9 |
|---|---|
| Projector brightness | 20000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Uniformity | 85% |
| Keystone correction, horizontal | ±30° |
| Keystone correction, vertical | ±45° |
| Matrix type | 3-panel (p-Si TFT active) |
| White light output | 20000 ANSI lumens |
| Colour light output | 20000 ANSI lumens |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Focus | Auto |
|---|---|
| Focal length range | 14.8 – 17.7 |
| Aperture range (F-F) | 2 - 2.1 |
| Optical zoom | 1.6x |
| Throw ratio | 1.57 – 2.56 |
| Horizontal lens shift range | -18 - 18% |
| Vertical lens shift range | -60 - 60% |
| Number of optional lenses supported | 9 |
| Interchangeable lens | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 576, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
|---|---|
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160i, 2160p |
| HDMI connector type | Full-size |
|---|---|
| HDBaseT port | Yes |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 2 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| AC (power) in | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Noise level (economic mode) | 37 dB |
|---|---|
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
| HDCP version | 2.3 |
| Test patterns | Yes |
| Noise level | 45 dB |
| High Dynamic Range (HDR) supported | Yes |
| Password protection | Yes |
| Timeshift | Yes |
|---|
| Market positioning | Presentation |
|---|---|
| Product type | Large venue projector |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Power source | AC |
|---|---|
| Power consumption (typical) | 1301 W |
| Power consumption (standby) | 2 W |
| Power consumption (economy mode) | 899 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Width | 587 mm |
|---|---|
| Depth | 493 mm |
| Height | 218 mm |
| Weight | 24.4 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Warranty card | Yes |
| Packaging content | EB-PU2220B projector, power cable, remote control with two batteries, cable cover, user guide and warranty sheet |
| Compliance certificates | RoHS |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
