Epson EB-PU2116W Large venue projector 16000 ANSI lumens 3LCD WUXGA (1920x1200) White
Part number V11HA64920
EPSON HIGH BRIGHTNESS EB-PU2116W PROJECTOR, 16,000 LUMENS, WUXGA, WHITE
- 16,000 lumens white/color brightness
- WUXGA with 4K Enhancement
- 20,000-hour virtually maintenance-free laser light source
- Manufacturer
- Epson
- Part number
- V11HA64920
- Condition
- New
- 1GPA category
- Hardware
Overview

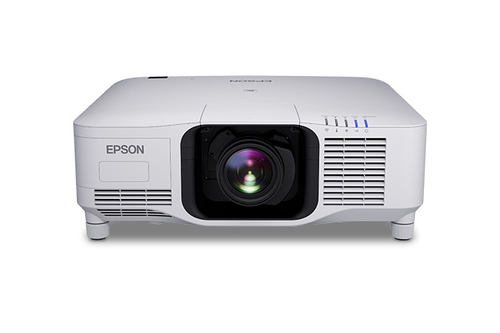

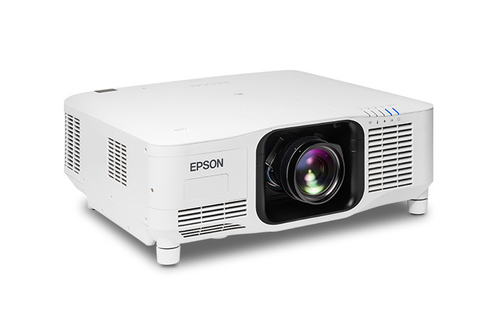

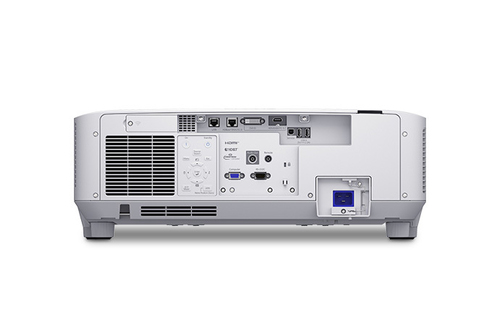

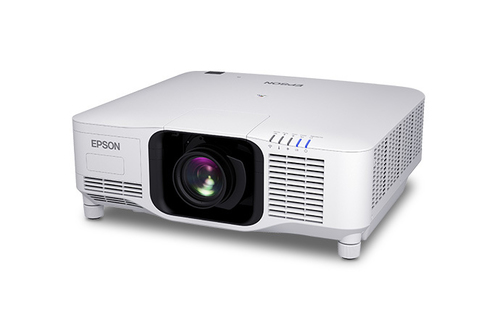

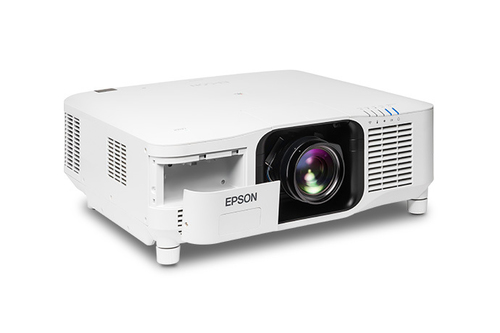

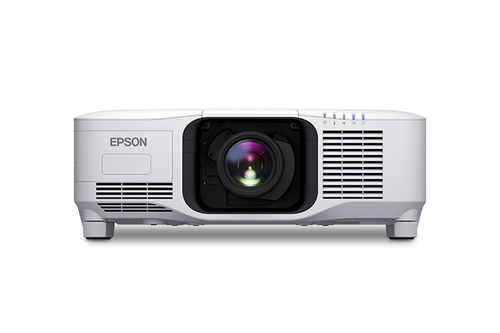

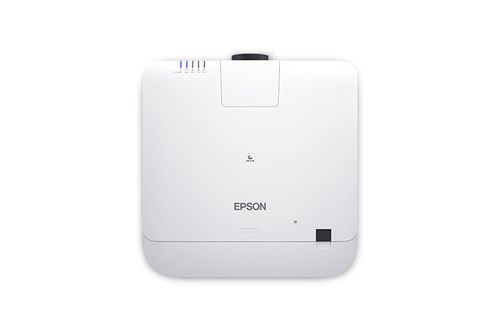

Experience the power and flexibility of the EB-PU2116W large venue laser projector. The compact EB-PU2116W produces ultra bright, 16,000-lumen images from a standard 120 V power source. And it features full HD WUXGA resolution with 4K Enhancement Technology for exceptional image quality.
The EB-PU2116W uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

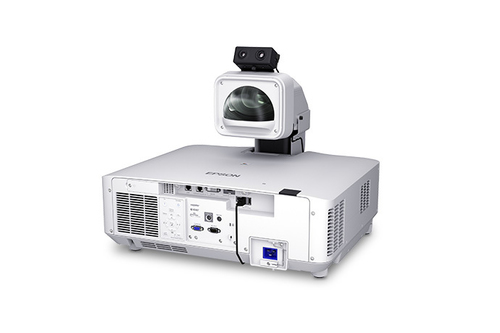

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation (sold separately) and includes a host of premium features for fast setup, such as built-in NFC functionality, and the optional attachable PixAlign camera to streamline multi-projector setups.
Incredible Color
Epson 3-chip 3LCD technology produces 16,000 lumens of equal white and color brightness from a standard 120 V power source
WUXGA with 4K Enhancement
Accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
Long-lasting laser light source
20,000-hour virtually maintenance-free laser light source
Simplified installation
9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
Engineered for reliability
Hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation
Outstanding image quality
High native contrast ratio produces deep blacks; frame interpolation delivers realistic moving images; HDR support and scene adaptive gamma correction for true-to-life images
Specifications
| Supported aspect ratios | 4:3, 16:10, 16:9 |
|---|---|
| Contrast ratio (dynamic) | 2500000:1 |
| Projector brightness | 16000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Uniformity | 85% |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 45° |
| Matrix type | 3-panel (p-Si TFT active) |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Focus | Manual |
|---|---|
| Focal length range | 14.8 – 17.7 |
| Aperture range (F-F) | 2 - 2.1 |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.57 – 2.56 |
| Horizontal lens shift range | 0 - 18% |
| Vertical lens shift range | 0 - 60% |
| Full HD | Yes |
|---|---|
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| HDBaseT port | Yes |
|---|---|
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| AC (power) in | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Noise level (economic mode) | 34 dB |
|---|---|
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
| Noise level | 38 dB |
| Built-in speaker(s) | Yes |
|---|
| Market positioning | Business |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Power source | AC/Battery |
|---|---|
| Power consumption (typical) | 1118 W |
| Power consumption (standby) | 2 W |
| Power consumption (max) | 1118 W |
| AC input voltage | 100 – 120 |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Width | 586 mm |
|---|---|
| Depth | 492 mm |
| Height | 185 mm |
| Weight | 24.3 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Number of batteries supported | 2 |
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | RoHS |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
