Epson EB-PU2120W Large venue projector 20000 ANSI lumens 3LCD WUXGA (1920x1200) White
Part number V11HA63920
EPSON HIGH BRIGHTNESS EB-PU2120W PROJECTOR, 20,000 LUMENS, WUXGA, WHITE
- World's smallest and lightest 20,000-lumen projector
- 20,000 lumens of equal white and color brightness
- WUXGA with 4K Enhancement
- Manufacturer
- Epson
- Part number
- V11HA63920
- Condition
- New
- 1GPA category
- Hardware
Overview
Experience the power and flexibility of the EB-PU2120W large venue laser projector. The world’s smallest and lightest 20,000-lumen projector, the compact EB-PU2120W features full HD WUXGA resolution with 4K Enhancement Technology to produce ultra bright images.
The EB-PU2120W uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

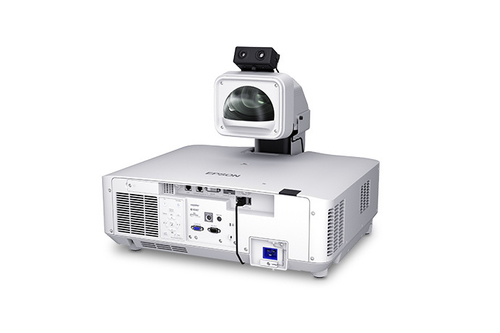

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and the optional attachable PixAlign camera to streamline multi-projector setups.
The world's smallest and lightest 20,000-lumen projector
produces incredibly bright images from a light and compact body
Incredible Color
Epson 3-chip 3LCD technology produces 20,000 lumens of equal white and color brightness
WUXGA with 4K Enhancement
accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
Long-lasting laser light source
20,000-hour virtually maintenance-free laser light source
Simplified installation
9 optional powered lenses (sold separately), including an ultra short-throw. 35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
Engineered for reliability
hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low-maintenance operation
Specifications
| Supported aspect ratios | 4:3, 16:10, 16:9 |
|---|---|
| Contrast ratio (dynamic) | 2500000:1 |
| Projector brightness | 20000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2500000:1 |
| Number of colours | 1.07 billion colours |
| Uniformity | 85% |
| Keystone correction, horizontal | 30° |
| Keystone correction, vertical | 45° |
| Matrix type | 3-panel (p-Si TFT active) |
| Light source type | Laser |
|---|---|
| Service life of light source | 20000 h |
| Focus | Manual |
|---|---|
| Focal length range | 14.8 – 17.7 |
| Aperture range (F-F) | 2 - 2.1 |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.57 – 2.56 |
| Horizontal lens shift range | 0 - 18% |
| Vertical lens shift range | 0 - 60% |
| Full HD | Yes |
|---|---|
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| HDBaseT port | Yes |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Serial interface type | RS-232C |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| AC (power) in | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Noise level (economic mode) | 37 dB |
|---|---|
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
| Noise level | 45 dB |
| Built-in speaker(s) | Yes |
|---|
| Market positioning | Business |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Power source | AC/Battery |
|---|---|
| Power consumption (typical) | 1301 W |
| Power consumption (standby) | 2 W |
| Power consumption (max) | 1301 W |
| AC input voltage | 220 – 240 |
| AC input frequency | 50 - 60 Hz |
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Width | 586 mm |
|---|---|
| Depth | 492 mm |
| Height | 185 mm |
| Weight | 24.4 kg |
| Remote control included | Yes |
|---|---|
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| Number of batteries supported | 2 |
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | RoHS |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
